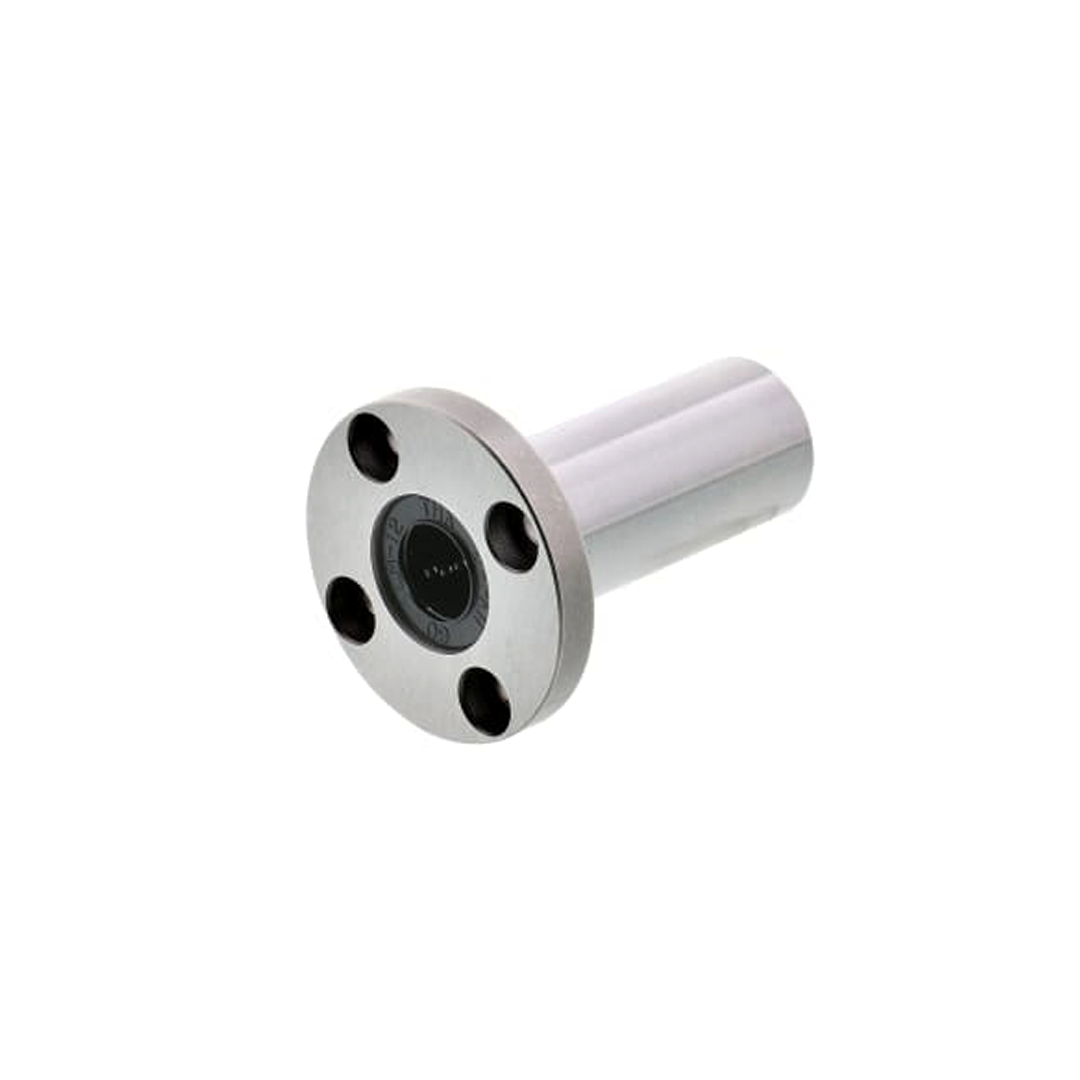

Linear Bushing LMF13LUU

Linear Bushing LMF13LUU

THK

กรุณาตรวจสอบสต็อกก่อนชำระเงิน

1,960.00 ฿

1,960.00 ฿

ลดราคา ขายหมดแล้ว

ปริมาณ

รายละเอียด Linear Bushing LMF13LUU

Note: Since this model contains a synthetic resin retainer, do not use it at temperature exceeding 80°.For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.
Model No.	Ball rows	Main dimensions											Flangeperpen-dicularity	Eccentricity(max)	Radial Clearance Tolerance	Basic load rating		Mass
		Inscribed bore diameter		Outer diameter		Overall length		Flange diameter		H	PCD	Mounting holed₁×d₂×h				Dynamic rating C	Static rating C₀
		dr	Tolerance	D	Tolerance	L	Tolerance	D₁	Tolerance	H	PCD	Mounting holed₁×d₂×h				Dynamic rating C	Static rating C₀
		mm		mm		mm		mm		mm	mm	mm	µm	µm	µm	N	N	g
LMF6L	4	6	0-0.010	12	0-0.013	35	0-0.2	28	0-0.2	5	20	3.4×6.5×3.3	15	15	–5	324	529	32
LMF8L	4	8		15	0-0.013	45		32		5	24	3.4×6.5×3.3	15	15	–5	431	784	53
LMF10L	4	10		19	0-0.016	55		39		6	29	4.5×8×4.4	15	15	–5	588	1100	105
LMF12L	4	12		21		57		42		6	32	4.5×8×4.4	15	15	–5	657	1200	100
LMF13L	4	13		23		61		43		6	33	4.5×8×4.4	15	15	–7	814	1570	130
LMF16L	5	16		28		70		48		6	38	4.5×8×4.4	15	15	–7	1230	2350	187
LMF20L	5	20	0-0.012	32	0-0.019	80		54		8	43	5.5×9.2×5.4	20	20	–9	1400	2750	260
LMF25L	6	25		40		112	0-0.3	62		8	51	5.5×9.2×5.4	20	20	–9	1560	3140	515
LMF30L	6	30		45		123		74		10	60	6.6×11×6.5	20	20	–9	2490	5490	655
LMF35L	6	35	0-0.015	52	0-0.022	135		82		10	67	6.6×11×6.5	25	25	–13	2650	6270	970
LMF40L	6	45		60		154		96	0-0.3	13	78	9×14×8.6	25	25	–13	3430	8040	1560
LMF50L	6	50		80		192		116		13	98	9×14×8.6	25	25	–13	6080	15900	3500
LMF60L	6	60	0-0.020	90	0-0.025	211		134		18	112	11×17.5×10.8	25	25	–13	7650	20000	4500
