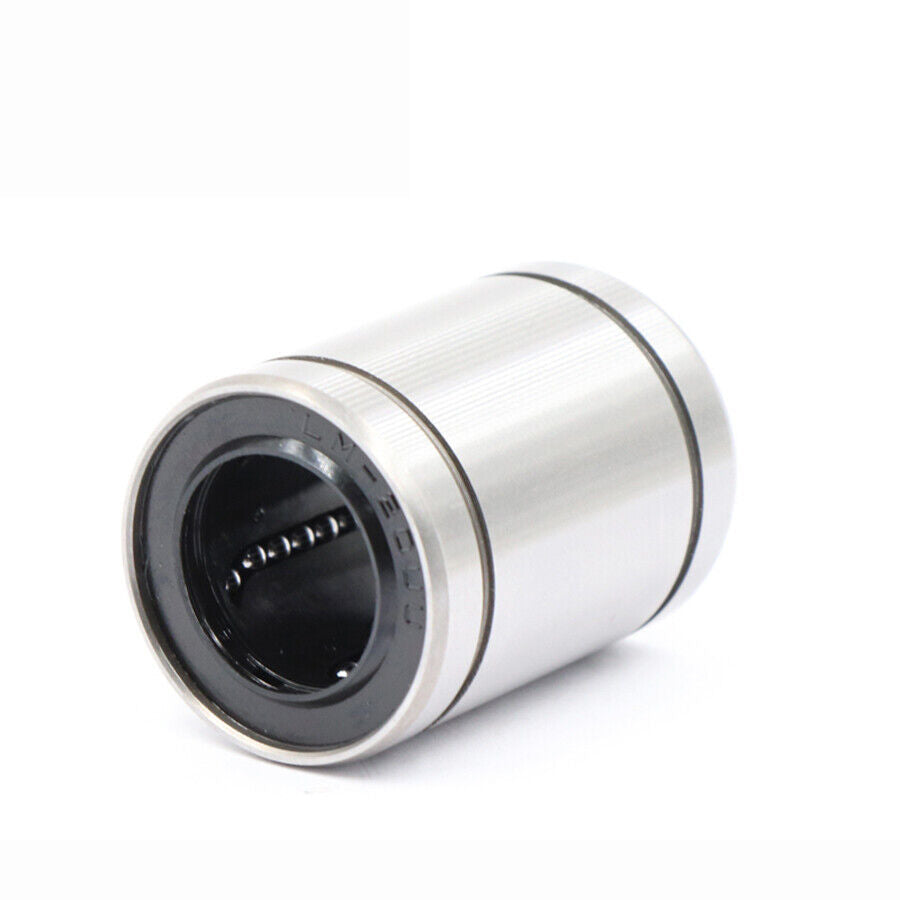

Linear Bushing LM10GAUU

Linear Bushing LM10GAUU

THK

กรุณาตรวจสอบสต็อกก่อนชำระเงิน

504.00 ฿

504.00 ฿

ลดราคา ขายหมดแล้ว

ปริมาณ

รายละเอียด Linear Bushing LM10GAUU

Model No.	Ball rows	Main dimensions										Greasingholed₀	Eccentricity(max)	Radial Clearance Tolerance	Basic load rating		Mass
		Inscribed bore diameter		Outer diameter		Length		L₁	Tolerance	L₂	D₀				Dynamic rating C	Static rating C₀
		dr	Tolerance	D	Tolerance	L	Tolerance	L₁	Tolerance	L₂	D₀				Dynamic rating C	Static rating C₀
		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	µm	µm	N	N	g
LM6GA	3	6	0-0.009	12	0-0.011	19	0-0.2	13.5	0-0.2	1.1	11.5	—	12	-5	206	265	8
LM8SGA	3	8		15		17		11.5		1.1	14.3	—	12	-5	176	225	11
LM8GA	3	8		15		24		17.5		1.1	14.3	—	12	-5	265	402	16
LM10GA	4	10		19	0-0.013	29		22		1.3	18	2	12	-5	373	549	30
LM12GA	4	12		21		30		23		1.3	20	2	12	-5	412	598	31.5
LM13GA	4	13		23		32		23		1.3	22	2	12	-7	510	775	43
LM16GA	4	16		28		37		26.5		1.6	27	2.3	12	-7	775	1180	69
LM20GA	5	20	0-0.010	32	0-0.016	42		30.5		1.6	30.5	2.3	15	-9	863	1370	87
LM25GA	5	25		40		59	0-0.3	41	0-0.3	1.85	38	3	15	-9	980	1570	220
LM30GA	6	30		45		64		44.5		1.85	43	3	15	-9	1570	2750	250
LM35GA	6	35	0-0.012	52	0-0.019	70		49.5		2.1	49	3	20	-13	1670	3140	390
LM38GA	6	38		57		76		58.5		2.1	54.5	3	20	-13	2160	4020	565
LM40GA	6	40		60		80		60.5		2.1	57	3	20	-13	2160	4020	585
LM50GA	6	50		80	0-0.022	100		74		2.6	76.5	4	20	-13	3820	7940	1580
LM60GA	6	60	0-0.015	90		110		85		3.15	86.5	4	25	-16	4710	10000	2000
LM80GA	6	80	0-0.015	120		140	0-0.4	105.5	0-0.4	4.15	116	4	25	-16	7350	16000	4520
LM100GA	6	100	0-0.020	150	0-0.025	175		125.5		4.15	145	4	30	-20	14100	34800	8600
LM120A	8	120	0-0.020	180	0-0.025	200		158.6		4.15	175	5	30	-25	16400	40000	15000
