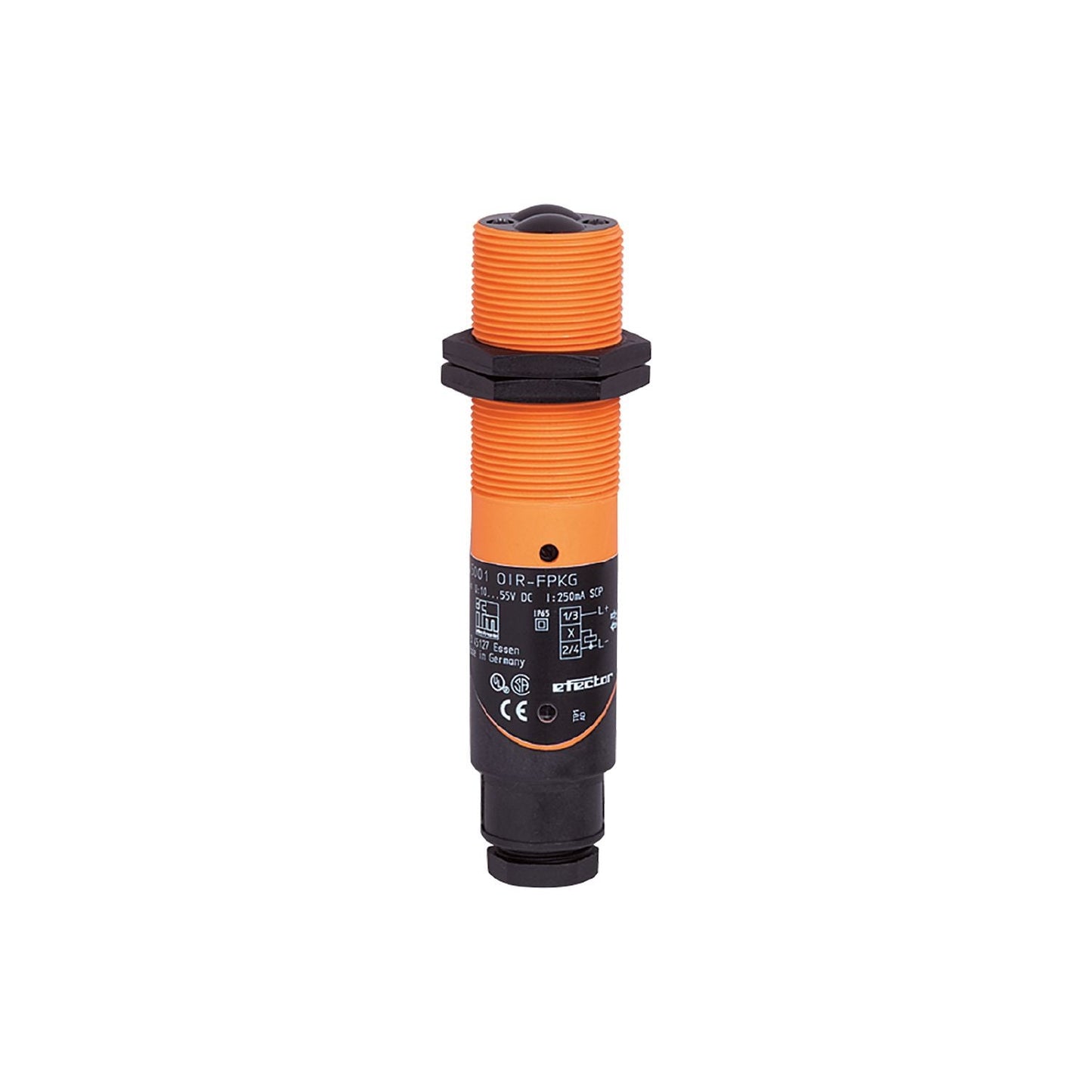

IFM OI0002 Diffuse reflection sensor

Very long range

With terminal chamber that can be rotated by 90°

Programmable light-on/dark-on mode

With combined AC/DC output and two-wire technology

Optional connection possibility for fibre optics

Type of light	infrared light
Housing	threaded type

Function principle	Diffuse reflection sensor

Output function	light-on/dark-on mode; (programmable)
Max. voltage drop switching output DC [V]	10.5
Max. voltage drop switching output AC [V]	10.5
Minimum load current [mA]	15
Max. leakage current [mA]	6
Permanent current rating of switching output AC [mA]	250; (350 (...50 °C))
Permanent current rating of switching output DC [mA]	250; (350 (...50 °C))
Short-time current rating of switching output [mA]	2200; (10 ms / 0,5 Hz)
Switching frequency AC [Hz]	25
Switching frequency DC [Hz]	35
Short-circuit proof	no
Overload protection	no

Range [mm]	3...700; (white paper 200 x 200 mm)
Range adjustable	yes
Max. light spot diameter [mm]	122
Light spot dimensions refer to	at maximum range

Ambient temperature [°C]	-25...80
Protection	IP 65

EMC	EN 60947-5-2
MTTF [years]	309

Weight [g]	127
Housing	threaded type
Dimensions [mm]	M30 x 1.5 / L = 125
Thread designation	M30 x 1.5
Materials	PBT; PPO modified
Lens material	PMMA

Display	switching status 1 x LED, yellow

Remarks	Recommendation: Check the safe functioning of the unit after a short circuit.
Pack quantity	1 pcs.
