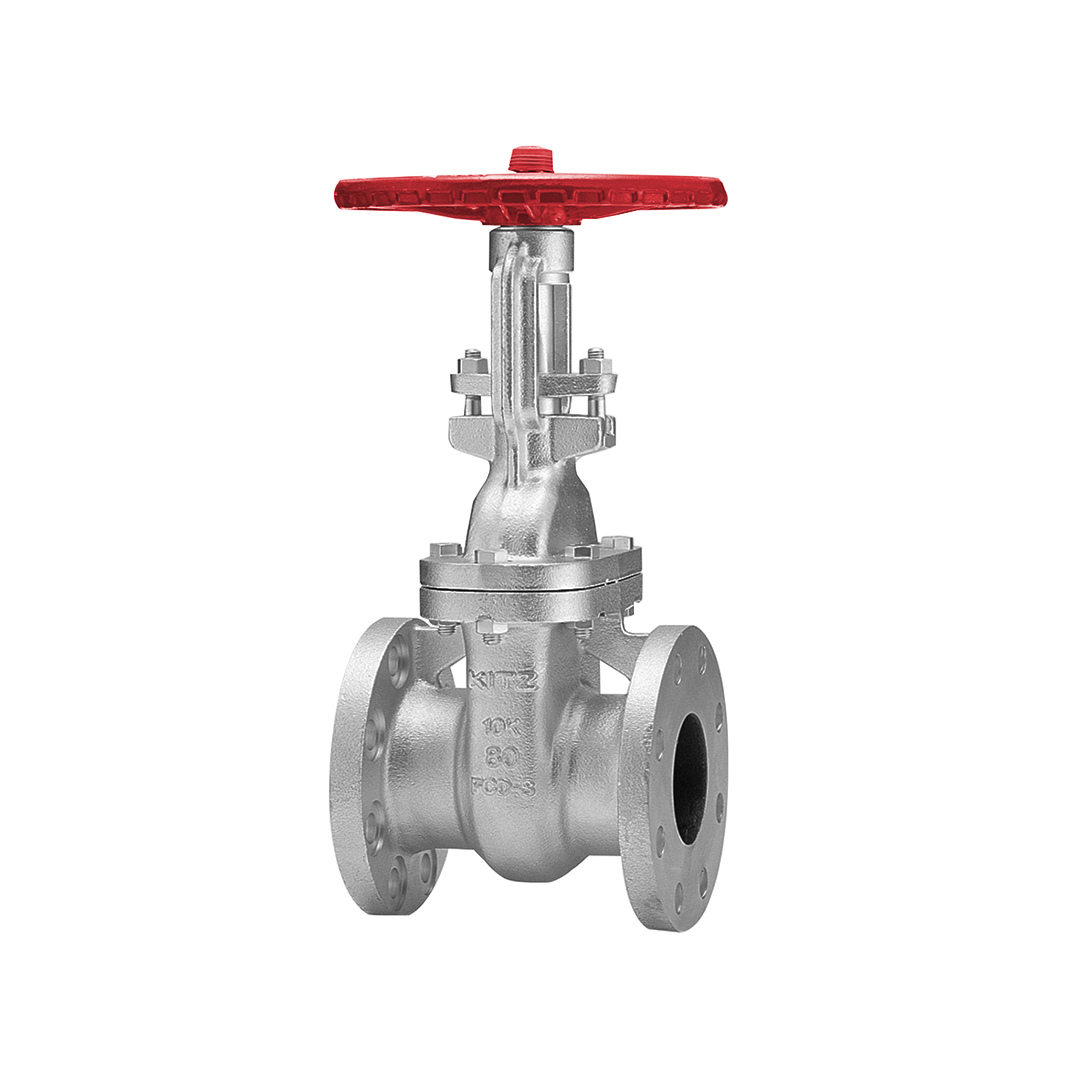

Gate Valve KITZ 1.5 นิ้ว ( 40 มม. ) รุ่น 10SMBOF Ductile Iron ( เกทวาล์ว KITZ )

Use for lubricating or hydraulic oil is acceptable. Contact KITZ Corporation for texhnial advice, if valves are used as heat transfer media

Bolting materials will be changed for servicing high temperature exceeding 225°C. Contact KITZ Corporation for detailed information.

เกทวาล์ว KITZ รุ่น: 10SMBOF

120°C Static water 1.4MPa
220°C Steam, air, gas, oil 1.2 MPa
300°C Steam, air, gas, oil 1.0MPa

Materials

Parts	JIS Material
Body	FCD-S
Bonnet	FCD-S
Stem	SUS403
Disc	SUS403 / SCS1 (40~200) A105 + 13 Cr (250) SCPH2 + 13Cr (300~500)
Body seat ring	SUS403
Gland	FCD-S (400 & 500:SUS403)
Gland packing	Non-asbestos Packing (50~300) FLexible Graphite Braided Packing (350~500)
Handwheel	FCD400 ( 40 ~ 300) FCD400-15 (250~500)
Bonnet bolt/nut	Carbon Steel
Gland bolt/nut	Carbon Steel
Yoke sleeve	C6782BE(40~150) CAC302(200~300) CAC406(350 & 450) Ductile Packing (350 ~ 500)
Yoke	FCD-S
Gasket	Stainless Foil inserted Flexible Graphite
Name plate	A1050P

ขนาด เกทวาล์ว KITZ รุ่น 10SMBOF

Valve Size	NPS	1.5 นิ้ว
	DN	40 มม.
L		165 มม.
H		300 มม.
D		160 มม.
