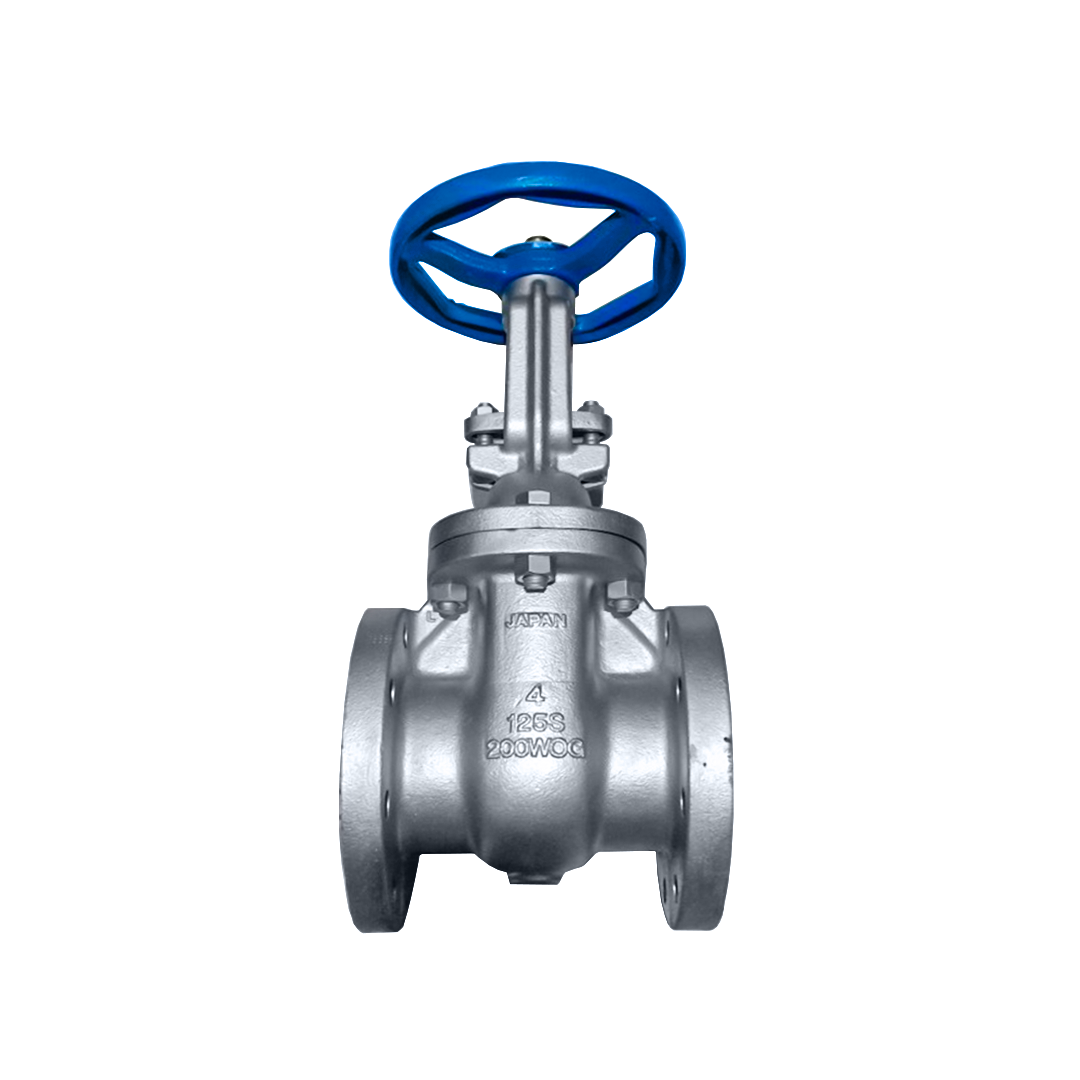

Gate Valve KITZ 8 นิ้ว ( 200 มม. ) รุ่น 10FCLS Cast Iron (เกทวาล์ว KITZ)

เกทวาล์ว KITZ รุ่น: 10FCLS

120°C Non-shock water 1.37 MPa, 120°C Water, oil, air 0.98 MPa 120°C Gas 0.20 MPa, Saturated steam 0.69 MPa (Refer to Page 2 for size 14' to 24')

Materials

Parts		Material	JIS Spec.
Body		Cast Iron	FC200
Bonnet		Cast Iron	FC200
Stem		Brass/Stainless Steel	SUS403
Disc		Cast Iron	FC200
Disc seat ring		Brass/Stainless Steel	SUS403
Body seat ring		Bronze	SUS403
Glad	1.5 to 14	Ductile Iron	FCD-S
	16 to 24	Stainless Steel	SUS403
Gland Packing		Asbestos-free
Gasket		Asbestos-free
Gland bolt/nut		Carbon Steel	SS400
Bonnet bolt/nut		Carbon Steel	SS400
Yoke sleeve		Bronze	CAC406
Hand wheel	1.5 to 8	Cast Iron	FC250
	10 to 24	Ductile Iron	FCD400

ขนาด เกทวาล์ว KITZ รุ่น 10FCLS
