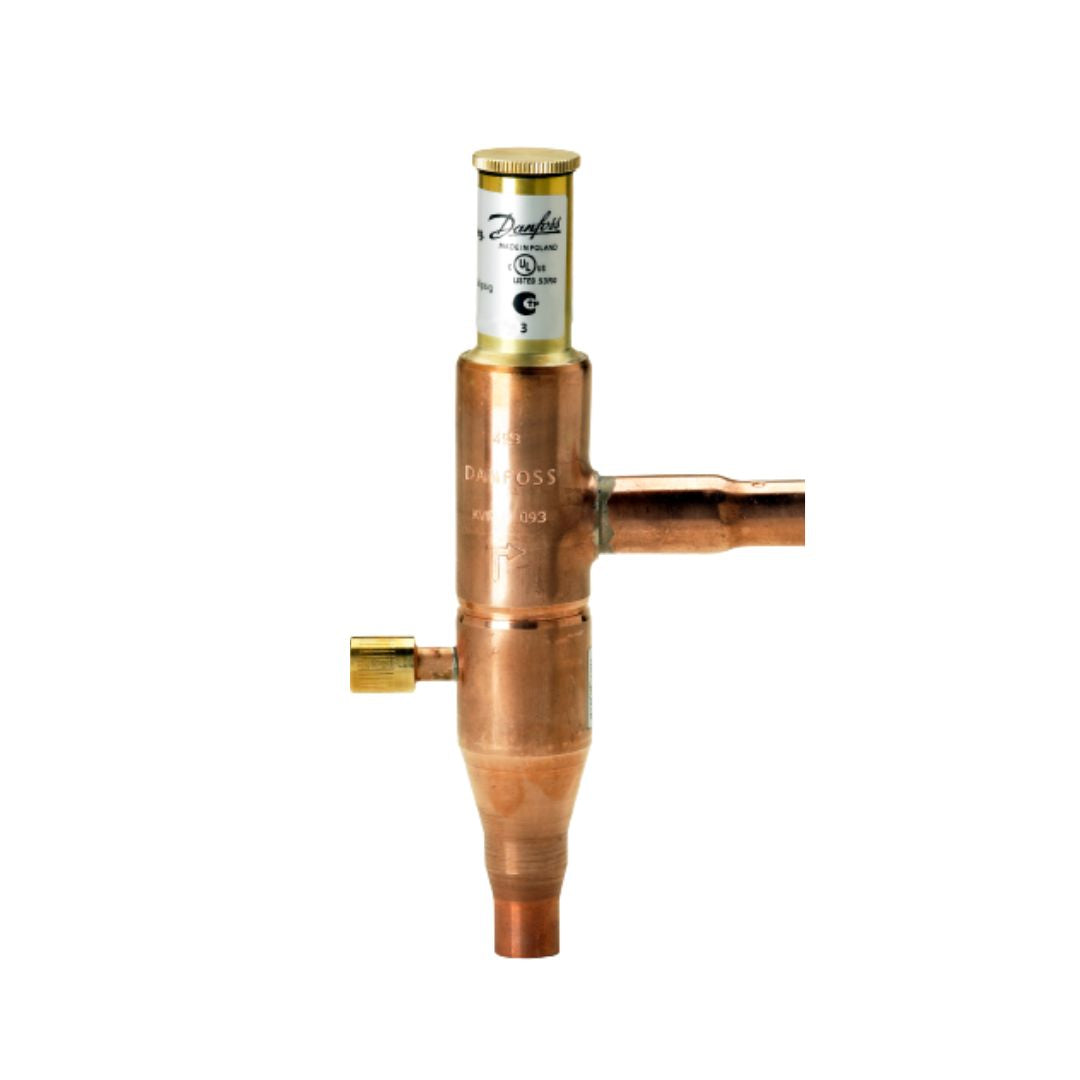

Crankcase Pressure Regulator Danfoss KVR 22 Connection 7/8 lnch Code 034L0094
Crankcase Pressure Regulator Danfoss KVR 22 Connection 7/8 lnch Code 034L0094
Danfoss
กรุณาตรวจสอบสต็อกก่อนชำระเงินราคาปกติ
18,508.82 ฿
ราคาปกติ
ราคาโปรโมชัน
18,508.82 ฿
ราคาต่อหน่วย
ต่อ
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
รายละเอียด Crankcase Pressure Regulator Danfoss KVR 22 Connection 7/8 lnch Code 034L0094
Data Sheets :
Product details
| Gross weight | 0.414 Kg |
| Net weight | 0.369 Kg |
| Volume | 1.134 Liter |
| EAN | 5702428411615 |
| Approval | C UL US LISTED EAC LLC CDC TYSK RoHS RoHS China |
| Approval file name | REFRIGERANT VALVE 53R0 |
| Equipment | Schrader valve access port |
| Factory setting [bar] | 10 bar |
| Factory setting [psig] | 145 psig |
| Flow direction indicator | Engraved 1-way arrow |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 7/8 in |
| Inlet size [mm] | 22 mm |
| Lubricants compatibility | Oilfree applications |
| Max. test pressure [bar] | 31 bar |
| Max. test pressure [psig] | 450 psig |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 406 psig |
| Medium temperature range [°C] [max] | 130 °C |
| Medium temperature range [°C] [min] | -45 °C |
| Medium temperature range [°F] [max] | 266 °F |
| Medium temperature range [°F] [min] | -49 °F |
| Oil free refrigerants | R1234ze(E) R513A |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 7/8 in |
| Outlet size [mm] | 22 mm |
| P band max. [bar] | 6.2 bar |
| P band max. [psi] | 90 psi |
| Packing format | Multi pack |
| Product accessories | No |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Condensing pressure regulator |
| Quantity per packing format | 12 pc |
| Rated cap. conditions [IMP] | Delta p hotgas=6 psi tevap=40 °F Delta p liquid=3 psi tcond=110 °F |
| Rated cap. conditions [SI] | Delta p hotgas=0.4 bar tevap=-10 °C Delta p liquid=0.2 bar Offset=3 bar tcond=30 °C |
| Rated cap. R134a, Hot gas [kW] | 11.6 kW |
| Rated cap. R134a, Hot gas [TR] | 3.03 TR |
| Rated cap. R22, Hot gas [kW] | 13.2 kW |
| Rated cap. R22, Hot gas [TR] | 4.13 TR |
| Rated cap. R404A/R507A [kW] | 36.6 kW |
| Rated cap. R404A/R507A [TR] | 8.2 TR |
| Rated cap. R407C, Hot gas [kW] | 14.3 kW |
| Rated cap. R407C, Hot gas [TR] | 4.5 TR |
| Rated cap.R404A/R507,Hot gas[k | 12 kW |
| Rated cap.R404A/R507,Hot gas[T | 3.27 TR |
| Rated capacity R134a [kW] | 47.3 kW |
| Rated capacity R134a [TR] | 11.8 TR |
| Rated capacity R22 [kW] | 50.4 kW |
| Rated capacity R22 [TR] | 12.7 TR |
| Rated capacity R407C [kW] | 54.4 kW |
| Rated capacity R407C [TR] | 13.8 TR |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1270,R134a,R22,R290,R404A R407A,R407C,R407F,R422B,R422D R448A,R449A,R450A,R452A,R507A R513A,R600,R600a,R407H,R449B R454C,R455A,R515B,R516A,R1234yf R454A,R1234ze(E) |
| Regulation range [bar] [max] | 17.5 bar |
| Regulation range [bar] [min] | 5 bar |
| Regulation range [psig] Pe [max] | 254 psig |
| Regulation range [psig] Pe [min] | 73 psig |
| SCIP dossier no. | 842c526f-b213-4baa-869c-a91bb999a318 |
| Serviceable | KV valves spare parts |
| Type | KVR 22 |
| UL approved refrigerants | R134a,R22,R404A,R407A,R407C R407F,R407H,R422B,R422D,R448A R449A,R449B,R450A,R452A,R507A R513A,R407H,R449B,R454C R455A,R515B,R516A,R454A |
