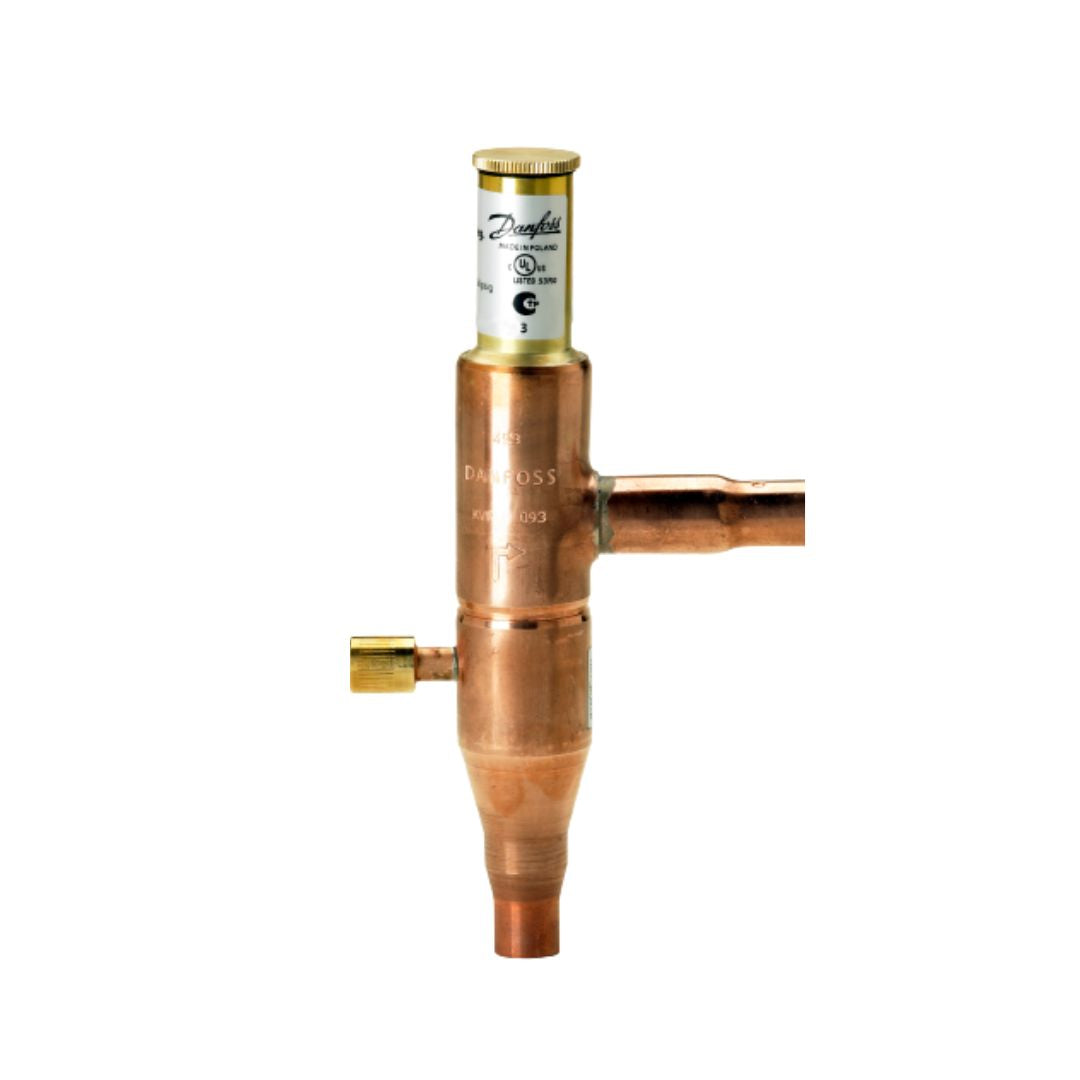

Crankcase Pressure Regulator Danfoss KVL 28 Connection 1 1/8 lnch Code 034L0046
Crankcase Pressure Regulator Danfoss KVL 28 Connection 1 1/8 lnch Code 034L0046
Danfoss
กรุณาตรวจสอบสต็อกก่อนชำระเงินราคาปกติ
22,301.46 ฿
ราคาปกติ
ราคาโปรโมชัน
22,301.46 ฿
ราคาต่อหน่วย
ต่อ
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
รายละเอียด Crankcase Pressure Regulator Danfoss KVL 28 Connection 1 1/8 lnch Code 034L0046
Data Sheets :
Product details
| Gross weight | 1.014 Kg |
| Net weight | 0.924 Kg |
| Volume | 0.306 Liter |
| EAN | 5702428411745 |
| Approval | C UL US LISTED EAC LLC CDC TYSK RoHS RoHS China |
| Approval file name | REFRIGERANT VALVE 53R0 |
| Cv value [gal/min] | 9.25 gal/min |
| Factory setting [bar] | 2 bar |
| Factory setting [psig] | 29 psig |
| Flow direction indicator | Engraved 1-way arrow |
| Identical product | 034L1066 |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 1 1/8 in |
| Kv value [m³/h] | 8 m³/h |
| Lubricants compatibility | Oilfree applications |
| Max. test pressure [bar] | 19.8 bar |
| Max. test pressure [psig] | 286 psig |
| Max. Working Pressure [bar] | 18 bar |
| Max. Working Pressure [psig] | 260 psig |
| Medium temperature range [°C] [max] | 130 °C |
| Medium temperature range [°C] [min] | -60 °C |
| Medium temperature range [°F] [max] | 266 °F |
| Medium temperature range [°F] [min] | -76 °F |
| Oil free refrigerants | R1234ze(E) R513A |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 1 1/8 in |
| P band max. [bar] | 1.5 bar |
| P band max. [psi] | 22 psi |
| Packing format | Multi pack |
| Product accessories | No |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Crankcase pressure regulator |
| Quantity per packing format | 7 pc |
| Rated cap. R404A/R507A [kW] | 15.9 kW |
| Rated cap. R404A/R507A [TR] | 3.4 TR |
| Rated capacity R134a [kW] | 13.2 kW |
| Rated capacity R134a [TR] | 2.6 TR |
| Rated capacity R22 [kW] | 17.8 kW |
| Rated capacity R22 [TR] | 4.1 TR |
| Rated capacity R407C [kW] | 16.4 kW |
| Rated capacity R407C [TR] | 3.8 TR |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a,R22,R404A,R407A,R407C R407F,R407H,R422B,R422D,R448A R449A,R449B,R450A,R452A,R507A R513A,R407H,R449B,R454C R455A,R515B,R516A,R454A |
| Regulation range [bar] [max] | 6 bar |
| Regulation range [bar] [min] | 0.2 bar |
| Regulation range [psig] Pe [max] | 87 psig |
| Regulation range [psig] Pe [min] | 3 psig |
| SCIP dossier no. | 842c526f-b213-4baa-869c-a91bb999a318 |
| Serviceable | KV valves spare parts |
| Type | KVL 28 |
| UL approved refrigerants | R134a,R22,R404A,R407A,R407C R407F,R407H,R422B,R422D,R448A R449A,R449B,R450A,R452A,R507A R513A,R515B,R516A |
