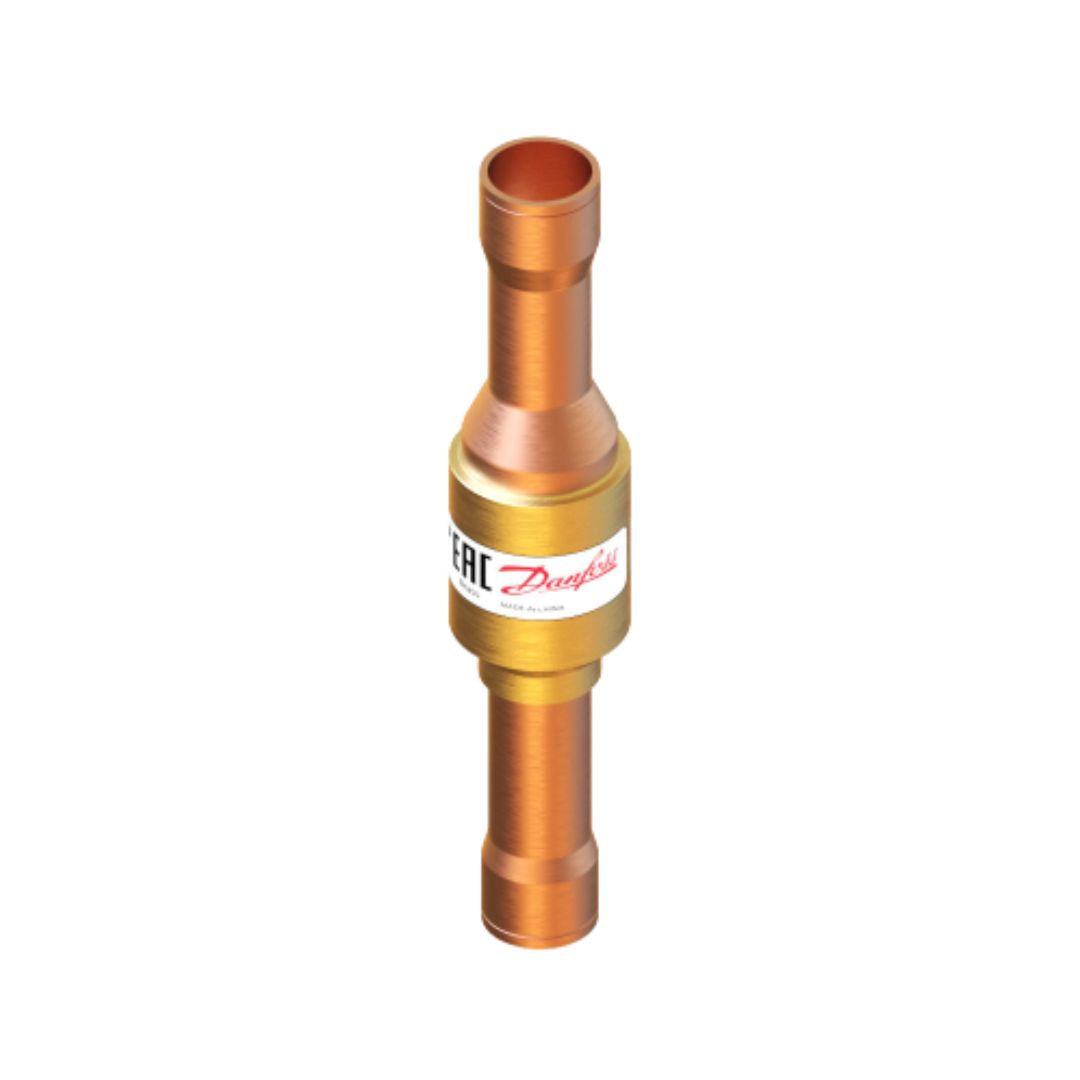

Check Valve NRV Danfoss 6s, Max. Working Pressure 49 bar Connection 3/8 lnch Code 020B1057
Check Valve NRV Danfoss 6s, Max. Working Pressure 49 bar Connection 3/8 lnch Code 020B1057
DANFOSS
กรุณาตรวจสอบสต็อกก่อนชำระเงินราคาปกติ
1,467.00 ฿
ราคาปกติ
ราคาโปรโมชัน
1,467.00 ฿
ราคาต่อหน่วย
ต่อ
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
รายละเอียด Check Valve NRV Danfoss 6s, Max. Working Pressure 49 bar Connection 3/8 lnch Code 020B1057
Data Sheets :
Product details
| Gross weight | 0.062 Kg |
| Net weight | 0.053 Kg |
| Volume | 0.147 Liter |
| EAN | 5702428291224 |
| Approval | C UL US LISTED EAC LLC CDC EURO-TYSK |
| Body material | Brass |
| Connection material | Copper |
| Cv value [gal/min] | 1.8 gal/min |
| Design | Piston |
| Direction | Straightway |
| EN13463-3 ignit. source assess | Yes |
| Flow direction | Single-flow |
| Flow direction indicator | On product label |
| Fluid Group | 1 2 |
| Identical product | 020B1168 |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 3/8 in |
| Kv value [m³/h] | 1.56 m³/h |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 49 bar |
| Max. Working Pressure [psig] | 710 psig |
| Min. Pressure drop [bar] | 0.07 bar |
| Min. Pressure drop [psi] | 1 psi |
| MinODP [bar] | 0.04 bar |
| MinODP [psi] | 0.58 psi |
| Oil free refrigerants | R1234ze(E) R134a R513A R515B R516A |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 3/8 in |
| Packing format | Multi pack |
| PED category | Art. 4, par. 3 |
| Product group | Check valves |
| Product Name Description | Check valve |
| Quantity per packing format | 25 pc |
| Rated cap cond, Hot gas [IMP] | tcond=86 °F tdisc=176 °F tevap=14 °F thotgas=140 °F tsub=9 °F |
| Rated cap cond, Hot gas [SI] | tcond=30 °C tdisc=80 °C tevap=-10 °C thotgas=60 °C tsub=5K |
| Rated cap cond, Liq. cap [IMP] | tcond=86 °F tevap=14 °F tsub=9 °F |
| Rated cap cond, Liq. cap [SI] | tcond=30 °C tevap=-10 °C tsub=5K |
| Refrigerants | R1234yf,R1234ze(E),R1270 R134a,R22/R407C,R290,R32,R407A R407F,R407H,R410A,R448A,R449A R449B,R450A,R452A,R452B,R454B R454C,R455A,R513A,R515B,R516A R600,R600a,R454A,R404A/R507A,R170 |
| Temperature range [°C] [max] | 155 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 311 °F |
| Temperature range [°F] [min] | -58 °F |
| Type | NRV 10s |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL approved refrigerants | R1233zd(E),R134a,R22,R404A R407A,R407C,R407F,R407H R410A,R448A,R449A,R449B R450A,R452A,R507A,R513A R515B,R516A,R1234yf,R1234ze(E) R1270,R170,R290,R32,R452B R454A,R454B,R454C,R455A R600,R600a |
