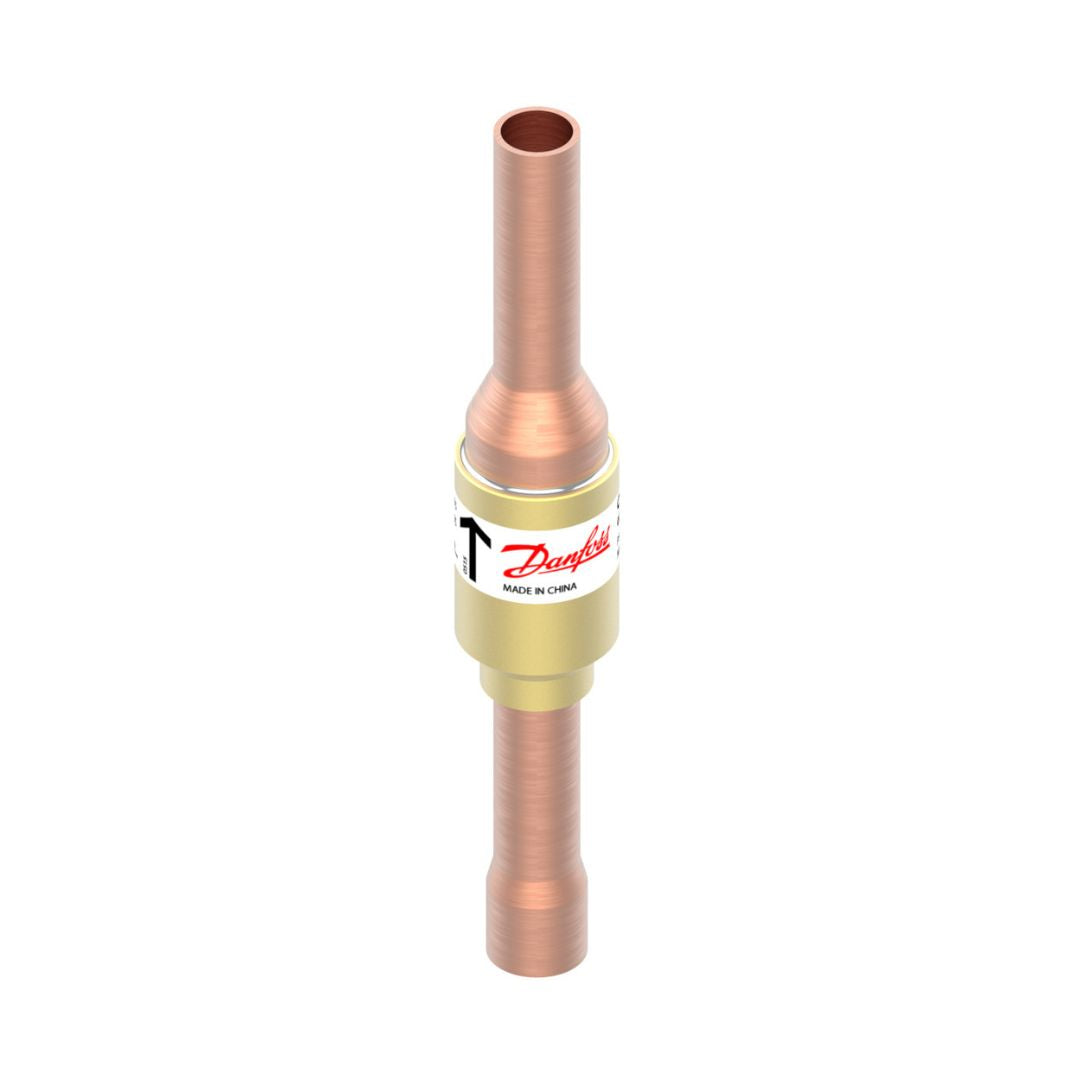

Check Valve Danfoss NRV 6s, Max. Working Pressure 49 bar Connection 1/4 lnch Code 020B1010
Check Valve Danfoss NRV 6s, Max. Working Pressure 49 bar Connection 1/4 lnch Code 020B1010
Danfoss
กรุณาตรวจสอบสต็อกก่อนชำระเงินราคาปกติ
421.97 ฿
ราคาปกติ
ราคาโปรโมชัน
421.97 ฿
ราคาต่อหน่วย
ต่อ
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
รายละเอียด Check Valve Danfoss NRV 6s, Max. Working Pressure 49 bar Connection 1/4 lnch Code 020B1010
Data Sheets :
Product details
| Gross weight | 1.478 Kg |
| Net weight | 1.303 Kg |
| Volume | 3.41 Liter |
| EAN | 5702422116080 |
| Approval | C UL US LISTED EAC |
| Body material | Brass |
| Connection material | Copper |
| Connection notes | Oversize |
| Cv value [gal/min] | 19.07 gal/min |
| Design | Piston |
| Direction | Angleway |
| Flow direction | Single-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 2 |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 1 3/8 in |
| Inlet size [mm] | 35 mm |
| Kv value [m³/h] | 16.5 m³/h |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Min. Pressure drop [bar] | 0.04 bar |
| Min. Pressure drop [psi] | 0.6 psi |
| Oil free refrigerants | R1234ze(E) R134a R513A R515B |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 1 3/8 in |
| Outlet size [mm] | 35 mm |
| Packing format | Multi pack |
| PED category | Art. 4, par. 3 |
| Product group | Check valves |
| Product Name Description | Check valve |
| Quantity per packing format | 6 pc |
| Rated cap cond, Hot gas [IMP] | tcond=86 °F tdisc=176 °F tevap=14 °F thotgas=140 °F tsub=9 °F |
| Rated cap cond, Hot gas [SI] | tcond=30 °C tdisc=80 °C tevap=-10 °C thotgas=60 °C sub=5K |
| Rated cap cond, Liq. cap [IMP] | tcond=86 °F tevap=14 °F tsub=9 °F |
| Rated cap cond, Liq. cap [SI] | tcond=30 °C tevap=-10 °C tsub=5K |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a,R22/R407C,R407A,R407F R410A,R448A,R449A,R450A,R452A R513A,R1234ze(E),R404A/R507A R1233zd(E),R1234yf,R1270,R290 R407H,R449B,R452B,R454A,R454B R454C,R455A,R515B,R516A,R600 R600a,R32,R170 |
| SCIP dossier no. | b3a34751-5701-488e-98f4-24be945efdc1 |
| Temperature range [°C] [max] | 140 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 285 °F |
| Temperature range [°F] [min] | -58 °F |
| Type | NRV 28s |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL approved refrigerants | R134a,R22,R404A,R407A,R407C R407F,R410A,R448A,R449A,R450A R452A,R507A,R513A,R1233zd(E) R1234yf,R1234ze(E),R1270,R170 R290,R32,R407H,R449BR452B,R454A R454B,R454C,R455A,R515B,R516A R600,R600a |
