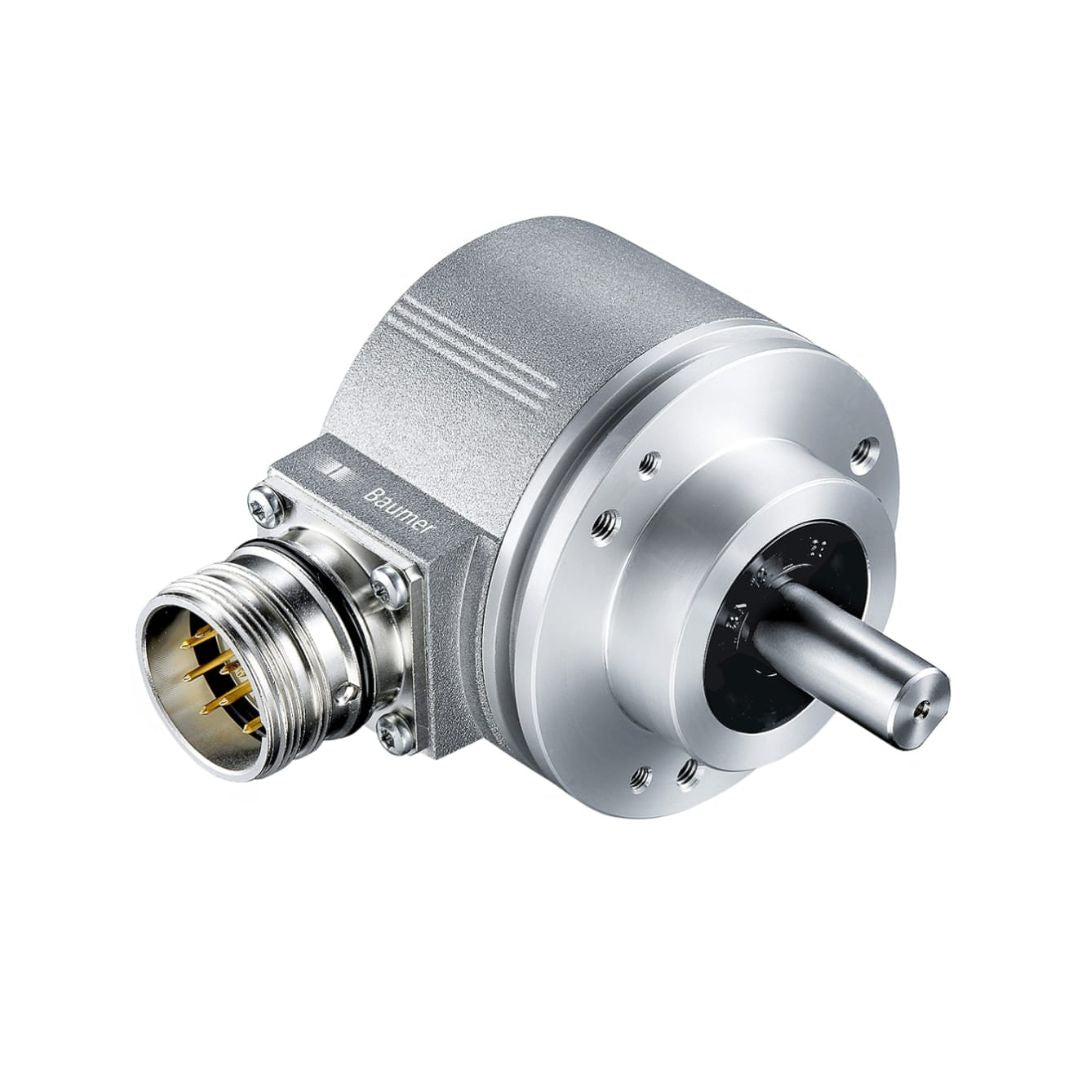

Encoder Baumer EIL580-SC10.5FN.00512.A,Optical Incremental Encoder

Name: Encoder Baumer EIL580-SC10.5FN.00512.A,Optical Incremental Encoder
Brand: BAUMER
Price: 7961.95 THB
Availability: InStock

BAUMER

7,961.95 ฿

ลดราคา ขายหมดแล้ว

ปริมาณ

รายละเอียด Encoder Baumer EIL580-SC10.5FN.00512.A,Optical Incremental Encoder

Encoder Technology	Optical
Pulses Per Revolution	512
Maximum Revolutions	12000rpm
Output Signal Type	HTL/Push Pull
Shaft Type	Solid
Shaft Diameter	10mm
Supply Voltage	8 → 30 V dc
IP Rating	IP65
Overall Width	58mm
Minimum Operating Temperature	-40°C
Mounting Type	Clamping Flange
Maximum Operating Temperature	+85°C
Series	EIL580
Connection Type	Flange connector M23
Switching Frequency	≤160 kHz, ≤300 kHz
