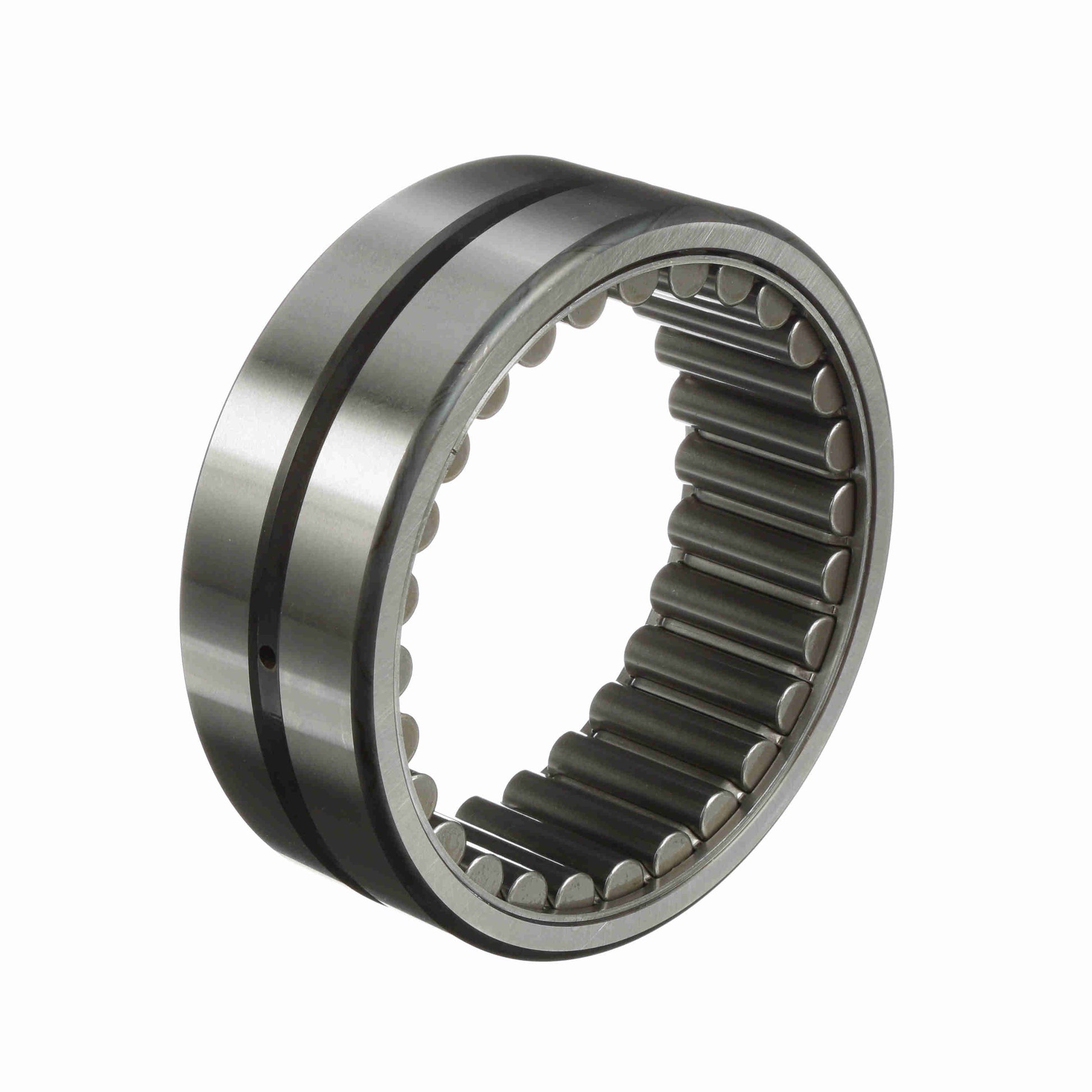

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 80
General Specifications
| UPC: | 726166064563 | Weight: | 6.53 LB |
| Packaged Length: | 7.5 Inches | Packaged Width: | 7.4 Inches |
| Packaged Height: | 2.6 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 2.25 | Bore Size - Inch: | 5 in |
| Outside Diameter - Inch: | 6.5 in | Housing & Shaft Fillet (in): | 0.1 in |
| Hole Diameter: | 0.188 |
Technical Specifications
| Material: | 52100 Bearing Steel | Series: | Standard |
| Includes Inner Ring: | No | Cage Material: | Steel |
| Radial Clearance: | Normal | Rolling Element: | Needle Roller |
| Number of Rows: | 1 | Misalignment: | No |
| Bore Type: | Straight | Seal Type: | Unsealed |
| Platform: | Cagerol Bearing | Static Load Rating (lb): | 148,000 lb |
| Full Complement/Caged: | Caged | Sealed: | None |
| Speed (Max) Oil: | 2,400 | Duplexing: | No |
| Speed (Max) Grease: | 1,200 | Dynamic Load Rating: | 64,600 |
| Precision Rating: | RBEC-1 | Flanges: | No flange |
| Lubrication Hole Type: | Lubrication groove and hole | Operating Temperature Range: | -20 to 250 °F |
| Related Inner Ring: | MI 64, MI 68 | Component Type: | Outer race only |
| Separable: | Nonseparable | Enclosure: | Open |
| Retainer: | Yes |
