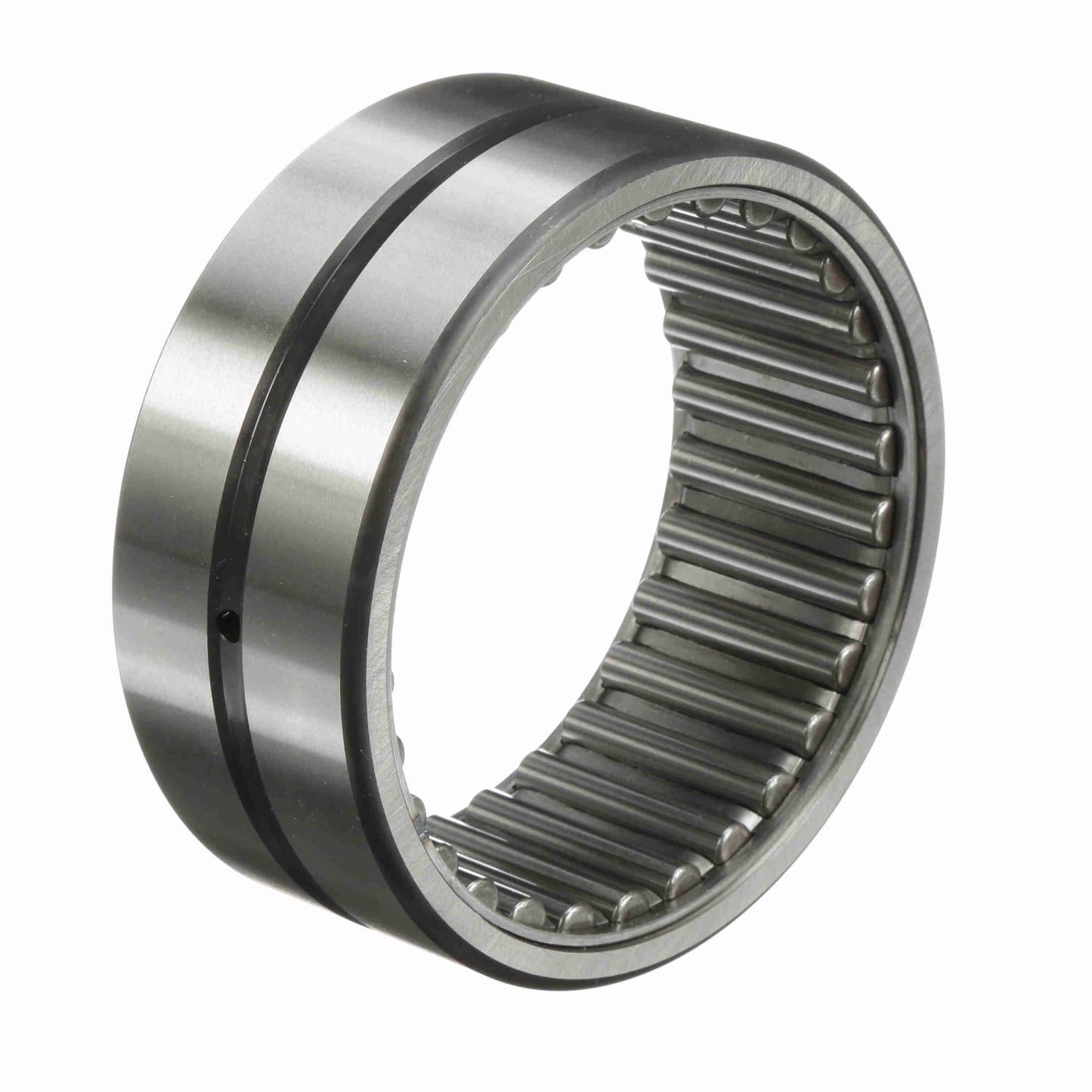

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 64
General Specifications
| UPC: | 726166064426 | Weight: | 3.03 LB |
| Packaged Length: | 5.68 Inches | Packaged Width: | 2.12 Inches |
| Packaged Height: | 5.75 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 2 | Housing & Shaft Fillet (in): | 0.1 in |
| Outside Diameter - Inch: | 5 in | Bore Size - Inch: | 4 in |
| Hole Diameter: | 0.188 |
Technical Specifications
| Series: | Standard | Includes Inner Ring: | No |
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Misalignment: | No | Bore Type: | Straight |
| Rolling Element: | Needle Roller | Seal Type: | Unsealed |
| Radial Clearance: | Normal | Number of Rows: | 1 |
| Full Complement/Caged: | Caged | Platform: | Cagerol Bearing |
| Sealed: | None | Speed (Max) Oil: | 3,000 |
| Speed (Max) Grease: | 1,500 | Dynamic Load Rating: | 38,000 |
| Duplexing: | No | Static Load Rating (lb): | 93,800 lb |
| Precision Rating: | RBEC-1 | Operating Temperature Range: | -20 to 250 °F |
| Related Inner Ring: | MI 56 | Flanges: | No Flanges |
| Lubrication Hole Type: | Lubrication Groove & Hole | Standard Met: | ABMA, ISO |
| Separable: | Nonseparable | Enclosure: | Open |
| Component Type: | Outer race only | Retainer: | Yes |
