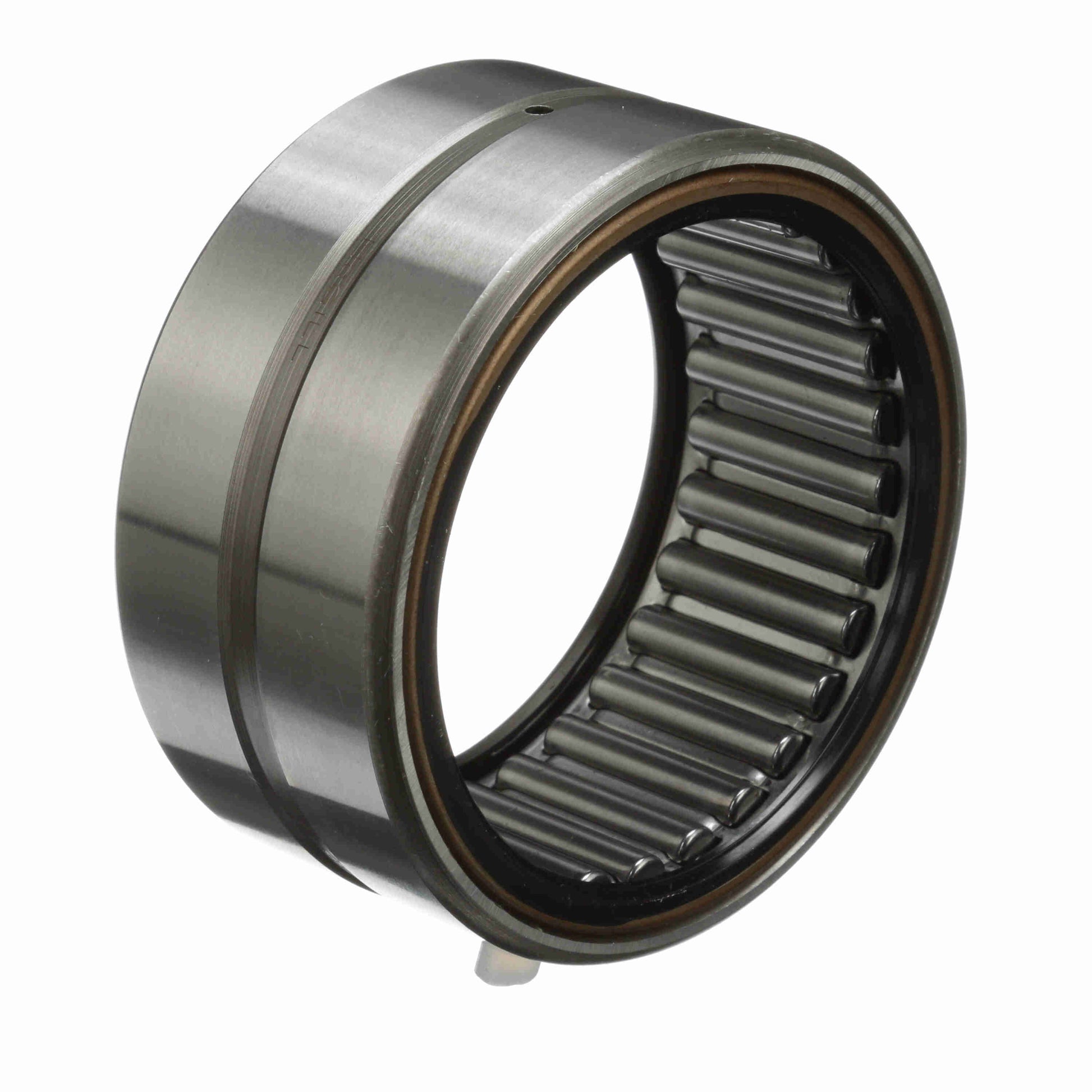

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 48 SS PD
General Specifications
| UPC: | 726166068073 | Weight: | 1.35 LB |
| Packaged Length: | 3.87 Inches | Packaged Width: | 1.87 Inches |
| Packaged Height: | 3.87 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.75 | Housing & Shaft Fillet (in): | 0.08 in |
| Bore Size - Inch: | 3 in | Outside Diameter - Inch: | 3.75 in |
| Hole Diameter: | 0.125 |
Technical Specifications
| Series: | Standard | Material: | 52100 Bearing Steel |
| Includes Inner Ring: | No | Cage Material: | Steel |
| Rolling Element: | Needle Roller | Bore Type: | Straight |
| Radial Clearance: | Normal | Misalignment: | No |
| Seal Type: | Rubber Lip | Number of Rows: | 1 |
| Full Complement/Caged: | Caged | Speed (Max) Oil: | 1,270 |
| Platform: | Cagerol Bearing | Static Load Rating (lb): | 52,300 lb |
| Speed (Max) Grease: | 635 | Dynamic Load Rating: | 26,100 |
| Sealed: | Sealed - Both Sides | Duplexing: | No |
| Precision Rating: | RBEC-1 | Flanges: | No flange |
| Operating Temperature Range: | -20 to 250 °F | Lubrication Hole Type: | Lubrication groove and hole |
| Enclosure: | Sealed Both Sides | Component Type: | Outer race only |
| Separable: | Nonseparable | Retainer: | Yes |
