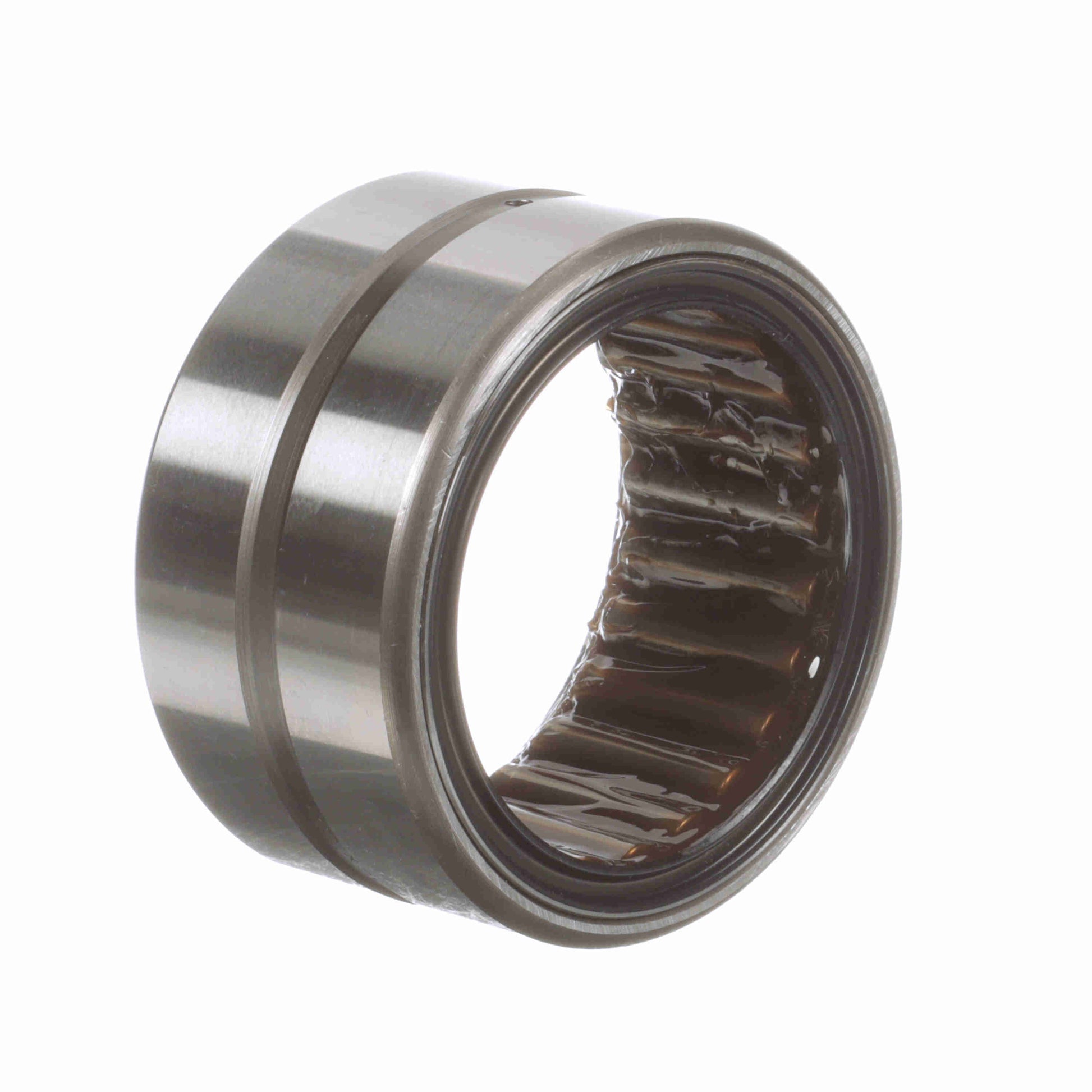

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 40 RS
General Specifications
| UPC: | 726166067663 | Weight: | 1.16 LB |
| Packaged Length: | 3.31 Inches | Packaged Width: | 1.81 Inches |
| Packaged Height: | 3.31 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.75 | Housing & Shaft Fillet (in): | 0.08 in |
| Bore Size - Inch: | 2.5000 in | Hole Diameter: | 0.125 |
| Outside Diameter - Inch: | 3.25 in |
Technical Specifications
| Includes Inner Ring: | No | Material: | 52100 Bearing Steel |
| Series: | Standard | Cage Material: | Steel |
| Seal Type: | Rubber Lip | Rolling Element: | Needle Roller |
| Radial Clearance: | Normal | Number of Rows: | 1 |
| Misalignment: | No | Bore Type: | Straight |
| Platform: | Cagerol Bearing | Full Complement/Caged: | Caged |
| Dynamic Load Rating: | 23,400 | Duplexing: | No |
| Static Load Rating (lb): | 42,900 lb | Sealed: | Sealed - One Side |
| Speed (Max) Oil: | 1,530 | Speed (Max) Grease: | 750 |
| Flanges: | No flange | Related Inner Ring: | MI 31, MI 32, MI 34 |
| Precision Rating: | RBEC-1 | Lubrication Hole Type: | Lubrication groove and hole |
| Operating Temperature Range: | -20 to 250 °F | Component Type: | Outer race only |
| Enclosure: | Sealed One Side | Separable: | Nonseparable |
| Retainer: | Yes |
