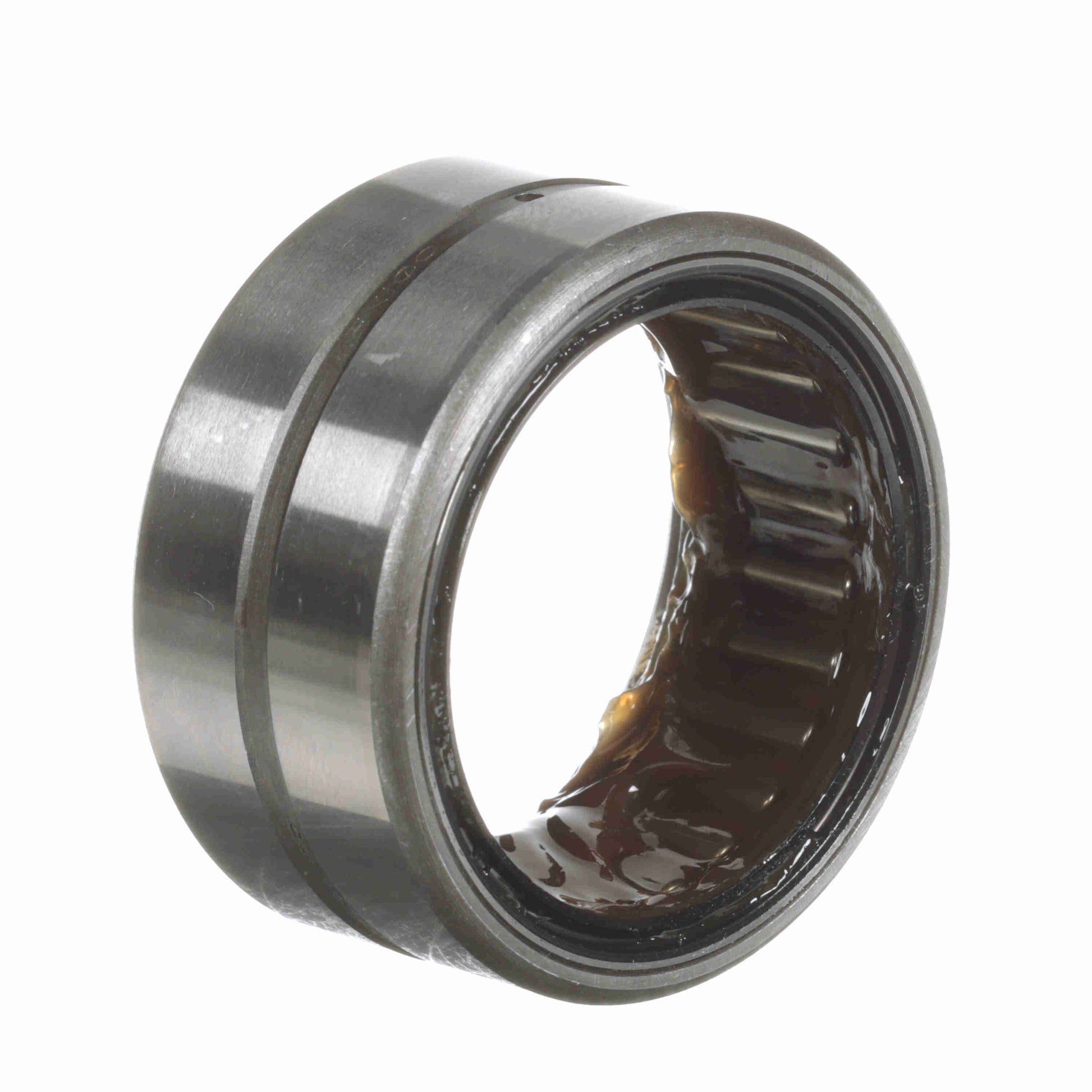

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 32 RS
General Specifications
| UPC: | 726166067236 | Weight: | 0.49 LB |
| Packaged Length: | 2.62 Inches | Packaged Width: | 1.31 Inches |
| Packaged Height: | 2.62 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Bore Size - Inch: | 2 in |
| Outside Diameter - Inch: | 2.5625 in | Hole Diameter: | 0.094 |
| Housing & Shaft Fillet (in): | 0.06 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Includes Inner Ring: | No |
| Series: | Standard | Cage Material: | Steel |
| Seal Type: | Rubber Lip | Bore Type: | Straight |
| Rolling Element: | Needle Roller | Number of Rows: | 1 |
| Misalignment: | No | Radial Clearance: | Normal |
| Platform: | Cagerol Bearing | Speed (Max) Oil: | 1,900 |
| Sealed: | Sealed - One Side | Dynamic Load Rating: | 12,000 |
| Duplexing: | No | Full Complement/Caged: | Caged |
| Speed (Max) Grease: | 950 | Static Load Rating (lb): | 20,700 lb |
| Related Inner Ring: | MI 25 | Lubrication Hole Type: | Lubrication groove and hole |
| Flanges: | No flange | Operating Temperature Range: | -20 to 250 °F |
| Precision Rating: | RBEC-1 | Component Type: | Outer race only |
| Separable: | Nonseparable | Enclosure: | Sealed One Side |
| Retainer: | Yes |
