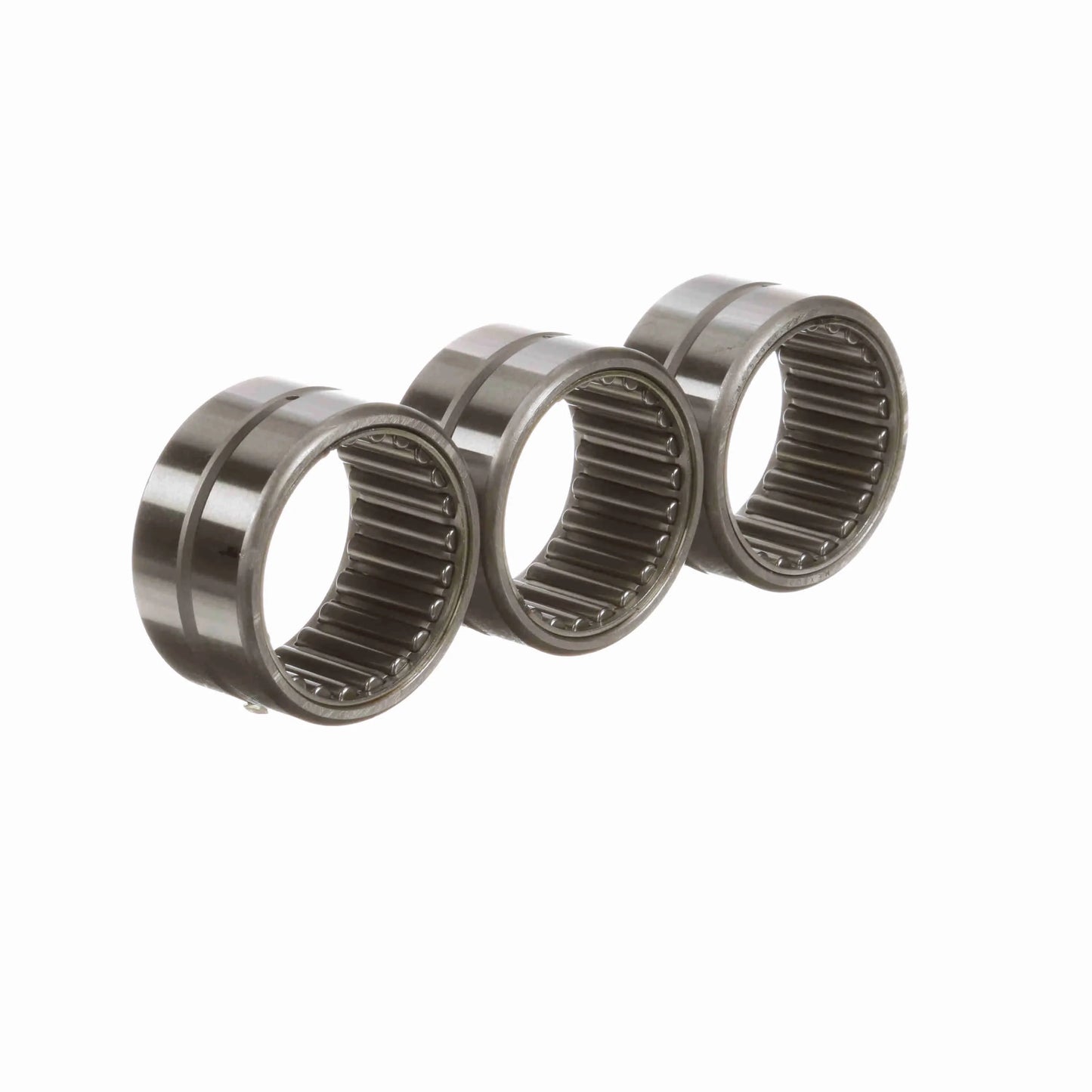

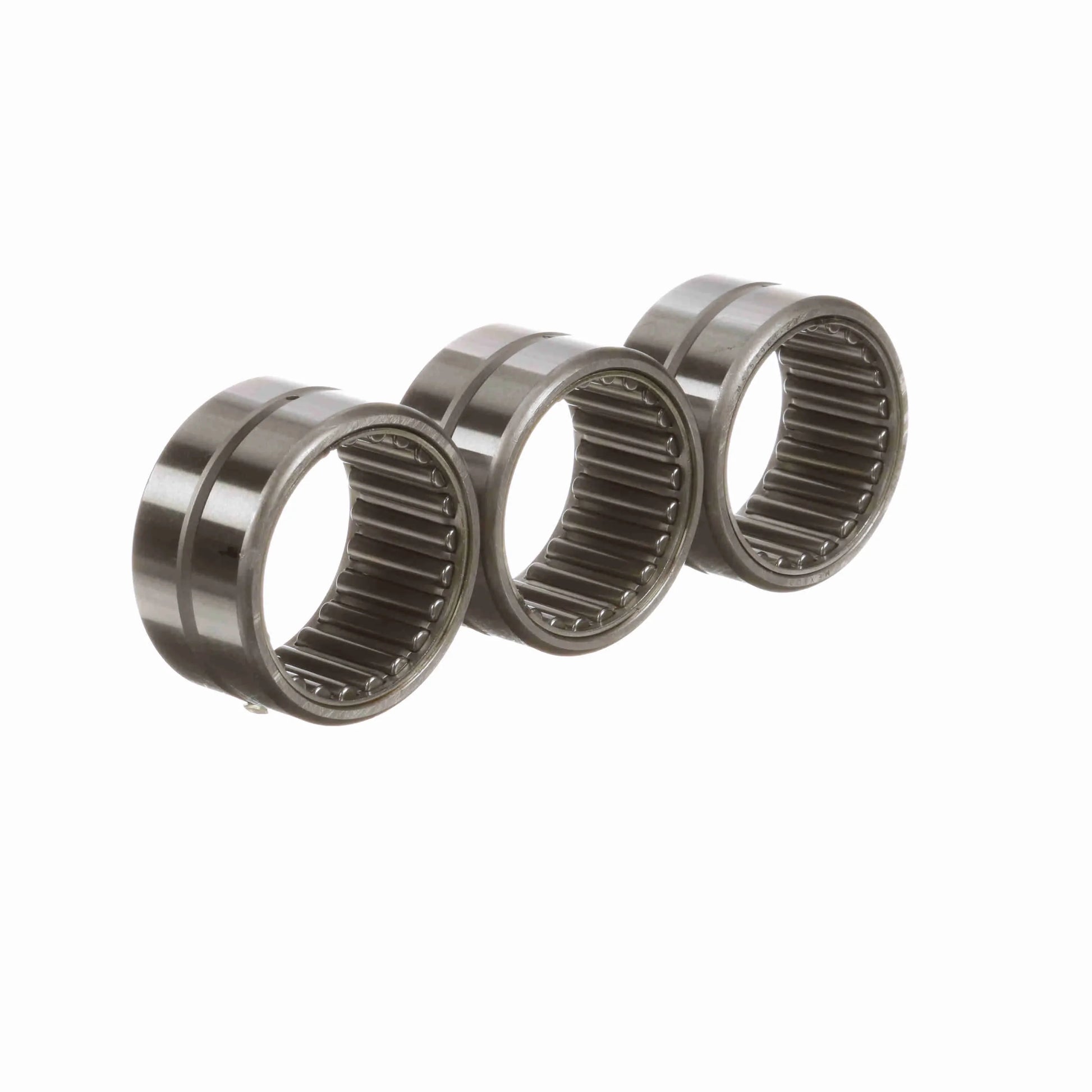

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 28 DS3
General Specifications
| UPC: | 726166066765 | Weight: | 1.83 LB |
| Packaged Length: | 2.31 Inches | Packaged Width: | 1.56 Inches |
| Packaged Height: | 2.31 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Hole Diameter: | 0.094 |
| Bore Size - Inch: | 1.7500 in | Housing & Shaft Fillet (in): | 0.06 in |
| Outside Diameter - Inch: | 2.3125 in |
Technical Specifications
| Includes Inner Ring: | No | Series: | Standard |
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Seal Type: | Unsealed | Misalignment: | No |
| Number of Rows: | 1 | Rolling Element: | Needle Roller |
| Radial Clearance: | Normal | Bore Type: | Straight |
| Sealed: | None | Speed (Max) Oil: | 6,850 |
| Full Complement/Caged: | Caged | Duplexing: | Yes |
| Speed (Max) Grease: | 3,400 | Dynamic Load Rating: | 23,300 |
| Static Load Rating (lb): | 24,400 lb | Platform: | Cagerol Bearing |
| Flanges: | No Flanges | Lubrication Hole Type: | Lubrication Groove & Hole |
| Operating Temperature Range: | -20 to 250 °F | Standard Met: | ABMA, ISO |
| Precision Rating: | RBEC-1 | Enclosure: | Open |
| Component Type: | Outer race only | Separable: | Nonseparable |
| Retainer: | Yes |
