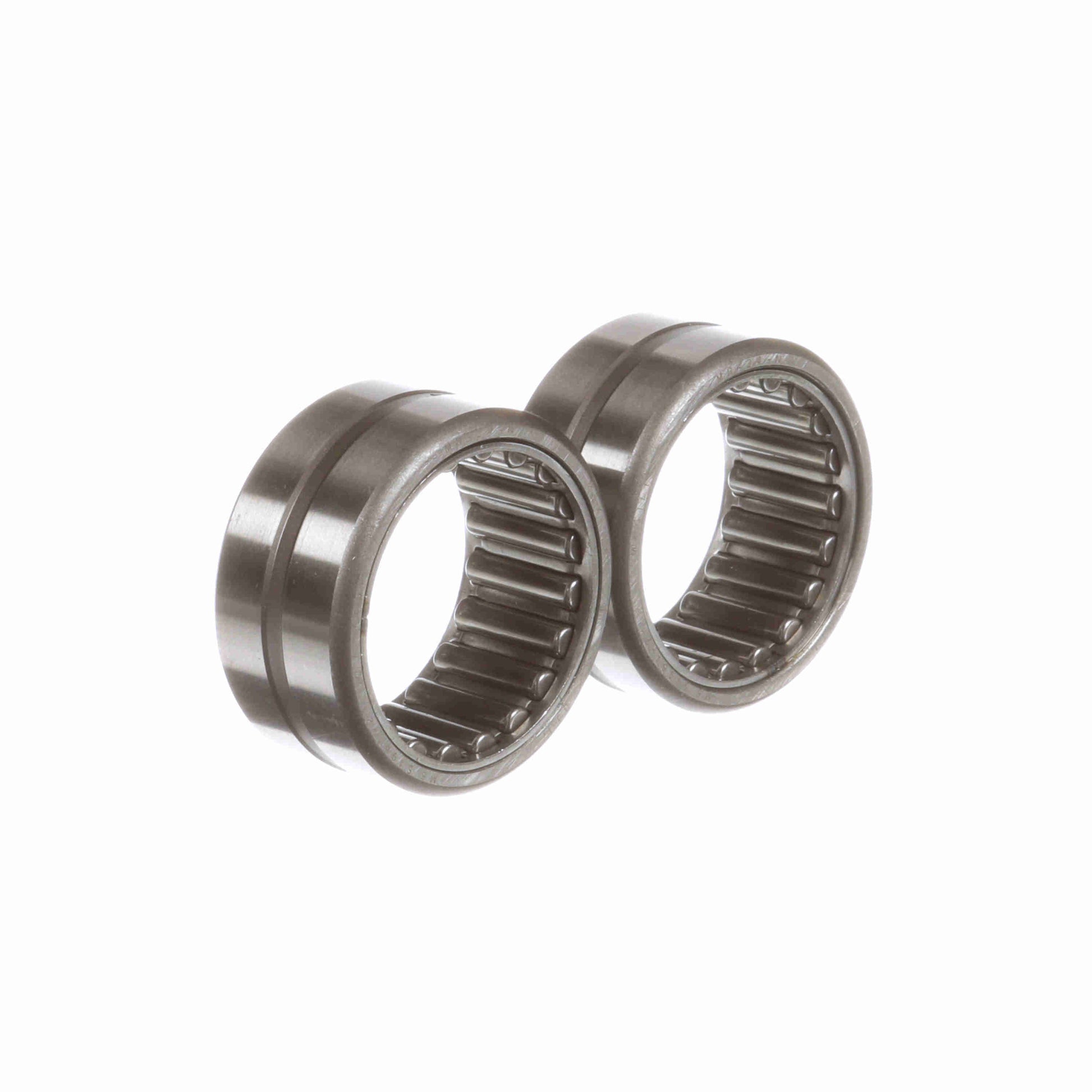

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 24 N DS
General Specifications
| UPC: | 726166066468 | Weight: | 0.66 LB |
| Packaged Length: | 2.31 Inches | Packaged Width: | 1.56 Inches |
| Packaged Height: | 2.31 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Outside Diameter - Inch: | 2.0625 in |
| Housing & Shaft Fillet (in): | 0.06 in | Bore Size - Inch: | 1.5000 in |
| Hole Diameter: | 0.094 |
Technical Specifications
| Includes Inner Ring: | No | Series: | Narrow |
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Number of Rows: | 1 | Radial Clearance: | Normal |
| Seal Type: | Unsealed | Rolling Element: | Needle Roller |
| Misalignment: | No | Bore Type: | Straight |
| Speed (Max) Oil: | 8,000 | Speed (Max) Grease: | 4,000 |
| Duplexing: | Yes | Static Load Rating (lb): | 15,500 lb |
| Platform: | Cagerol Bearing | Full Complement/Caged: | Caged |
| Sealed: | None | Dynamic Load Rating: | 17,000 |
| Precision Rating: | RBEC-1 | Operating Temperature Range: | -20 to 250 °F |
| Lubrication Hole Type: | Lubrication groove and hole | Flanges: | No flange |
| Component Type: | Outer race only | Separable: | Nonseparable |
| Enclosure: | Open | Retainer: | Yes |
