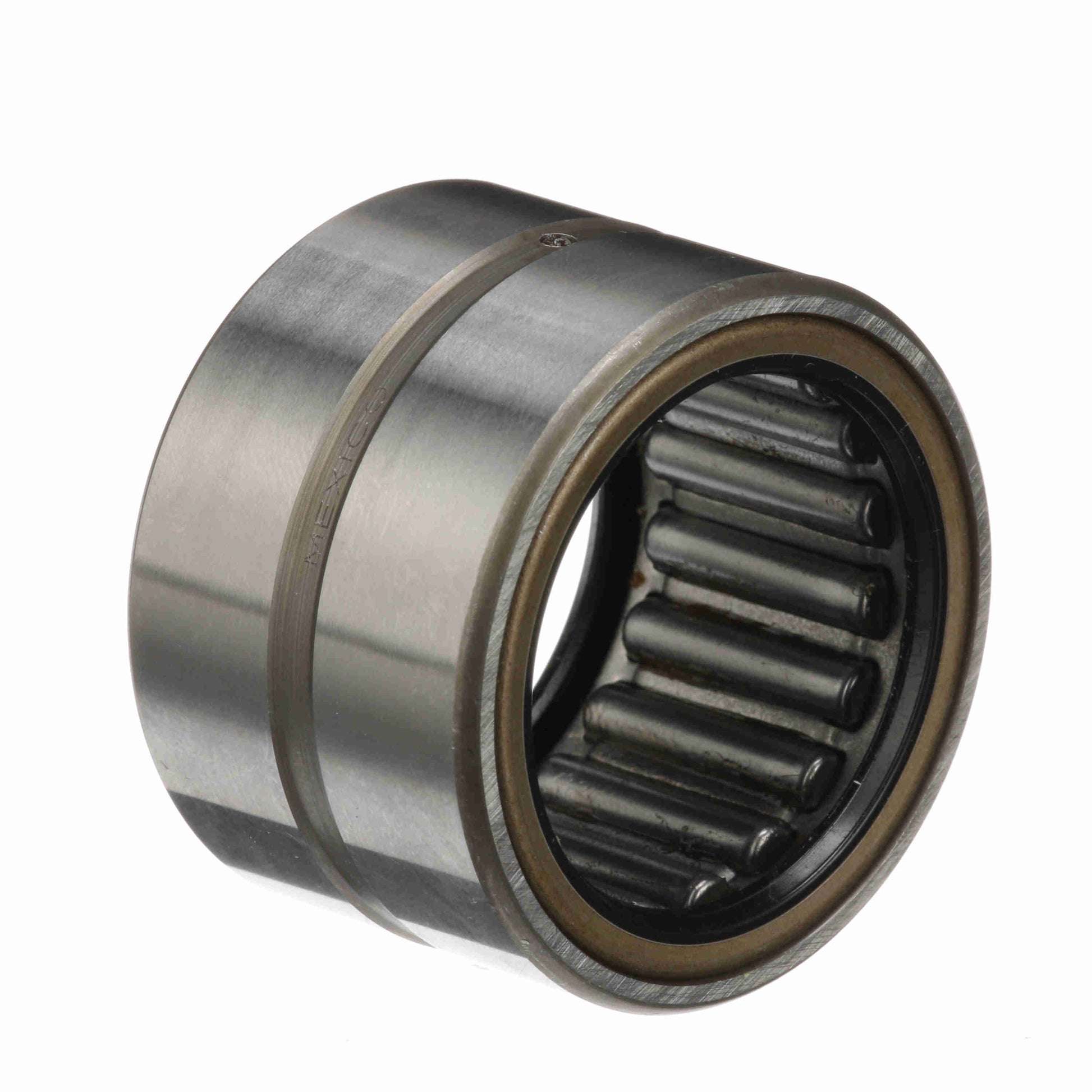

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 22 SS
General Specifications
| UPC: | 726166066109 | Weight: | 0.75 LB |
| Packaged Length: | 2 Inches | Packaged Width: | 1.37 Inches |
| Packaged Height: | 2 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Housing & Shaft Fillet (in): | 0.04 in |
| Hole Diameter: | 0.094 | Bore Size - Inch: | 1.3750 in |
| Outside Diameter - Inch: | 1.875 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Series: | Standard |
| Includes Inner Ring: | No | Cage Material: | Steel |
| Misalignment: | No | Number of Rows: | 1 |
| Seal Type: | Rubber Lip | Rolling Element: | Needle Roller |
| Radial Clearance: | Normal | Bore Type: | Straight |
| Full Complement/Caged: | Caged | Static Load Rating (lb): | 14,700 lb |
| Duplexing: | No | Dynamic Load Rating: | 9,640 |
| Speed (Max) Oil: | 2,800 | Platform: | Cagerol Bearing |
| Sealed: | Sealed - Both Sides | Speed (Max) Grease: | 1,400 |
| Flanges: | No flange | Operating Temperature Range: | -20 to 250 °F |
| Lubrication Hole Type: | Lubrication groove and hole | Precision Rating: | RBEC-1 |
| Related Inner Ring: | MI 17 | Component Type: | Outer race only |
| Separable: | Nonseparable | Enclosure: | Sealed Both Sides |
| Retainer: | Yes |
