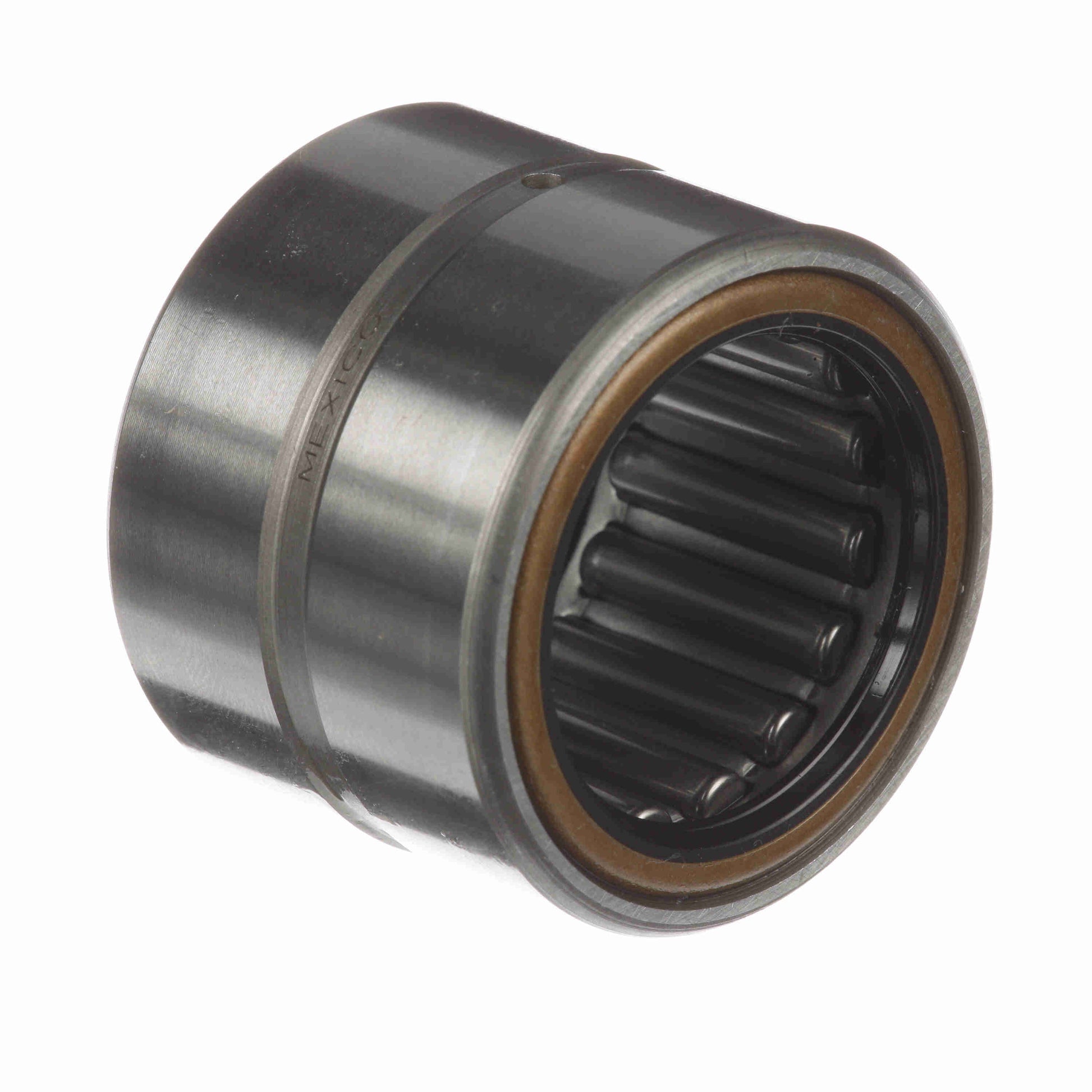

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 18 SS PD
General Specifications
| UPC: | 726166065676 | Weight: | 0.29 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Outside Diameter - Inch: | 1.625 in |
| Bore Size - Inch: | 1.1250 in | Housing & Shaft Fillet (in): | 0.04 in |
| Hole Diameter: | 0.094 |
Technical Specifications
| Includes Inner Ring: | No | Series: | Standard |
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Bore Type: | Straight | Radial Clearance: | Normal |
| Seal Type: | Rubber Lip | Number of Rows: | 1 |
| Rolling Element: | Needle Roller | Misalignment: | No |
| Static Load Rating (lb): | 12,200 lb | Speed (Max) Oil: | 3,400 |
| Dynamic Load Rating: | 8,720 | Duplexing: | No |
| Full Complement/Caged: | Caged | Platform: | Cagerol Bearing |
| Speed (Max) Grease: | 1,700 | Sealed: | Sealed - Both Sides |
| Lubrication Hole Type: | Lubrication groove and hole | Flanges: | No flange |
| Operating Temperature Range: | -20 to 250 °F | Precision Rating: | RBEC-1 |
| Separable: | Nonseparable | Enclosure: | Sealed Both Sides |
| Component Type: | Outer race only | Retainer: | Yes |
