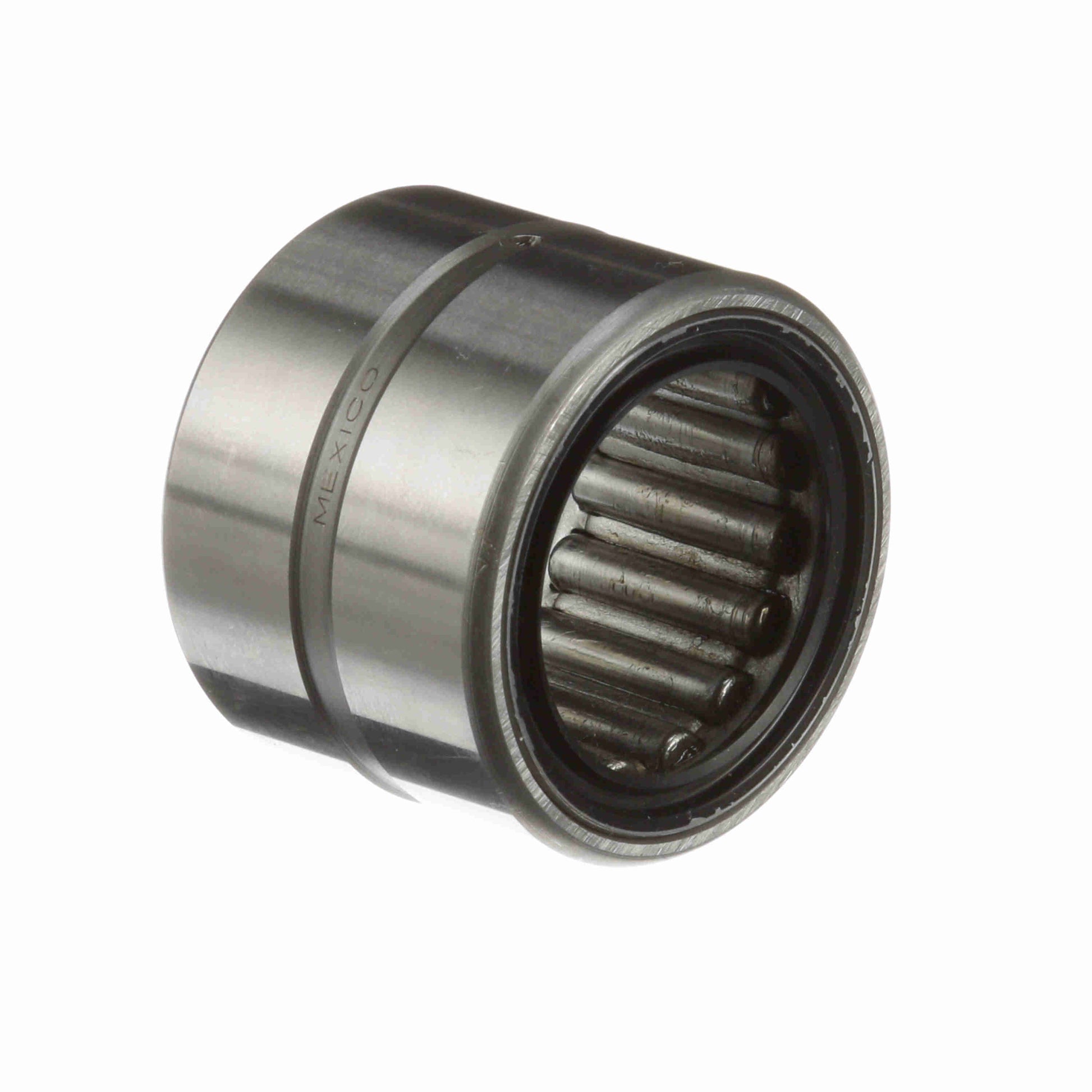

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 18 RSS
General Specifications
| UPC: | 726166065690 | Weight: | 0.29 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Outside Diameter - Inch: | 1.625 in |
| Hole Diameter: | 0.094 | Housing & Shaft Fillet (in): | 0.04 in |
| Bore Size - Inch: | 1.1250 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Series: | Standard |
| Includes Inner Ring: | No | Cage Material: | Steel |
| Misalignment: | No | Number of Rows: | 1 |
| Bore Type: | Straight | Rolling Element: | Needle Roller |
| Seal Type: | Rubber Lip | Radial Clearance: | Normal |
| Dynamic Load Rating: | 8,720 | Static Load Rating (lb): | 12,200 lb |
| Platform: | Cagerol Bearing | Full Complement/Caged: | Caged |
| Duplexing: | No | Speed (Max) Grease: | 3,400 |
| Sealed: | Sealed - Both Sides | Lubrication Hole Type: | Lubrication Groove & Hole |
| Standard Met: | ABMA, ISO | Related Inner Ring: | MI 14 |
| Flanges: | No Flanges | Operating Temperature Range: | -20 to 250 °F |
| Precision Rating: | RBEC-1 | Component Type: | Outer race only |
| Separable: | Nonseparable | Enclosure: | Sealed Both Sides |
| Retainer: | Yes |
