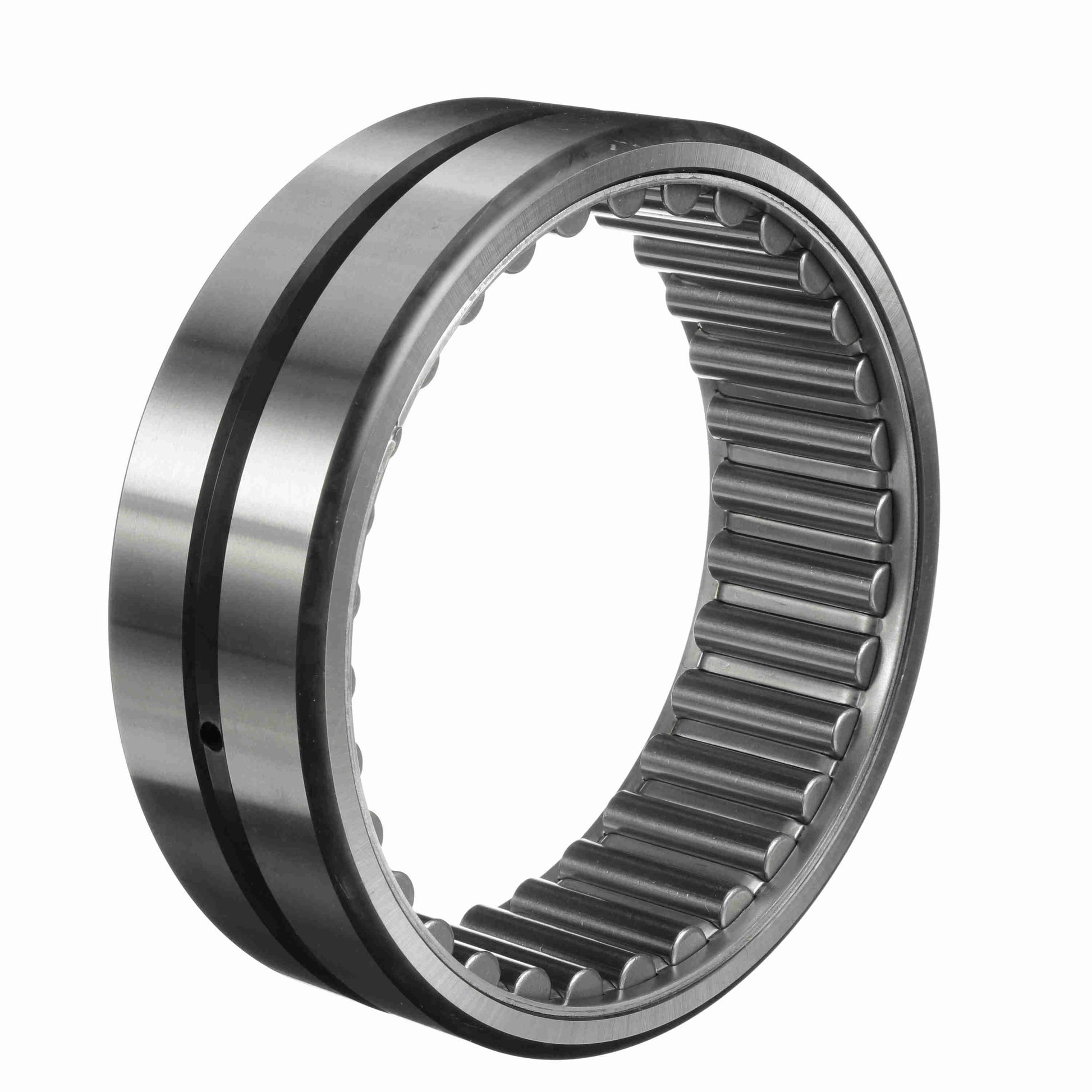

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 104 N
General Specifications
| UPC: | 726166064709 | Weight: | 8.96 LB |
| Packaged Length: | 8.4 Inches | Packaged Width: | 8.8 Inches |
| Packaged Height: | 3.4 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 2.5 | Bore Size - Inch: | 6.5000 in |
| Outside Diameter - Inch: | 8 in | Hole Diameter: | 0.25 |
| Housing & Shaft Fillet (in): | 0.12 in |
Technical Specifications
| Includes Inner Ring: | No | Series: | Narrow |
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Rolling Element: | Needle Roller | Bore Type: | Straight |
| Number of Rows: | 1 | Radial Clearance: | Normal |
| Misalignment: | No | Seal Type: | Unsealed |
| Platform: | Cagerol Bearing | Dynamic Load Rating: | 71,700 |
| Duplexing: | No | Sealed: | None |
| Static Load Rating (lb): | 183,000 lb | Speed (Max) Oil: | 1,850 |
| Speed (Max) Grease: | 900 | Full Complement/Caged: | Caged |
| Standard Met: | ABMA, ISO, MS 51961-57 | Flanges: | No flange |
| Lubrication Hole Type: | Lubrication groove and hole | Related Inner Ring: | MI 88 N |
| Operating Temperature Range: | -20 to 250 °F | Precision Rating: | RBEC-1 |
| Component Type: | Outer race only | Enclosure: | Open |
| Separable: | Nonseparable | Retainer: | Yes |
