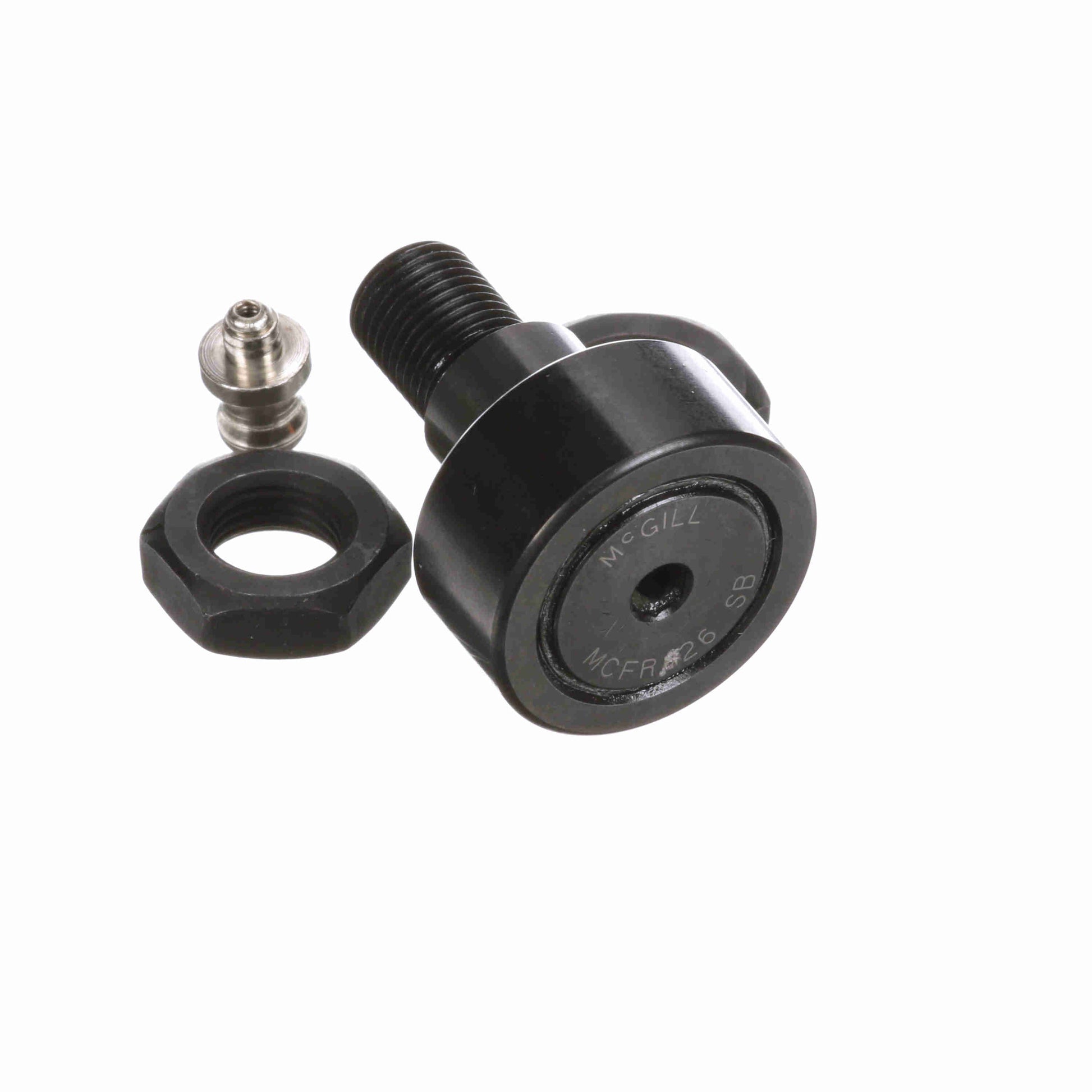

รายละเอียด ตลับลูกปืน McGill CAMROL® Crowned Metric Cam Follower - Stud Mount Roller - Hex Hole - Sealed - MCFRE 26 SB
General Specifications
| UPC: | 726166086527 | Weight: | 0.19 LB |
| Packaged Length: | 1.3 Inches | Packaged Width: | 1.2 Inches |
| Packaged Height: | 1.6 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | China |
Dimensions
| Threads: | M10x1 | Lubrication Fitting Size - Metric: | 4 |
| Reamed Hole - mm: | 4 mm | Overall Length - mm: | 36 mm |
| Stud Length - mm: | 23 mm | Stud Diameter - mm: | 10 mm |
| Roller Width - mm: | 12 mm | Hex Socket - mm: | 4 mm |
| Bushing Diameter - mm: | 13 mm | Eccentricity - mm: | 0.5 mm |
| Bushing Length - mm: | 10 mm | Minimum Thread Length: | 12 |
| Roller Diameter - mm: | 26 mm |
Technical Specifications
| O.D. Configuration: | Crowned | Sealing: | Sealed |
| Rolling Element: | Needle Roller - Caged | Hex/Slot: | Hex Hole |
| Limiting Speed: | 13,500 | Dynamic Radial Rating: | 1,169 |
| Dynamic Track Roller Load Rating (N): | 5,200 N | Adjustment: | Eccentric Bushing |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Industry Standard: | DIN | Roller Shape: | Crowned |
| Tolerance Class: | P0 Equivalent | Dynamic Load Rating - N: | 6,280 |
| Stud Type: | Standard Stud with Eccentric Bushing | Static Track Roller Load Rating: | 6,050 |
| Platform: | CAMROL® | Static Load Rating: | 6,050 |
| Clamping Torque - Nm: | 15 |
