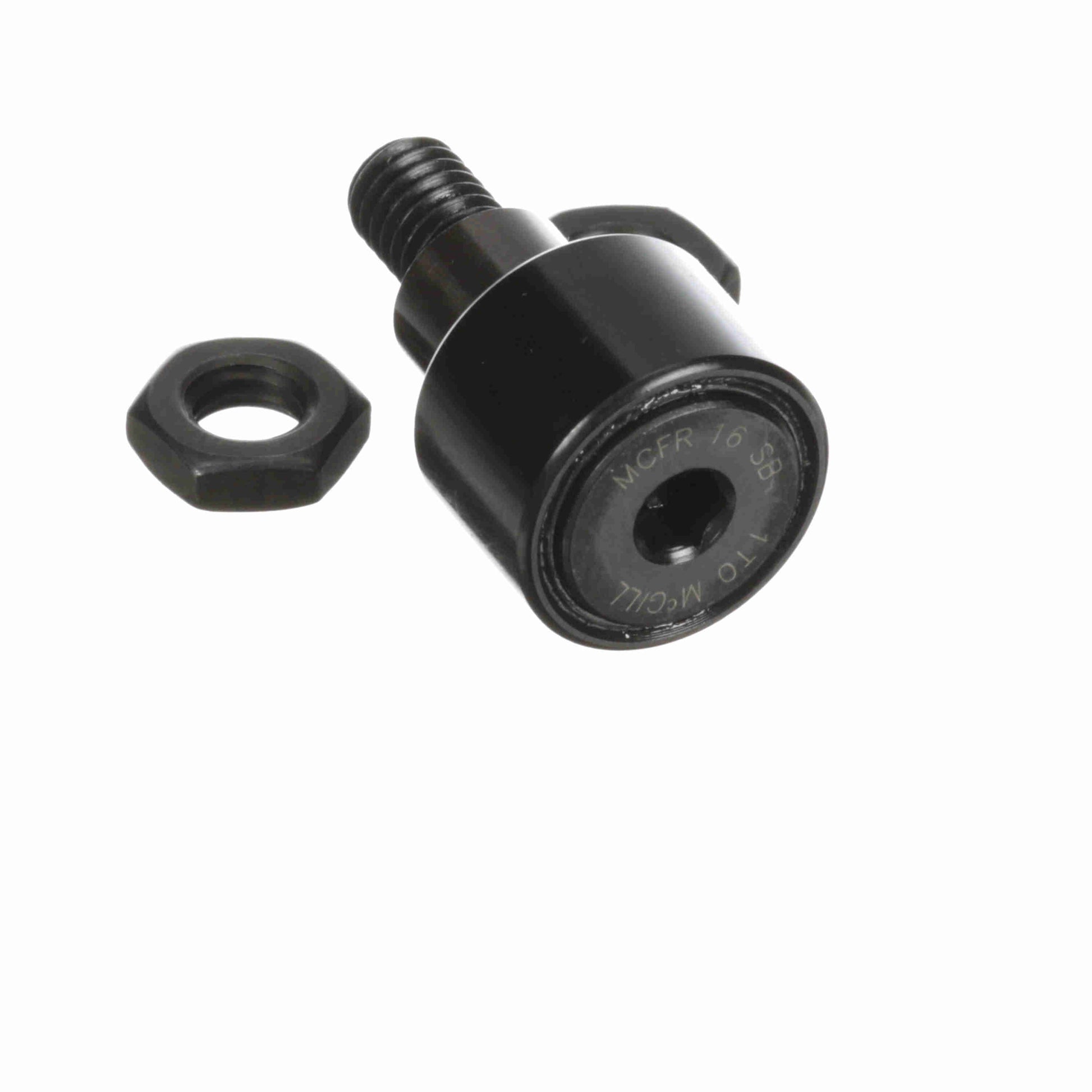

รายละเอียด ตลับลูกปืน McGill CAMROL® Crowned Metric Cam Follower - Stud Mount Roller - Hex Hole - Sealed - MCFRE 16 SB
General Specifications
| UPC: | 726166014964 | Weight: | 0.05 LB |
| Packaged Length: | 1.75 Inches | Packaged Width: | 1 Inches |
| Packaged Height: | 1.75 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | China |
Dimensions
| Threads: | M6X1 | Bushing Diameter - mm: | 9 mm |
| Reamed Hole - mm: | 4 mm | Roller Width - mm: | 11 mm |
| Bushing Length - mm: | 7 mm | Stud Diameter - mm: | 6 mm |
| Hex Socket - mm: | 4 mm | Overall Length - mm: | 28 mm |
| Stud Length - mm: | 16 mm | Minimum Thread Length: | 9 |
| Eccentricity - mm: | 0.5 mm | Roller Diameter - mm: | 16 mm |
| Lubrication Fitting Size - Metric: | 4 |
Technical Specifications
| Adjustment: | Eccentric Bushing | Rolling Element: | Needle Roller - Caged |
| Limiting Speed: | 19,500 | O.D. Configuration: | Crowned |
| Dynamic Radial Rating: | 771 | Sealing: | Sealed |
| Hex/Slot: | Hex Hole | Dynamic Track Roller Load Rating (N): | 3,430 N |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Tolerance Class: | P0 Equivalent | Static Track Roller Load Rating: | 2,350 |
| Platform: | CAMROL® | Clamping Torque - Nm: | 3 |
| Dynamic Load Rating - N: | 4,120 | Roller Shape: | Crowned |
| Dynamic Load Rating - lb: | 1,950 | Static Load Rating: | 2,350 |
| Industry Standard: | DIN / JIS | Stud Type: | Standard Stud with Eccentric Bushing |
| Lubrication Hole Location: | Stud side |
