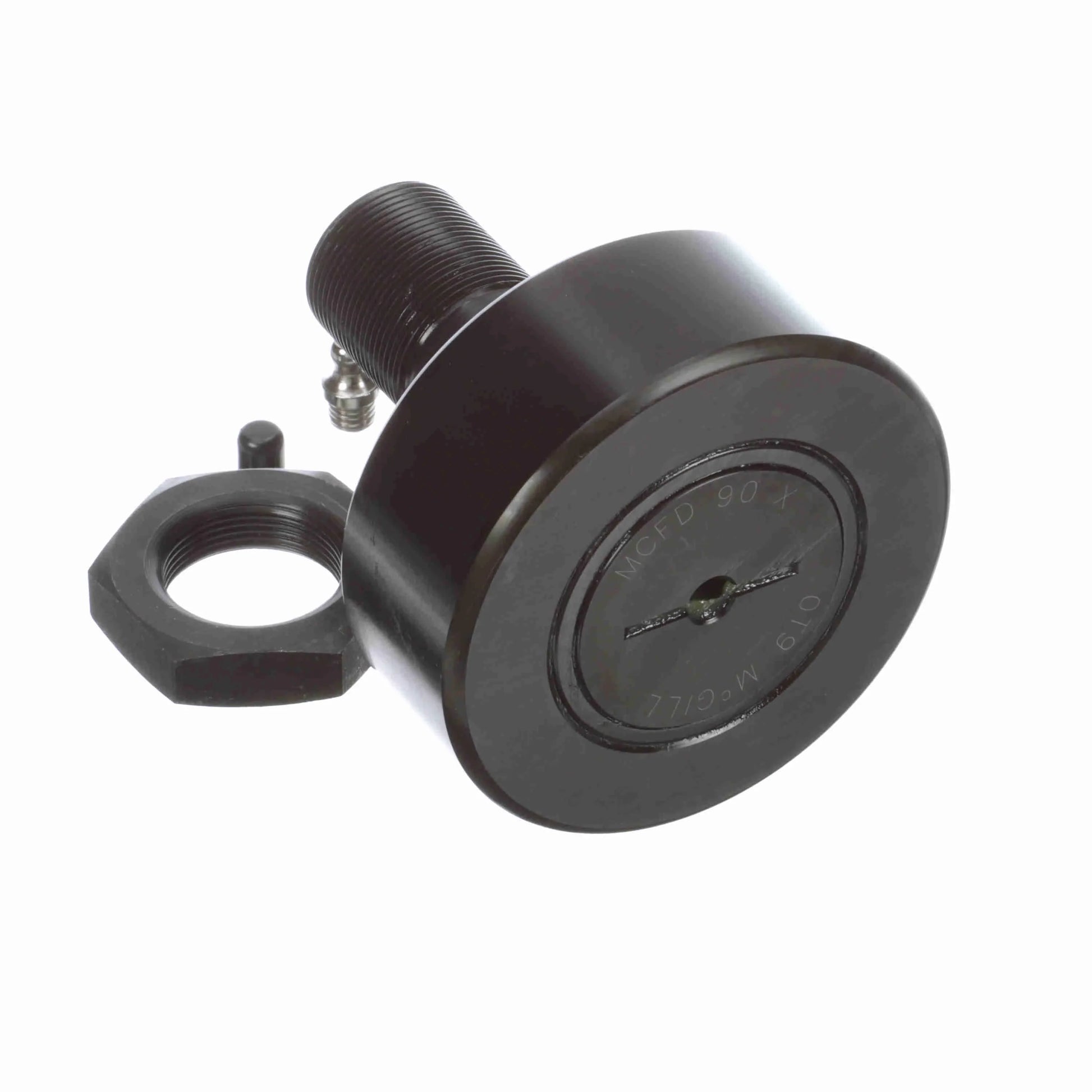

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Heavy Duty Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - Shielded - MCFD 90 X
General Specifications
| UPC: | 726166029364 | Weight: | 5.33 LB |
| Packaged Length: | 4 Inches | Packaged Width: | 3.6 Inches |
| Packaged Height: | 4.8 Inches | Country of Origin: | China |
Dimensions
| Threads: | M30x1.5 | Reamed Hole - mm: | 8 mm |
| Overall Length - mm: | 100 mm | Minimum Thread Length: | 32 |
| Stud Diameter - mm: | 30 mm | Oil Hole Center - mm: | 15 mm |
| Oil Hole Diameter - mm: | 4 mm | Lubrication Fitting Size - Metric: | 8 |
| Roller Width - mm: | 35 mm | Roller Diameter - mm: | 90 mm |
| Endplate Outer Diameter: | 47 | Stud Length - mm: | 63 mm |
Technical Specifications
| Adjustment: | None | Rolling Element: | Cylindrical Roller |
| Sealing: | Shielded | Dynamic Radial Rating: | 10,495 |
| Hex/Slot: | Screwdriver Slot | Limiting Speed: | 1,800 |
| Dynamic Track Roller Load Rating (N): | 67,000 N | O.D. Configuration: | Cylindrical |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Clamping Torque - Nm: | 441 | Roller Shape: | Cylindrical |
| Static Track Roller Load Rating: | 101,000 | Dynamic Load Rating - N: | 94,000 |
| Static Load Rating: | 101,000 | Stud Type: | Standard Stud |
| Platform: | CAMROL® | Tolerance Class: | P0 Equivalent |
