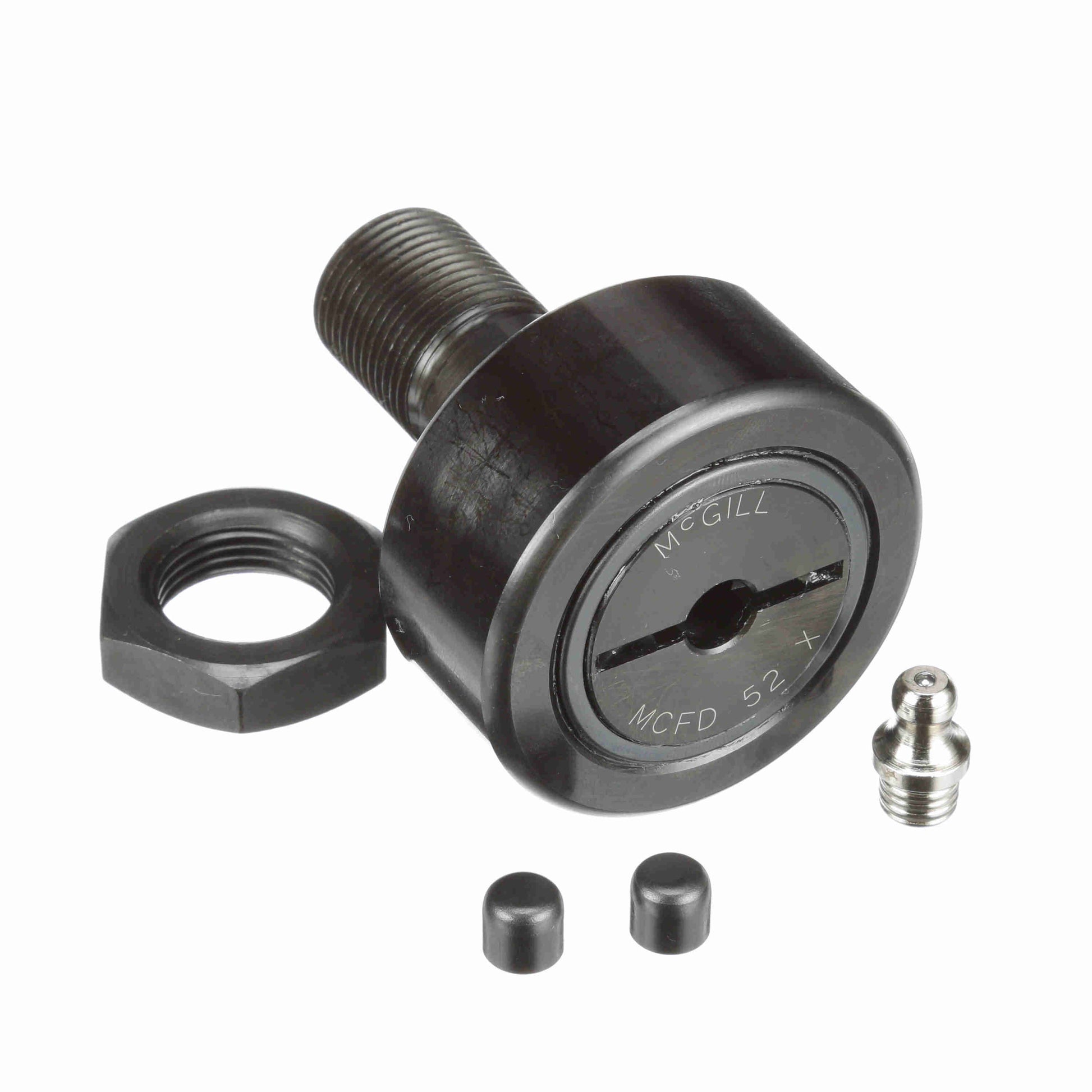

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Heavy Duty Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - Shielded - MCFD 52 X
General Specifications
| UPC: | 726166024604 | Weight: | 1.17 LB |
| Packaged Length: | 2.2 Inches | Packaged Width: | 2.2 Inches |
| Packaged Height: | 2.8 Inches | Country of Origin: | China |
Dimensions
| Threads: | M20x1.5 | Lubrication Fitting Size - Metric: | 8 |
| Stud Diameter - mm: | 20 mm | Endplate Outer Diameter: | 21 |
| Roller Diameter - mm: | 52 mm | Roller Width - mm: | 24 mm |
| Overall Length - mm: | 66 mm | Reamed Hole - mm: | 8 mm |
| Oil Hole Center - mm: | 9 mm | Minimum Thread Length: | 21 |
| Stud Length - mm: | 40.5 mm | Oil Hole Diameter - mm: | 4 mm |
Technical Specifications
| Limiting Speed: | 3,400 | Adjustment: | None |
| Hex/Slot: | Screwdriver Slot | Rolling Element: | Cylindrical Roller |
| Sealing: | Shielded | Dynamic Track Roller Load Rating (N): | 30,000 N |
| O.D. Configuration: | Cylindrical | Dynamic Radial Rating: | 6,745 |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Dynamic Load Rating - N: | 42,000 | Stud Type: | Standard Stud |
| Static Track Roller Load Rating: | 35,000 | Static Load Rating: | 35,000 |
| Platform: | CAMROL® | Roller Shape: | Cylindrical |
| Clamping Torque - Nm: | 118 | Tolerance Class: | P0 Equivalent |
