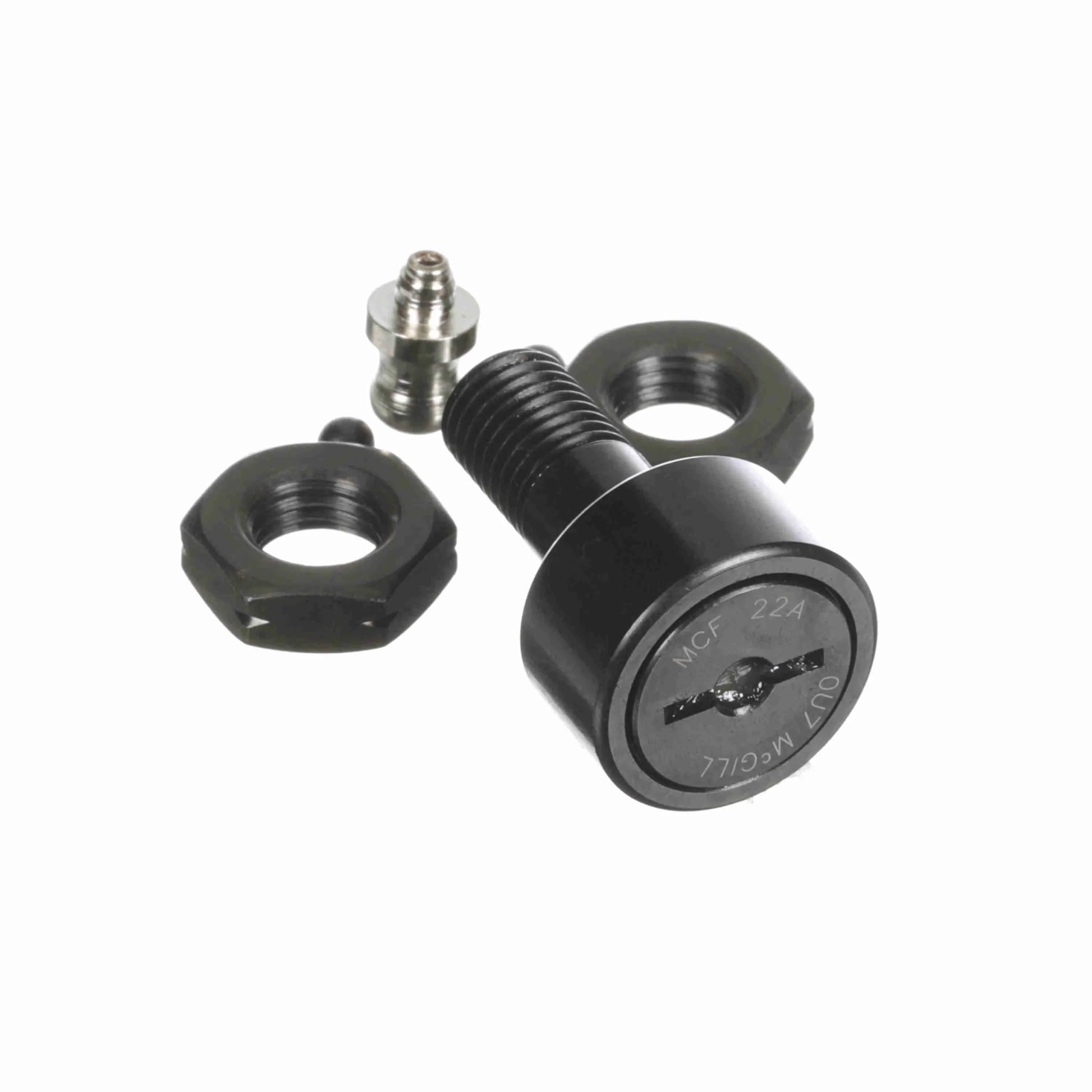

รายละเอียด ตลับลูกปืน McGill CAMROL® Crowned Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - MCF 22A
General Specifications
| UPC: | 726166015961 | Weight: | 0.14 LB |
| Packaged Length: | 1.65 Inches | Packaged Width: | 1.38 Inches |
| Packaged Height: | 1.38 Inches | Country of Origin: | China |
Dimensions
| Threads: | M10x1.25 | Reamed Hole - mm: | 4 mm |
| Stud Length - mm: | 23 mm | Overall Length - mm: | 36 mm |
| Stud Diameter - mm: | 10 mm | Lubrication Fitting Size - Metric: | 4 |
| Minimum Thread Length: | 13 | Roller Diameter - mm: | 22 mm |
| Roller Width - mm: | 12 mm |
Technical Specifications
| Sealing: | Unsealed | Limiting Speed: | 9,000 |
| Adjustment: | None | O.D. Configuration: | Crowned |
| Hex/Slot: | Screwdriver Slot | Dynamic Track Roller Load Rating (N): | 7,850 N |
| Rolling Element: | Needle Roller - Full Complement | Dynamic Radial Rating: | 1,765 |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Tolerance Class: | P0 Equivalent | Stud Type: | Standard Stud |
| Clamping Torque - Nm: | 15 | Industry Standard: | JIS |
| Dynamic Load Rating - N: | 9,410 | Static Load Rating: | 10,400 |
| Static Track Roller Load Rating: | 10,400 | Roller Shape: | Crowned |
| Platform: | CAMROL® |
