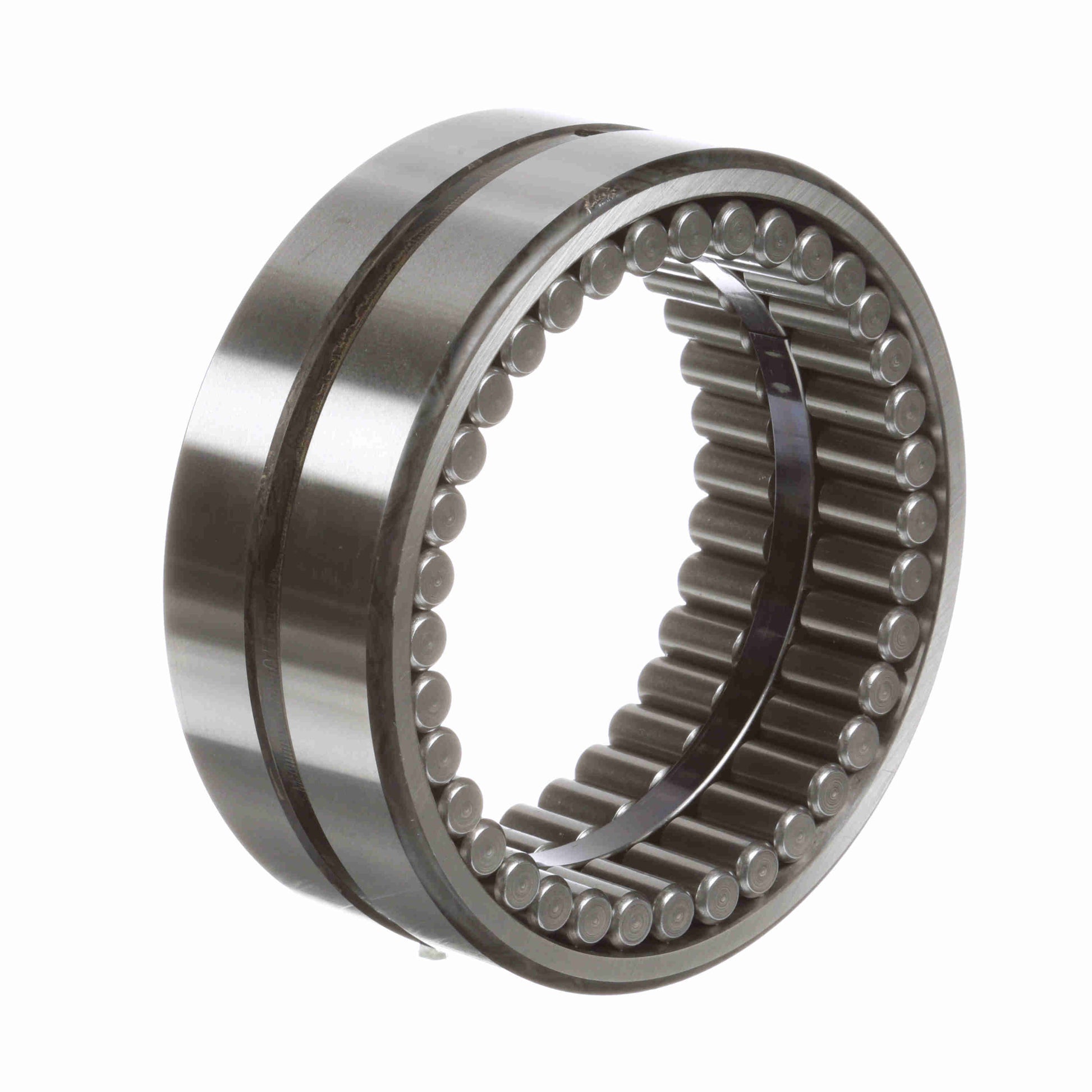

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - GR 72
General Specifications
| UPC: | 726166063528 | Weight: | 6.61 LB |
| Packaged Length: | 7.31 Inches | Packaged Width: | 2.34 Inches |
| Packaged Height: | 7.25 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 2.25 | Outside Diameter - Inch: | 6 in |
| Bore Size - Inch: | 4.5000 in | Hole Diameter: | 0.188 |
| Housing & Shaft Fillet (in): | 0.1 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Series: | Standard |
| Includes Inner Ring: | No | Cage Material: | No retainer |
| Radial Clearance: | Normal | Misalignment: | No |
| Seal Type: | Unsealed | Number of Rows: | 1 |
| Rolling Element: | Needle Roller | Bore Type: | Straight |
| Speed (Max) Grease: | 660 | Static Load Rating (lb): | 145,000 lb |
| Duplexing: | No | Sealed: | None |
| Dynamic Load Rating: | 43,400 | Full Complement/Caged: | Full Complement |
| Platform: | Guiderol Bearing | Speed (Max) Oil: | 1,330 |
| Related Inner Ring: | MI 62 | Operating Temperature Range: | -20 to 250 °F |
| Precision Rating: | RBEC-1 | Lubrication Hole Type: | Lubrication groove and hole |
| Flanges: | No flange | Enclosure: | Open |
| Component Type: | Outer race only | Separable: | Nonseparable |
| Retainer: | No |
