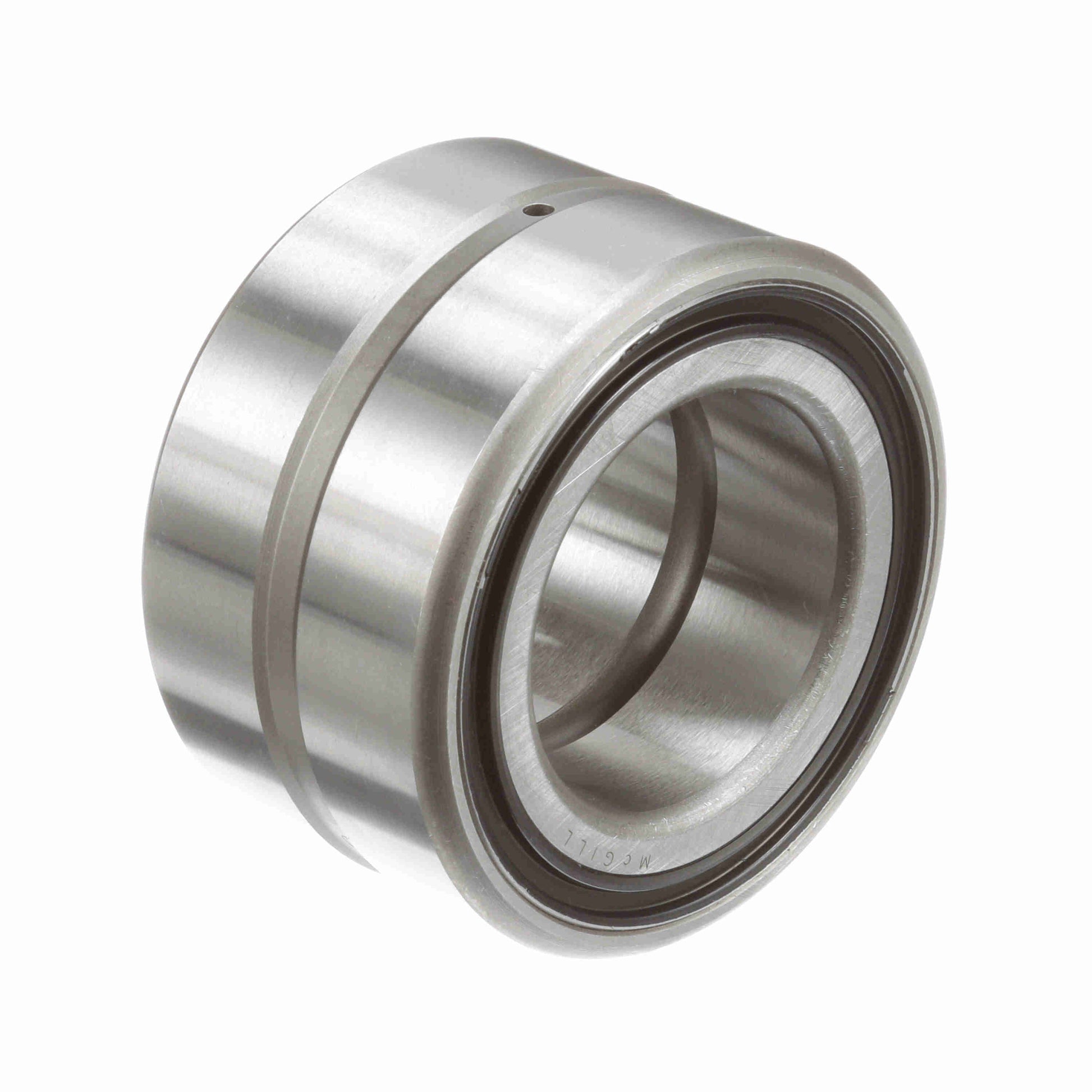

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing - Sealed - GR 48 RSS/MI 40
General Specifications
| UPC: | 726166133795 | Weight: | 2.64 LB |
| Packaged Length: | 4 Inches | Packaged Width: | 3.9 Inches |
| Packaged Height: | 2 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.75 | Inner Width: | 1.76 |
| Bore Size - Inch: | 2.5000 in | Hole Diameter: | 0.125 |
| Outside Diameter - Inch: | 3.75 in |
Technical Specifications
| Series: | Standard | Includes Inner Ring: | Yes |
| Material: | 52100 Bearing Steel | Cage Material: | No retainer |
| Number of Rows: | 1 | Bore Type: | Straight |
| Seal Type: | Rubber Lip | Misalignment: | No |
| Rolling Element: | Needle Roller | Radial Clearance: | Normal |
| Sealed: | Sealed - Both Sides | Duplexing: | No |
| Full Complement/Caged: | Full Complement | Static Load Rating (lb): | 65,400 lb |
| Speed (Max) Grease: | 1,270 | Platform: | Guiderol Bearing |
| Dynamic Load Rating: | 22,400 | Operating Temperature Range: | -20 to 250 °F |
| Lubrication Hole Type: | Lubrication Groove & Hole | Related Inner Ring: | MI 40 |
| Flanges: | No Flanges | Standard Met: | ABMA, ISO |
| Precision Rating: | RBEC-1 | Separable: | Inner ring - both sides |
| Component Type: | Outer race only | Enclosure: | Sealed Both Sides |
| Retainer: | No |
