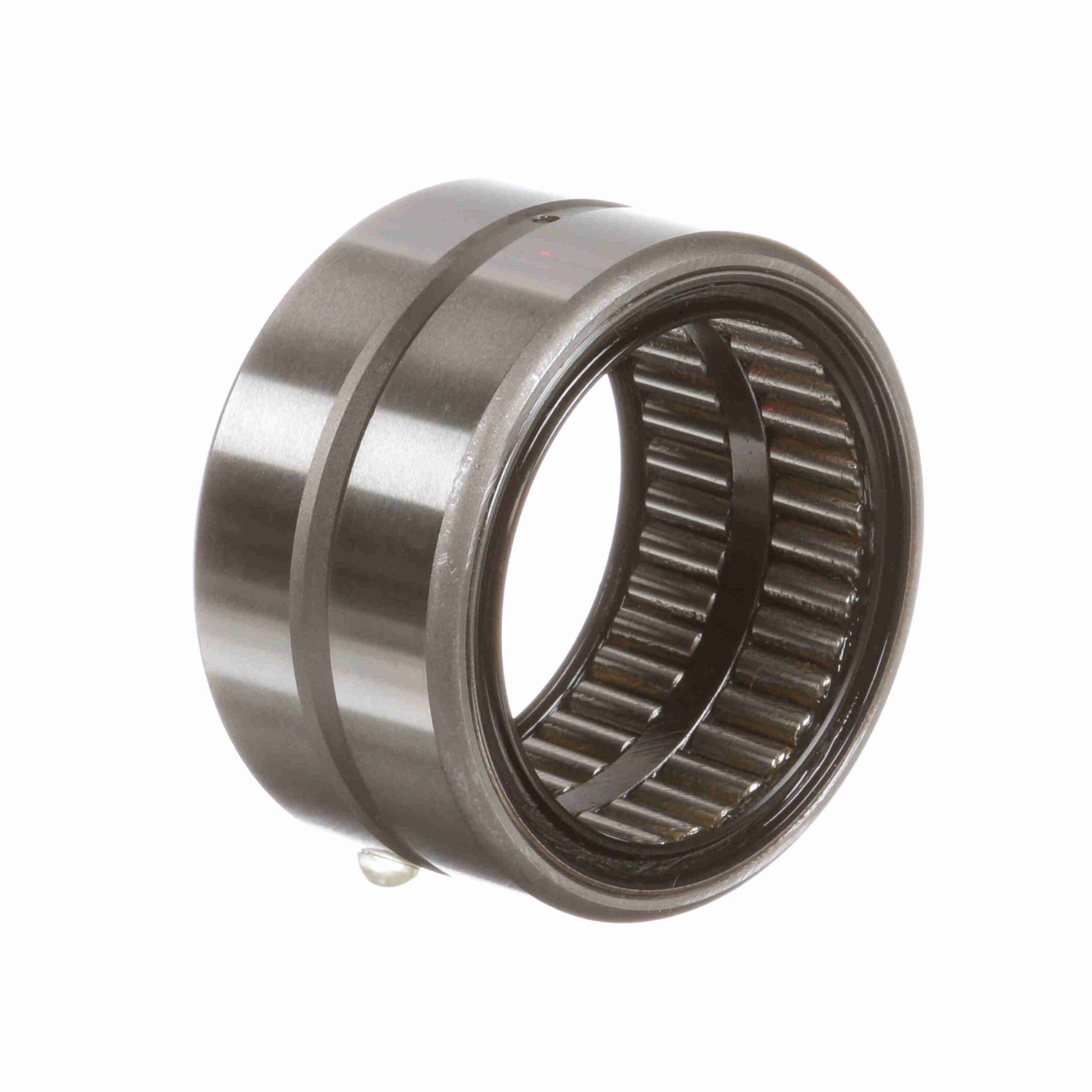

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 40 RSS
General Specifications
| UPC: | 726166062743 | Weight: | 1.37 LB |
| Packaged Length: | 3.31 Inches | Packaged Width: | 1.81 Inches |
| Packaged Height: | 3.31 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.75 | Outside Diameter - Inch: | 3.25 in |
| Hole Diameter: | 0.125 | Bore Size - Inch: | 2.5000 in |
| Housing & Shaft Fillet (in): | 0.08 in |
Technical Specifications
| Includes Inner Ring: | No | Series: | Standard |
| Material: | 52100 Bearing Steel | Cage Material: | No retainer |
| Number of Rows: | 1 | Rolling Element: | Needle Roller |
| Radial Clearance: | Normal | Seal Type: | Rubber Lip |
| Bore Type: | Straight | Misalignment: | No |
| Speed (Max) Grease: | 1,530 | Platform: | Guiderol Bearing |
| Duplexing: | No | Static Load Rating (lb): | 54,500 lb |
| Full Complement/Caged: | Full Complement | Sealed: | Sealed - Both Sides |
| Dynamic Load Rating: | 16,200 | Flanges: | No Flanges |
| Related Inner Ring: | MI 31 | Lubrication Hole Type: | Lubrication Groove & Hole |
| Precision Rating: | RBEC-1 | Standard Met: | ABMA, ISO |
| Operating Temperature Range: | -20 to 250 °F | Enclosure: | Sealed Both Sides |
| Component Type: | Outer race only | Separable: | Nonseparable |
| Retainer: | No |
