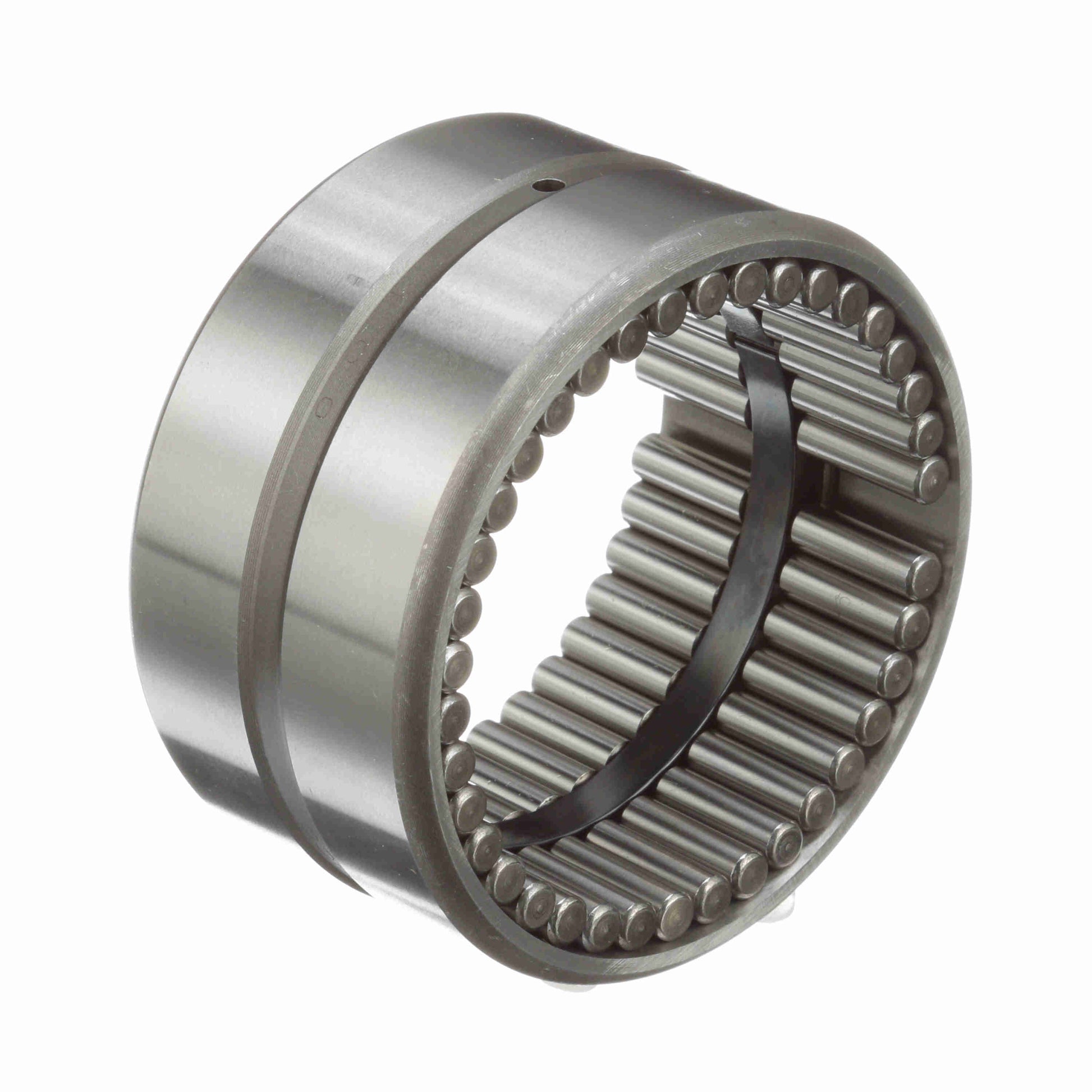

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - GR 40
General Specifications
| UPC: | 726166062675 | Weight: | 1.40 LB |
| Packaged Length: | 3.31 Inches | Packaged Width: | 1.81 Inches |
| Packaged Height: | 3.31 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.75 | Outside Diameter - Inch: | 3.25 in |
| Housing & Shaft Fillet (in): | 0.08 in | Hole Diameter: | 0.125 |
| Bore Size - Inch: | 2.5000 in |
Technical Specifications
| Series: | Standard | Includes Inner Ring: | No |
| Material: | 52100 Bearing Steel | Cage Material: | No retainer |
| Bore Type: | Straight | Seal Type: | Unsealed |
| Rolling Element: | Needle Roller | Misalignment: | No |
| Number of Rows: | 1 | Radial Clearance: | Normal |
| Speed (Max) Grease: | 1,200 | Sealed: | None |
| Static Load Rating (lb): | 66,800 lb | Full Complement/Caged: | Full Complement |
| Duplexing: | No | Speed (Max) Oil: | 2,400 |
| Dynamic Load Rating: | 19,800 | Platform: | Guiderol Bearing |
| Precision Rating: | RBEC-1 | Lubrication Hole Type: | Lubrication groove and hole |
| Related Inner Ring: | MI 32, MI 34 | Flanges: | No flange |
| Operating Temperature Range: | -20 to 250 °F | Separable: | Nonseparable |
| Component Type: | Outer race only | Enclosure: | Open |
| Retainer: | No |
