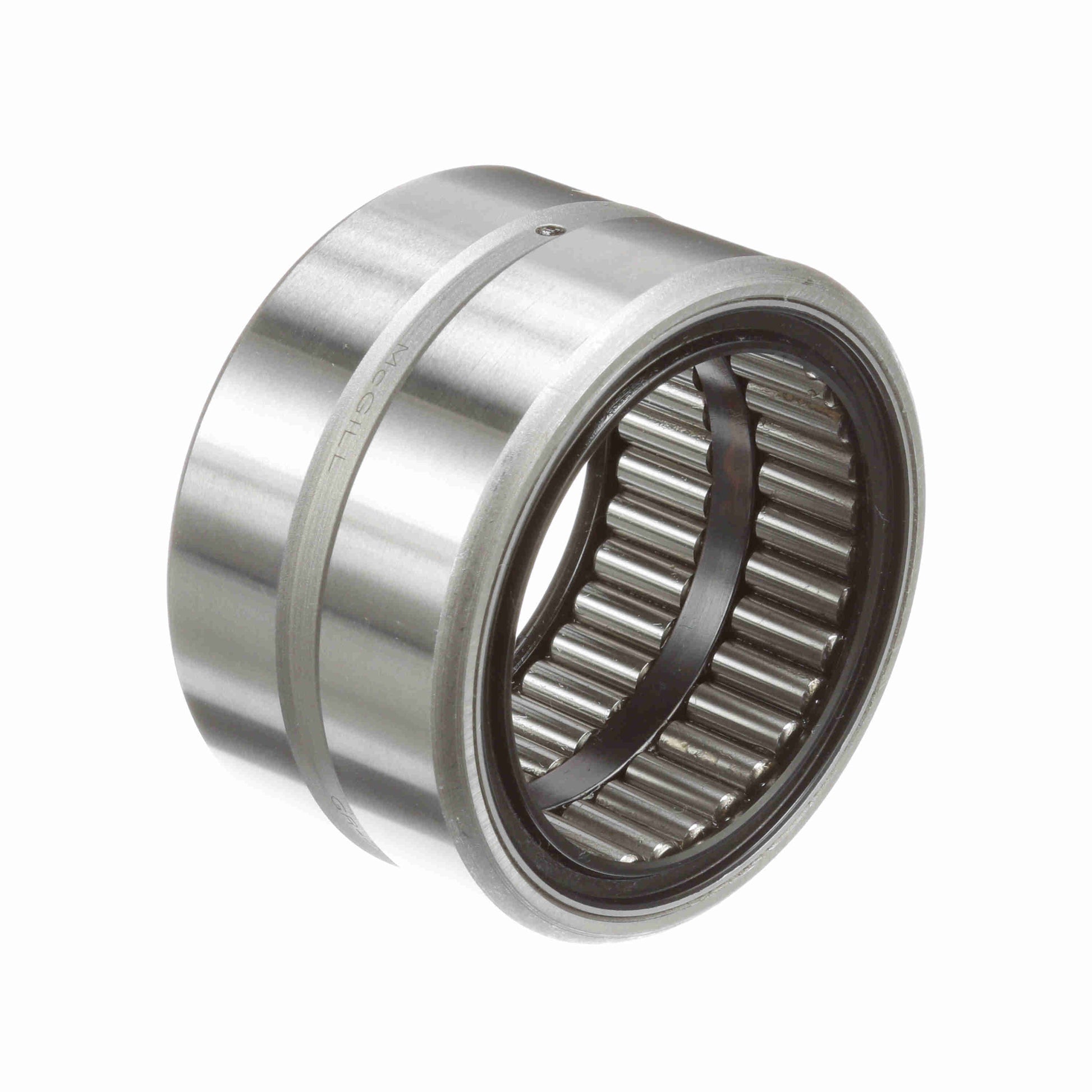

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 36 RSS
General Specifications
| UPC: | 726166062620 | Weight: | 1.19 LB |
| Packaged Length: | 3.31 Inches | Packaged Width: | 1.81 Inches |
| Packaged Height: | 3.31 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.75 | Housing & Shaft Fillet (in): | 0.06 in |
| Bore Size - Inch: | 2.2500 in | Hole Diameter: | 0.125 |
| Outside Diameter - Inch: | 3 in |
Technical Specifications
| Includes Inner Ring: | No | Series: | Standard |
| Material: | 52100 Bearing Steel | Cage Material: | No retainer |
| Rolling Element: | Needle Roller | Seal Type: | Rubber Lip |
| Bore Type: | Straight | Radial Clearance: | Normal |
| Misalignment: | No | Number of Rows: | 1 |
| Dynamic Load Rating: | 15,250 | Static Load Rating (lb): | 49,100 lb |
| Full Complement/Caged: | Full Complement | Speed (Max) Grease: | 1,700 |
| Sealed: | Sealed - Both Sides | Platform: | Guiderol Bearing |
| Duplexing: | No | Related Inner Ring: | MI 28 |
| Lubrication Hole Type: | Lubrication Groove & Hole | Operating Temperature Range: | -20 to 250 °F |
| Precision Rating: | RBEC-1 | Flanges: | No Flanges |
| Standard Met: | ABMA, ISO | Component Type: | Outer race only |
| Enclosure: | Sealed Both Sides | Separable: | Nonseparable |
| Retainer: | No |
