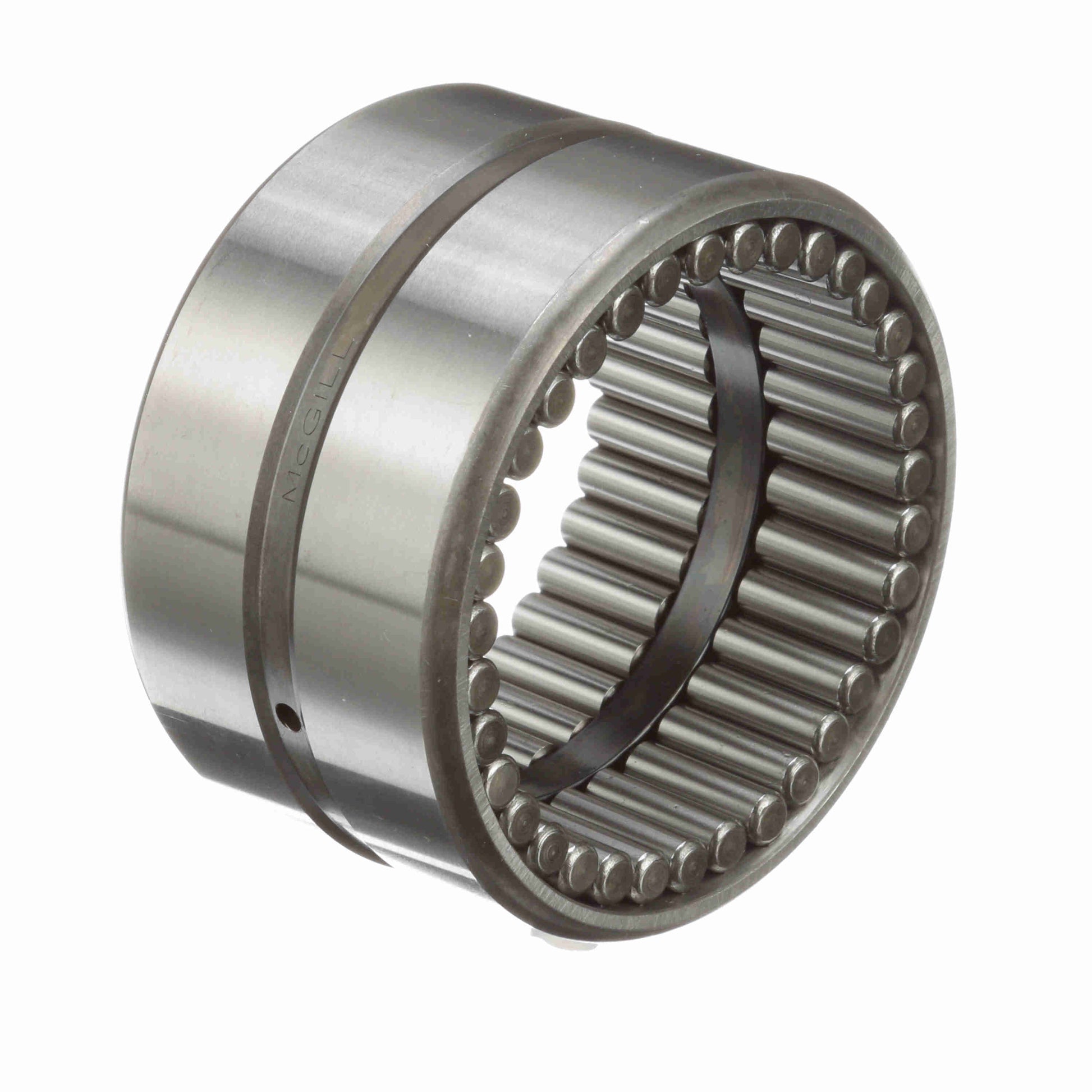

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - GR 36
General Specifications
| UPC: | 726166062521 | Weight: | 1.29 LB |
| Packaged Length: | 1.9 Inches | Packaged Width: | 3.3 Inches |
| Packaged Height: | 3.5 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.75 | Housing & Shaft Fillet (in): | 0.06 in |
| Hole Diameter: | 0.125 | Bore Size - Inch: | 2.2500 in |
| Outside Diameter - Inch: | 3 in |
Technical Specifications
| Series: | Standard | Material: | 52100 Bearing Steel |
| Includes Inner Ring: | No | Cage Material: | No retainer |
| Misalignment: | No | Number of Rows: | 1 |
| Seal Type: | Unsealed | Bore Type: | Straight |
| Rolling Element: | Needle Roller | Radial Clearance: | Normal |
| Speed (Max) Oil: | 2,700 | Dynamic Load Rating: | 18,450 |
| Static Load Rating (lb): | 60,200 lb | Sealed: | None |
| Speed (Max) Grease: | 1,350 | Duplexing: | No |
| Full Complement/Caged: | Full Complement | Platform: | Guiderol Bearing |
| Operating Temperature Range: | -20 to 250 °F | Precision Rating: | RBEC-1 |
| Related Inner Ring: | MI 30 | Lubrication Hole Type: | Lubrication Groove & Hole |
| Standard Met: | ABMA, ISO | Flanges: | No Flanges |
| Component Type: | Outer race only | Enclosure: | Open |
| Separable: | Nonseparable | Retainer: | No |
