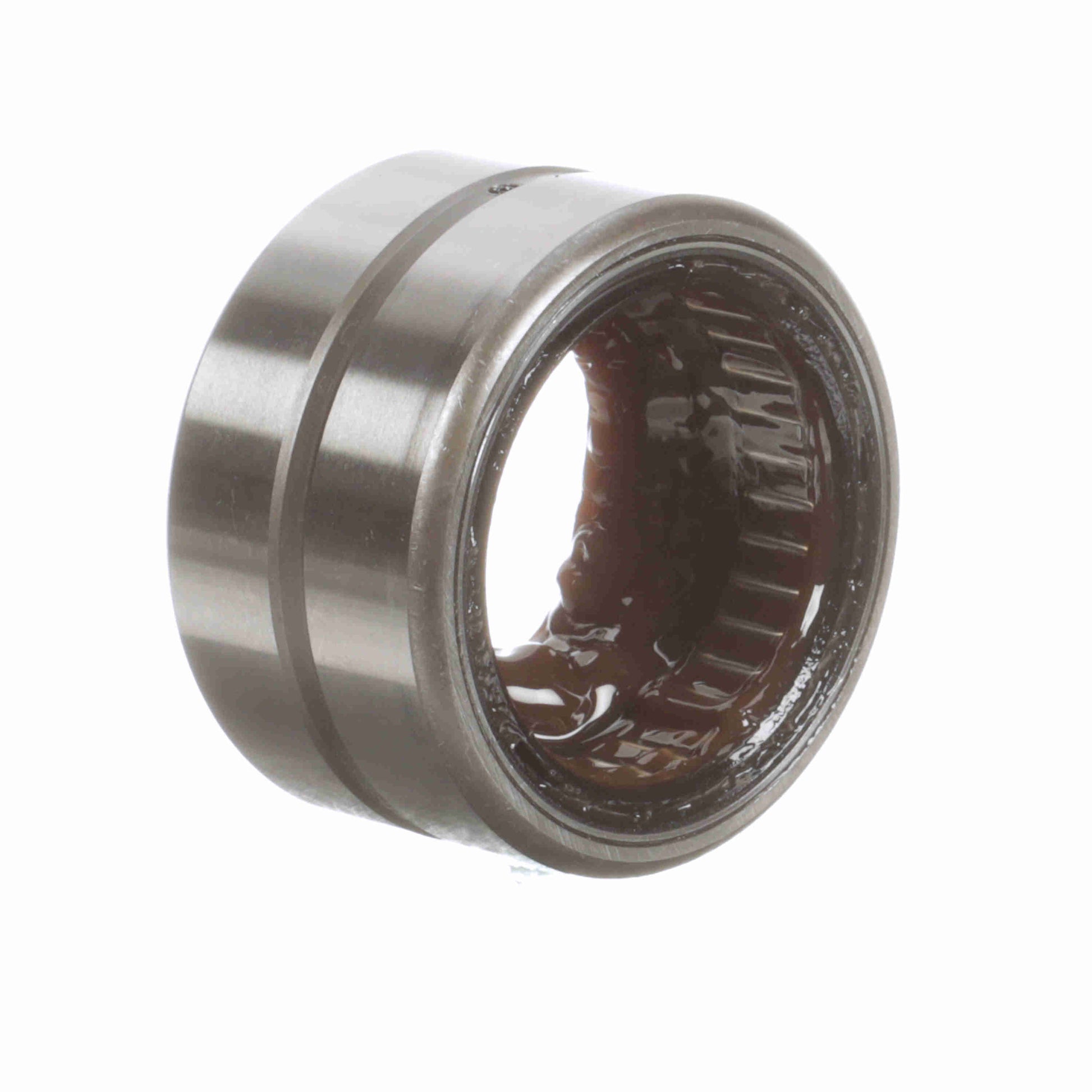

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 26 RS
General Specifications
| UPC: | 726166062156 | Weight: | 0.51 LB |
| Packaged Length: | 2.31 Inches | Packaged Width: | 1.56 Inches |
| Packaged Height: | 2.31 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Outside Diameter - Inch: | 2.1875 in |
| Hole Diameter: | 0.094 | Housing & Shaft Fillet (in): | 0.06 in |
| Bore Size - Inch: | 1.6250 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Series: | Standard |
| Includes Inner Ring: | No | Cage Material: | No retainer |
| Rolling Element: | Needle Roller | Radial Clearance: | Normal |
| Bore Type: | Straight | Seal Type: | Rubber Lip |
| Number of Rows: | 1 | Misalignment: | No |
| Dynamic Load Rating: | 7,500 | Static Load Rating (lb): | 21,700 lb |
| Duplexing: | No | Speed (Max) Grease: | 2,350 |
| Sealed: | Sealed - One Side | Platform: | Guiderol Bearing |
| Full Complement/Caged: | Full Complement | Related Inner Ring: | MI 21 |
| Precision Rating: | RBEC-1 | Operating Temperature Range: | -20 to 250 °F |
| Standard Met: | ABMA, ISO | Lubrication Hole Type: | Lubrication Groove & Hole |
| Flanges: | No Flanges | Component Type: | Outer race only |
| Enclosure: | Sealed One Side | Separable: | Nonseparable |
| Retainer: | No |
