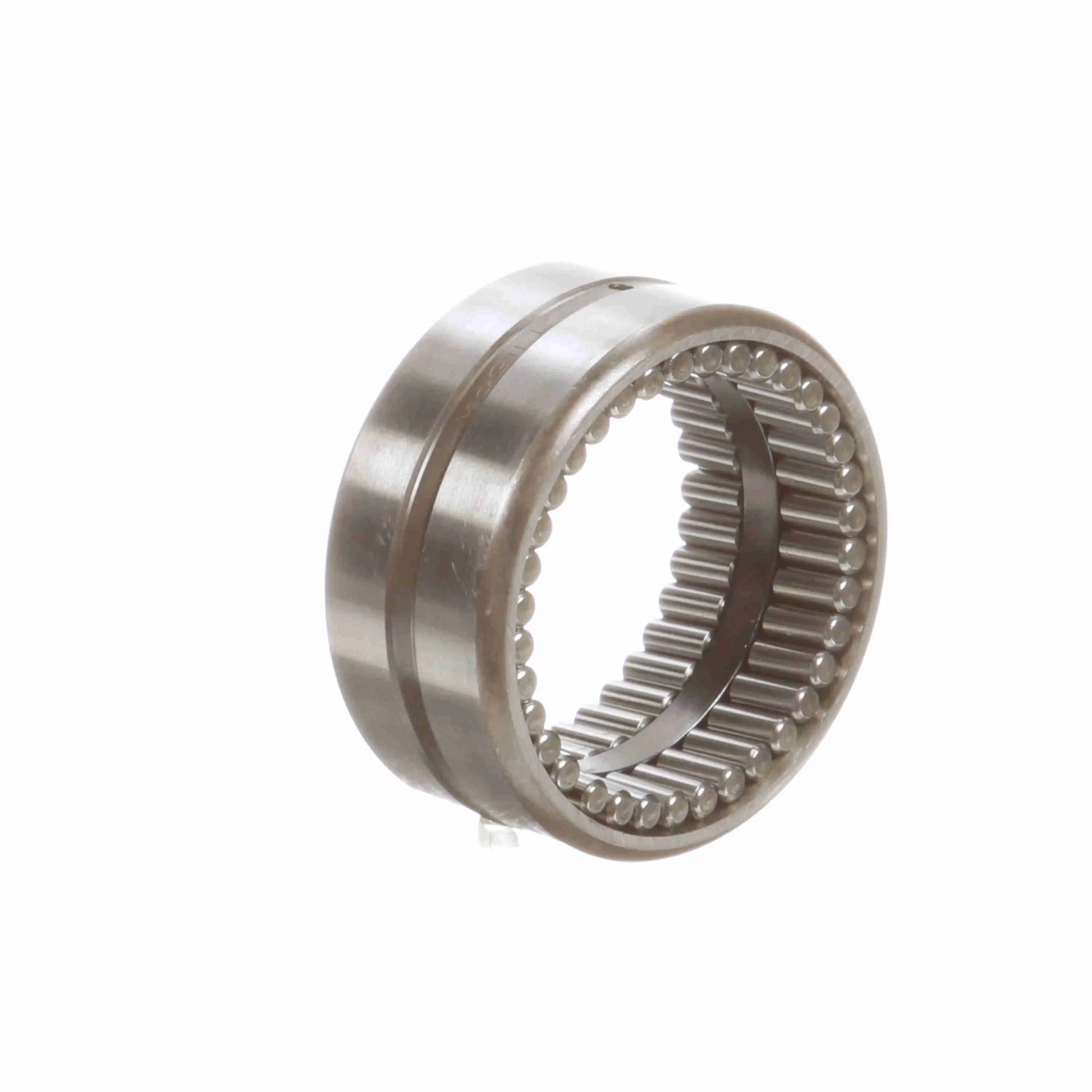

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - GR 26 N
General Specifications
| UPC: | 726166062170 | Weight: | 0.40 LB |
| Packaged Length: | 2.4 Inches | Packaged Width: | 2.4 Inches |
| Packaged Height: | 1.6 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Outside Diameter - Inch: | 2.1875 in |
| Hole Diameter: | 0.094 | Housing & Shaft Fillet (in): | 0.06 in |
| Bore Size - Inch: | 1.6250 in |
Technical Specifications
| Includes Inner Ring: | No | Material: | 52100 Bearing Steel |
| Series: | Narrow | Cage Material: | No retainer |
| Bore Type: | Straight | Number of Rows: | 1 |
| Rolling Element: | Needle Roller | Seal Type: | Unsealed |
| Radial Clearance: | Normal | Misalignment: | No |
| Full Complement/Caged: | Full Complement | Dynamic Load Rating: | 7,500 |
| Platform: | Guiderol Bearing | Static Load Rating (lb): | 21,700 lb |
| Duplexing: | No | Speed (Max) Oil: | 3,700 |
| Sealed: | None | Speed (Max) Grease: | 1,850 |
| Operating Temperature Range: | -20 to 250 °F | Precision Rating: | RBEC-1 |
| Lubrication Hole Type: | Lubrication Groove & Hole | Flanges: | No Flanges |
| Related Inner Ring: | MI 21 N | Standard Met: | ABMA, ISO |
| Enclosure: | Open | Component Type: | Outer race only |
| Separable: | Nonseparable | Retainer: | No |
