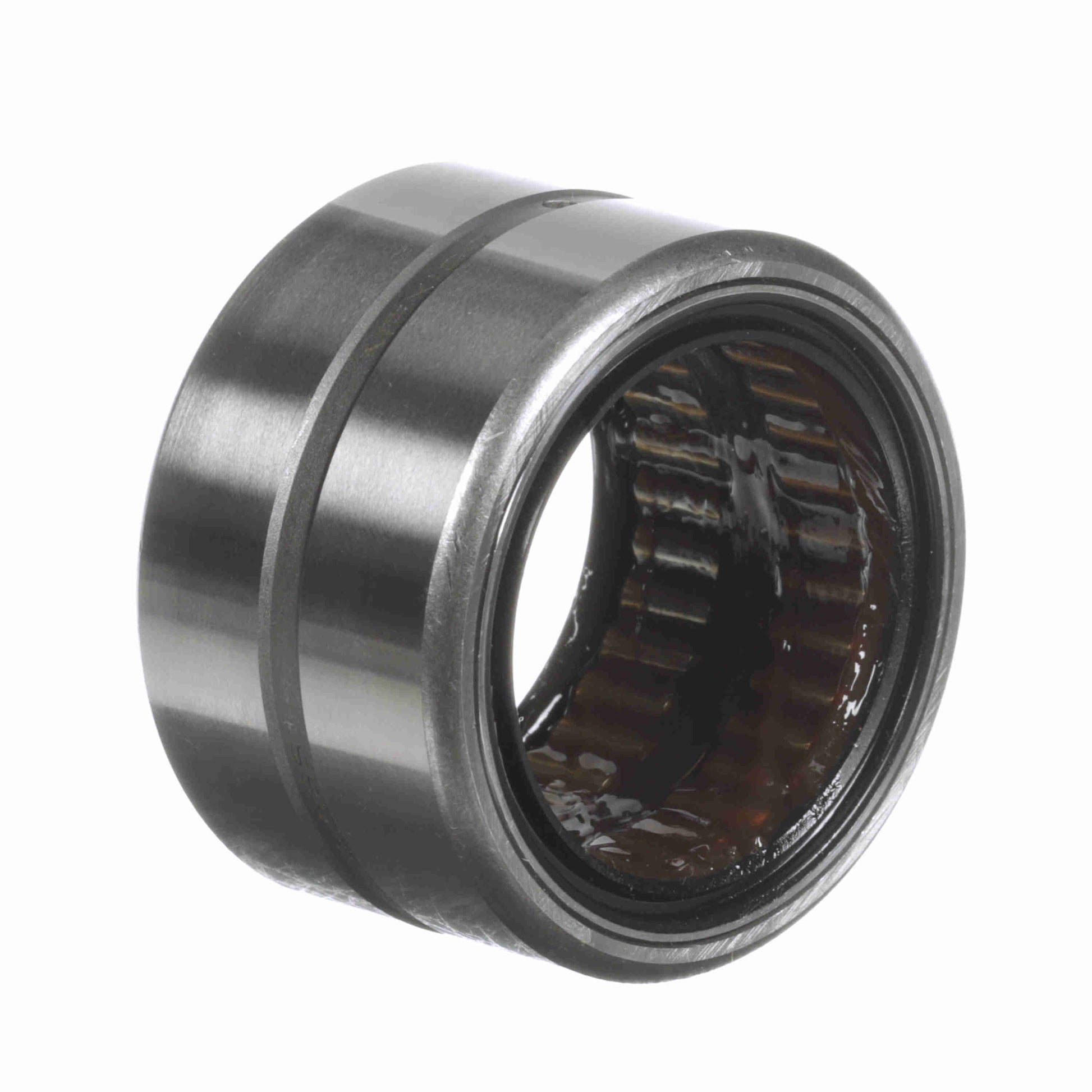

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 24 RSS
General Specifications
| UPC: | 726166062071 | Weight: | 0.43 LB |
| Packaged Length: | 2.31 Inches | Packaged Width: | 1.56 Inches |
| Packaged Height: | 2.31 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Hole Diameter: | 0.094 |
| Housing & Shaft Fillet (in): | 0.06 in | Outside Diameter - Inch: | 2.0625 in |
| Bore Size - Inch: | 1.5000 in |
Technical Specifications
| Includes Inner Ring: | No | Material: | 52100 Bearing Steel |
| Series: | Standard | Cage Material: | No retainer |
| Misalignment: | No | Number of Rows: | 1 |
| Radial Clearance: | Normal | Bore Type: | Straight |
| Rolling Element: | Needle Roller | Seal Type: | Rubber Lip |
| Sealed: | Sealed - Both Sides | Duplexing: | No |
| Platform: | Guiderol Bearing | Speed (Max) Grease: | 2,550 |
| Full Complement/Caged: | Full Complement | Static Load Rating (lb): | 20,200 lb |
| Dynamic Load Rating: | 7,150 | Operating Temperature Range: | -20 to 250 °F |
| Lubrication Hole Type: | Lubrication Groove & Hole | Standard Met: | ABMA, ISO |
| Flanges: | No Flanges | Related Inner Ring: | MI 20 |
| Precision Rating: | RBEC-1 | Enclosure: | Sealed Both Sides |
| Component Type: | Outer race only | Separable: | Nonseparable |
| Retainer: | No |
