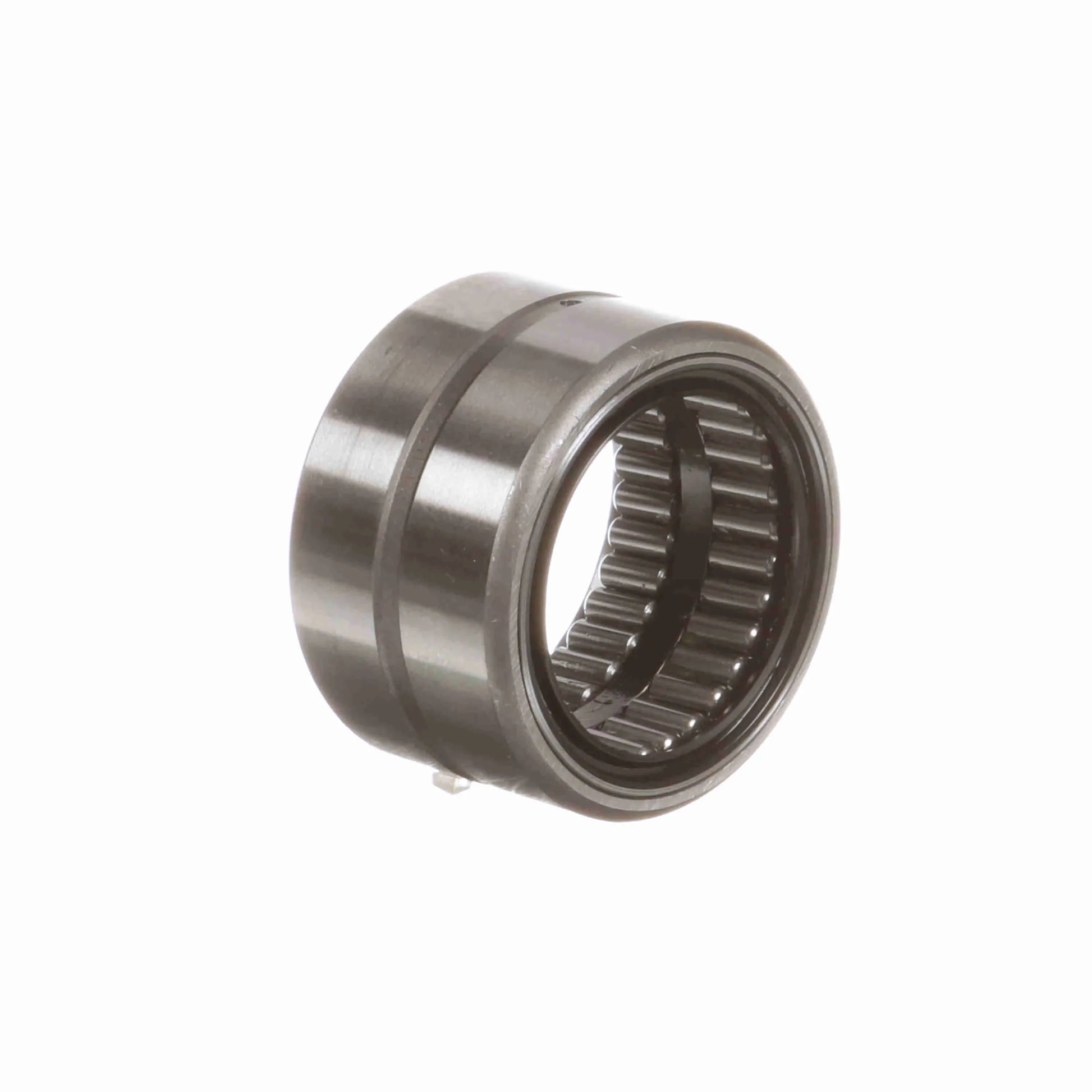

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 24 RS
General Specifications
| UPC: | 726166062064 | Weight: | 0.47 LB |
| Packaged Length: | 2.31 Inches | Packaged Width: | 1.56 Inches |
| Packaged Height: | 2.31 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Hole Diameter: | 0.094 |
| Outside Diameter - Inch: | 2.0625 in | Housing & Shaft Fillet (in): | 0.06 in |
| Bore Size - Inch: | 1.5000 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Includes Inner Ring: | No |
| Series: | Standard | Cage Material: | No retainer |
| Rolling Element: | Needle Roller | Number of Rows: | 1 |
| Radial Clearance: | Normal | Bore Type: | Straight |
| Seal Type: | Rubber Lip | Misalignment: | No |
| Full Complement/Caged: | Full Complement | Speed (Max) Grease: | 2,550 |
| Static Load Rating (lb): | 20,200 lb | Sealed: | Sealed - One Side |
| Duplexing: | No | Platform: | Guiderol Bearing |
| Dynamic Load Rating: | 7,150 | Precision Rating: | RBEC-1 |
| Flanges: | No Flanges | Lubrication Hole Type: | Lubrication Groove & Hole |
| Related Inner Ring: | MI 20 | Operating Temperature Range: | -20 to 250 °F |
| Standard Met: | ABMA, ISO | Separable: | Nonseparable |
| Enclosure: | Sealed One Side | Component Type: | Outer race only |
| Retainer: | No |
