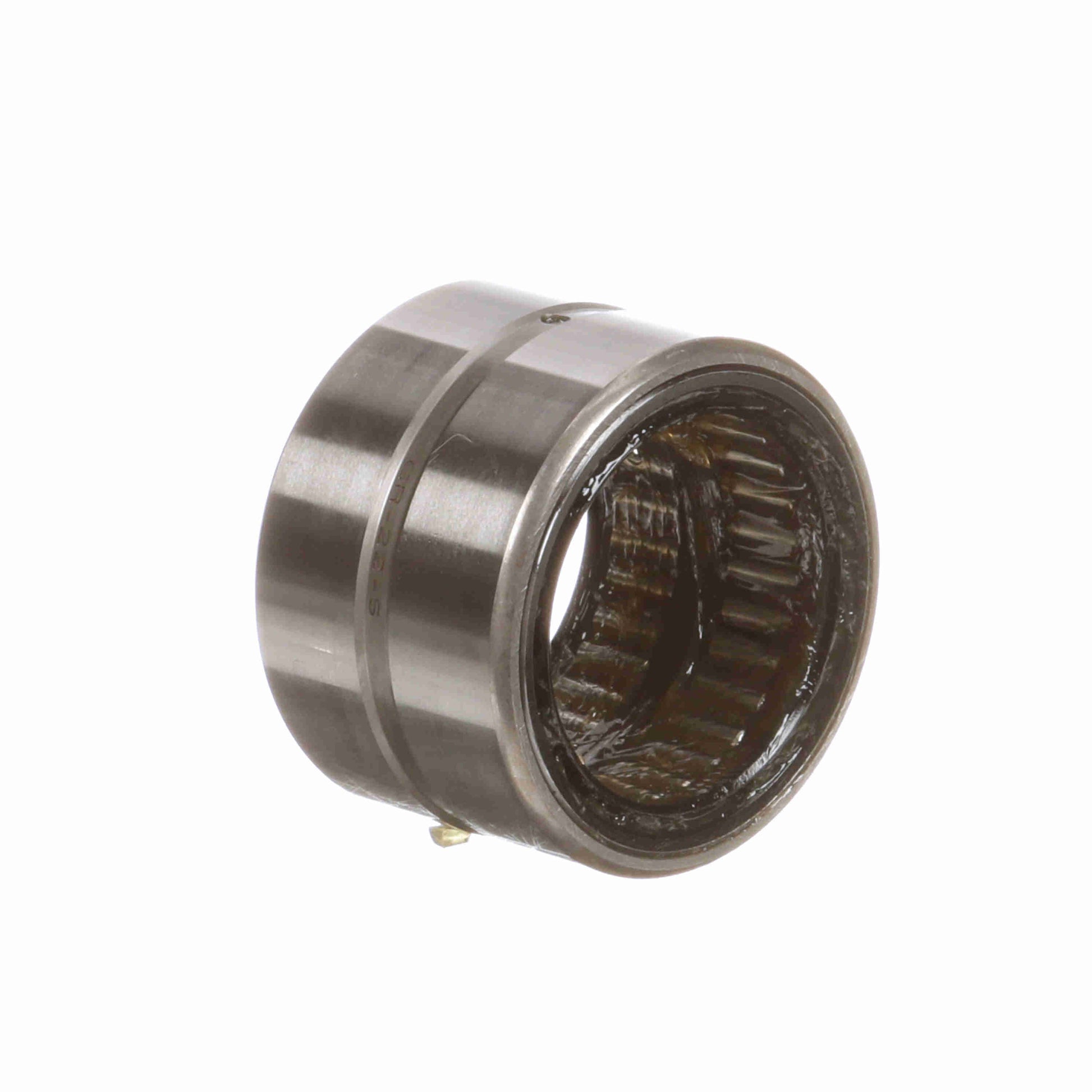

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 22 RSS
General Specifications
| UPC: | 726166061975 | Weight: | 0.36 LB |
| Packaged Length: | 2.2 Inches | Packaged Width: | 1.9 Inches |
| Packaged Height: | 1.4 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Housing & Shaft Fillet (in): | 0.04 in |
| Bore Size - Inch: | 1.3750 in | Hole Diameter: | 0.094 |
| Outside Diameter - Inch: | 1.875 in |
Technical Specifications
| Series: | Standard | Material: | 52100 Bearing Steel |
| Includes Inner Ring: | No | Cage Material: | No retainer |
| Misalignment: | No | Radial Clearance: | Normal |
| Bore Type: | Straight | Rolling Element: | Needle Roller |
| Seal Type: | Rubber Lip | Number of Rows: | 1 |
| Duplexing: | No | Dynamic Load Rating: | 7,100 |
| Static Load Rating (lb): | 18,600 lb | Platform: | Guiderol Bearing |
| Sealed: | Sealed - Both Sides | Speed (Max) Grease: | 2,800 |
| Full Complement/Caged: | Full Complement | Lubrication Hole Type: | Lubrication Groove & Hole |
| Standard Met: | ABMA, ISO | Operating Temperature Range: | -20 to 250 °F |
| Precision Rating: | RBEC-1 | Related Inner Ring: | MI 18 |
| Flanges: | No Flanges | Separable: | Nonseparable |
| Enclosure: | Sealed Both Sides | Component Type: | Outer race only |
| Retainer: | No |
