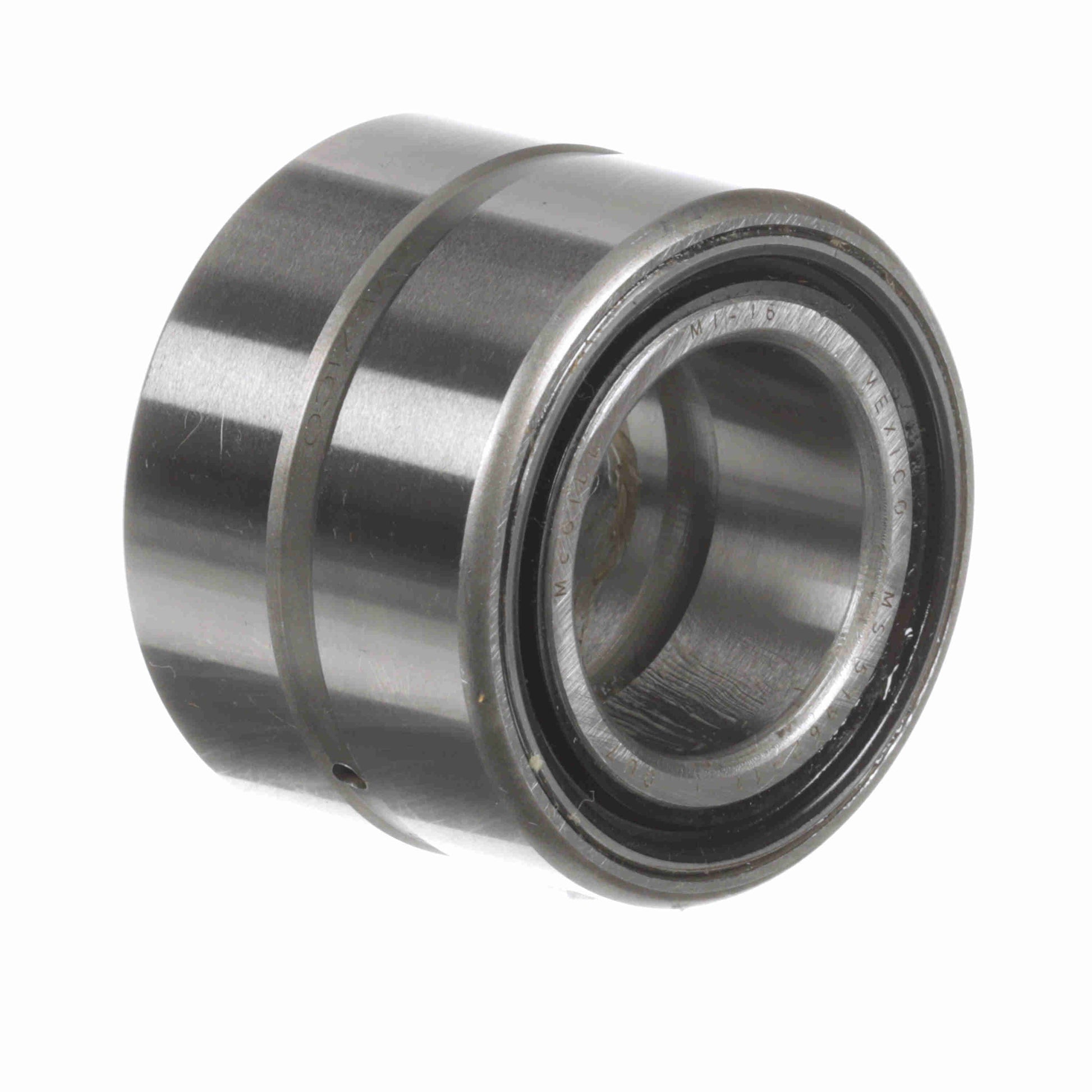

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 20 RSS/MI 16
General Specifications
| UPC: | 726166061869 | Weight: | 0.46 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Inner Width: | 1.26 | Outer Width: | 1.25 |
| Bore Size - Inch: | 1 in | Hole Diameter: | 0.094 |
| Outside Diameter - Inch: | 1.75 in | Housing & Shaft Fillet (in): | 0.04 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Includes Inner Ring: | Yes |
| Series: | Standard | Cage Material: | No retainer |
| Rolling Element: | Needle Roller | Number of Rows: | 1 |
| Radial Clearance: | Normal | Misalignment: | No |
| Seal Type: | Rubber Lip | Bore Type: | Straight |
| Duplexing: | No | Platform: | Guiderol Bearing |
| Full Complement/Caged: | Full Complement | Static Load Rating (lb): | 17,000 lb |
| Speed (Max) Grease: | 3,050 | Sealed: | Sealed - Both Sides |
| Dynamic Load Rating: | 6,500 | Precision Rating: | Not Rated |
| Operating Temperature Range: | -20F to 250 °F | Lubrication Hole Type: | Lubrication Groove & Hole |
| Standard Met: | ABMA;ISO | Enclosure: | Sealed Both Sides |
| Separable: | Inner ring - both sides | Component Type: | Outer race only |
| Retainer: | No |
