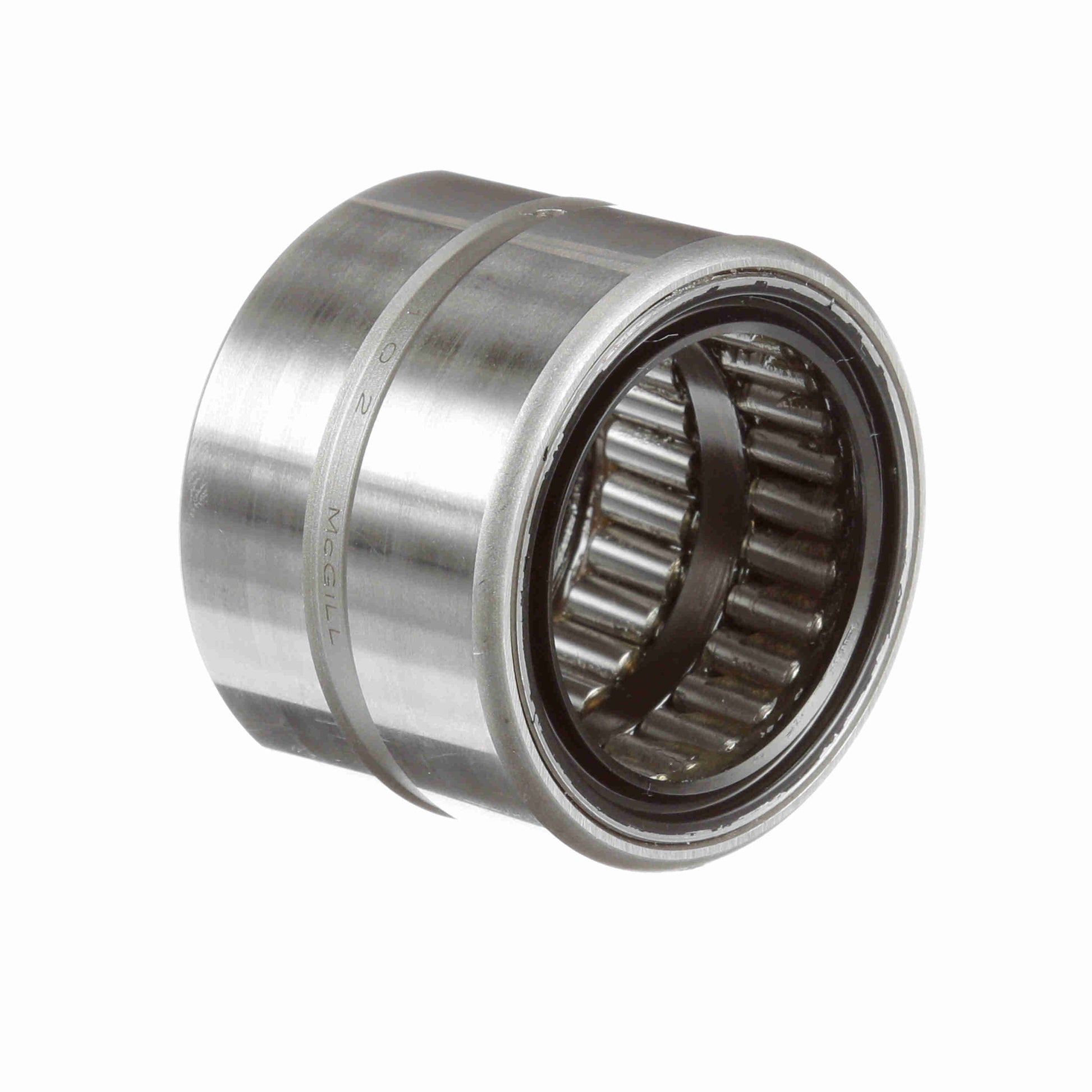

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (with inner) - Sealed - GR 20 RSS
General Specifications
| UPC: | 726166061845 | Weight: | 0.31 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Outside Diameter - Inch: | 1.75 in |
| Housing & Shaft Fillet (in): | 0.04 in | Hole Diameter: | 0.094 |
| Bore Size - Inch: | 1.2500 in |
Technical Specifications
| Includes Inner Ring: | No | Series: | Standard |
| Material: | 52100 Bearing Steel | Cage Material: | No retainer |
| Rolling Element: | Needle Roller | Number of Rows: | 1 |
| Radial Clearance: | Normal | Misalignment: | No |
| Seal Type: | Rubber Lip | Bore Type: | Straight |
| Duplexing: | No | Sealed: | Sealed - Both Sides |
| Speed (Max) Oil: | 3,050 | Dynamic Load Rating: | 6,500 |
| Static Load Rating (lb): | 17,000 lb | Speed (Max) Grease: | 1,500 |
| Platform: | Guiderol Bearing | Full Complement/Caged: | Full Complement |
| Related Inner Ring: | MI 16 | Lubrication Hole Type: | Lubrication groove and hole |
| Flanges: | No flange | Operating Temperature Range: | -20 to 250 °F |
| Precision Rating: | RBEC-1 | Enclosure: | Sealed Both Sides |
| Component Type: | Outer race only | Separable: | Nonseparable |
| Retainer: | No |
