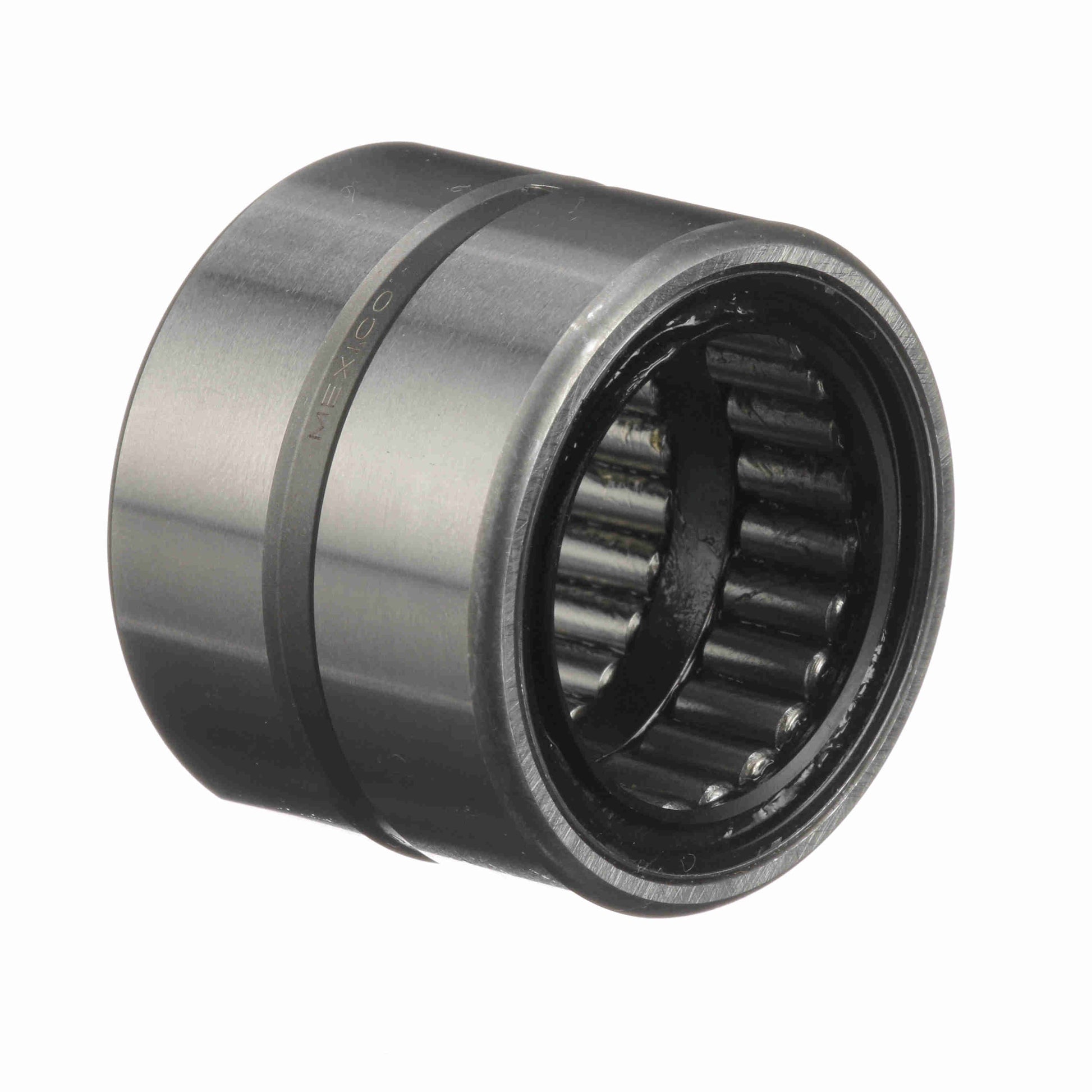

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 18 RSS
General Specifications
| UPC: | 726166061739 | Weight: | 0.72 LB |
| Packaged Length: | 1.6 Inches | Packaged Width: | 1.7 Inches |
| Packaged Height: | 2.3 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Bore Size - Inch: | 1.1250 in |
| Housing & Shaft Fillet (in): | 0.04 in | Outside Diameter - Inch: | 1.625 in |
| Hole Diameter: | 0.094 |
Technical Specifications
| Series: | Standard | Material: | 52100 Bearing Steel |
| Includes Inner Ring: | No | Cage Material: | No retainer |
| Bore Type: | Straight | Seal Type: | Rubber Lip |
| Misalignment: | No | Radial Clearance: | Normal |
| Number of Rows: | 1 | Rolling Element: | Needle Roller |
| Duplexing: | No | Sealed: | Sealed - Both Sides |
| Dynamic Load Rating: | 6,250 | Speed (Max) Oil: | 3,400 |
| Speed (Max) Grease: | 1,700 | Full Complement/Caged: | Full Complement |
| Platform: | Guiderol Bearing | Static Load Rating (lb): | 15,200 lb |
| Flanges: | No flange | Operating Temperature Range: | -20 to 250 °F |
| Related Inner Ring: | MI 14 | Lubrication Hole Type: | Lubrication groove and hole |
| Precision Rating: | RBEC-1 | Component Type: | Outer race only |
| Enclosure: | Sealed Both Sides | Separable: | Nonseparable |
| Retainer: | No |
