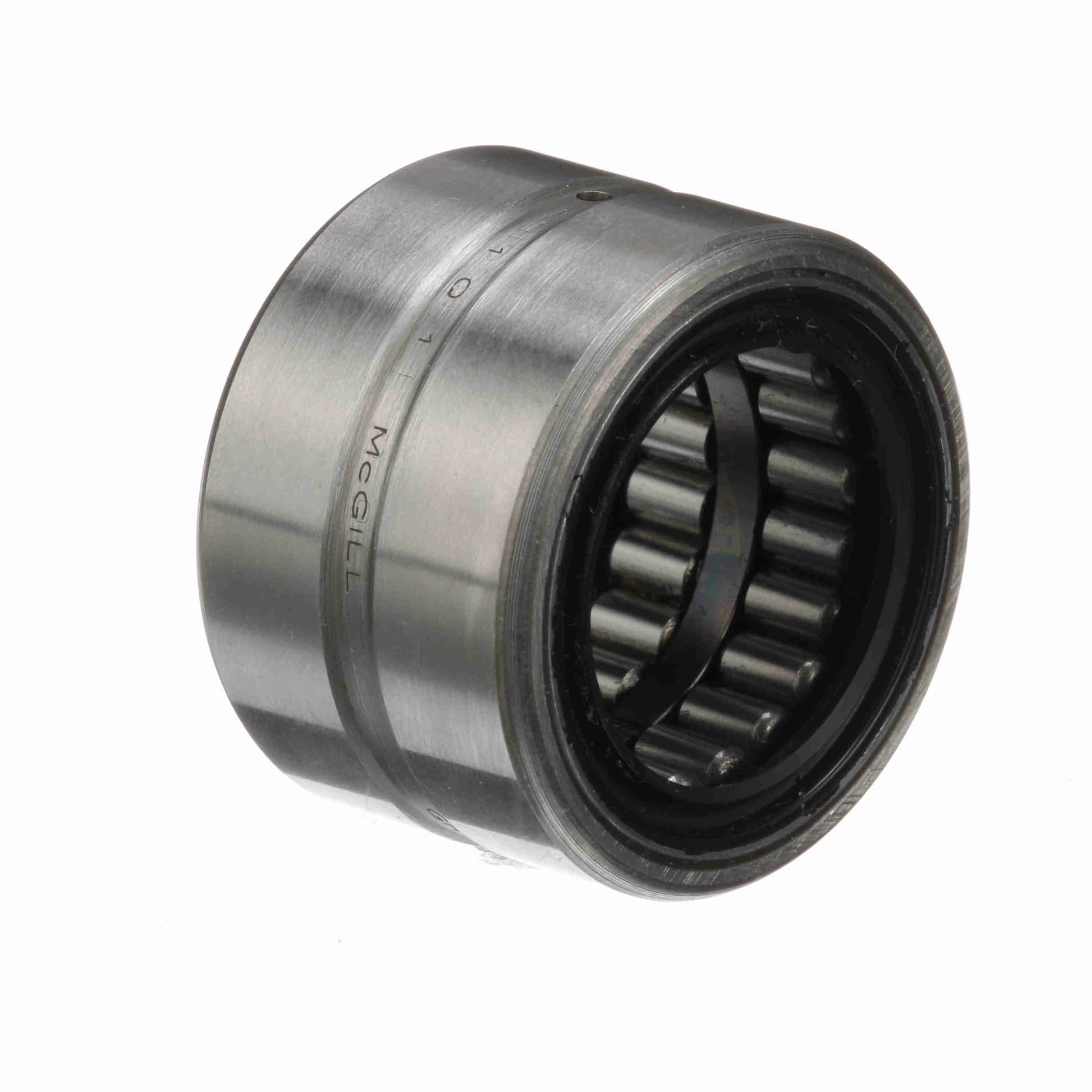

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 16 RSS
General Specifications
| UPC: | 726166061630 | Weight: | 0.62 LB |
| Packaged Length: | 1.6 Inches | Packaged Width: | 1.4 Inches |
| Packaged Height: | 2.3 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Bore Size - Inch: | 1 in |
| Housing & Shaft Fillet (in): | 0.04 in | Hole Diameter: | 0.079 |
| Outside Diameter - Inch: | 1.5 in |
Technical Specifications
| Series: | Standard | Includes Inner Ring: | No |
| Material: | 52100 Bearing Steel | Cage Material: | No retainer |
| Number of Rows: | 1 | Bore Type: | Straight |
| Rolling Element: | Needle Roller | Misalignment: | No |
| Seal Type: | Rubber Lip | Radial Clearance: | Normal |
| Platform: | Guiderol Bearing | Duplexing: | No |
| Dynamic Load Rating: | 4,350 | Sealed: | Sealed - Both Sides |
| Full Complement/Caged: | Full Complement | Speed (Max) Oil: | 3,800 |
| Speed (Max) Grease: | 1,900 | Static Load Rating (lb): | 9,600 lb |
| Precision Rating: | RBEC-1 | Operating Temperature Range: | -20 to 250 °F |
| Lubrication Hole Type: | Lubrication groove and hole | Related Inner Ring: | MI 12 |
| Flanges: | No flange | Component Type: | Outer race only |
| Enclosure: | Sealed Both Sides | Separable: | Nonseparable |
| Retainer: | No |
