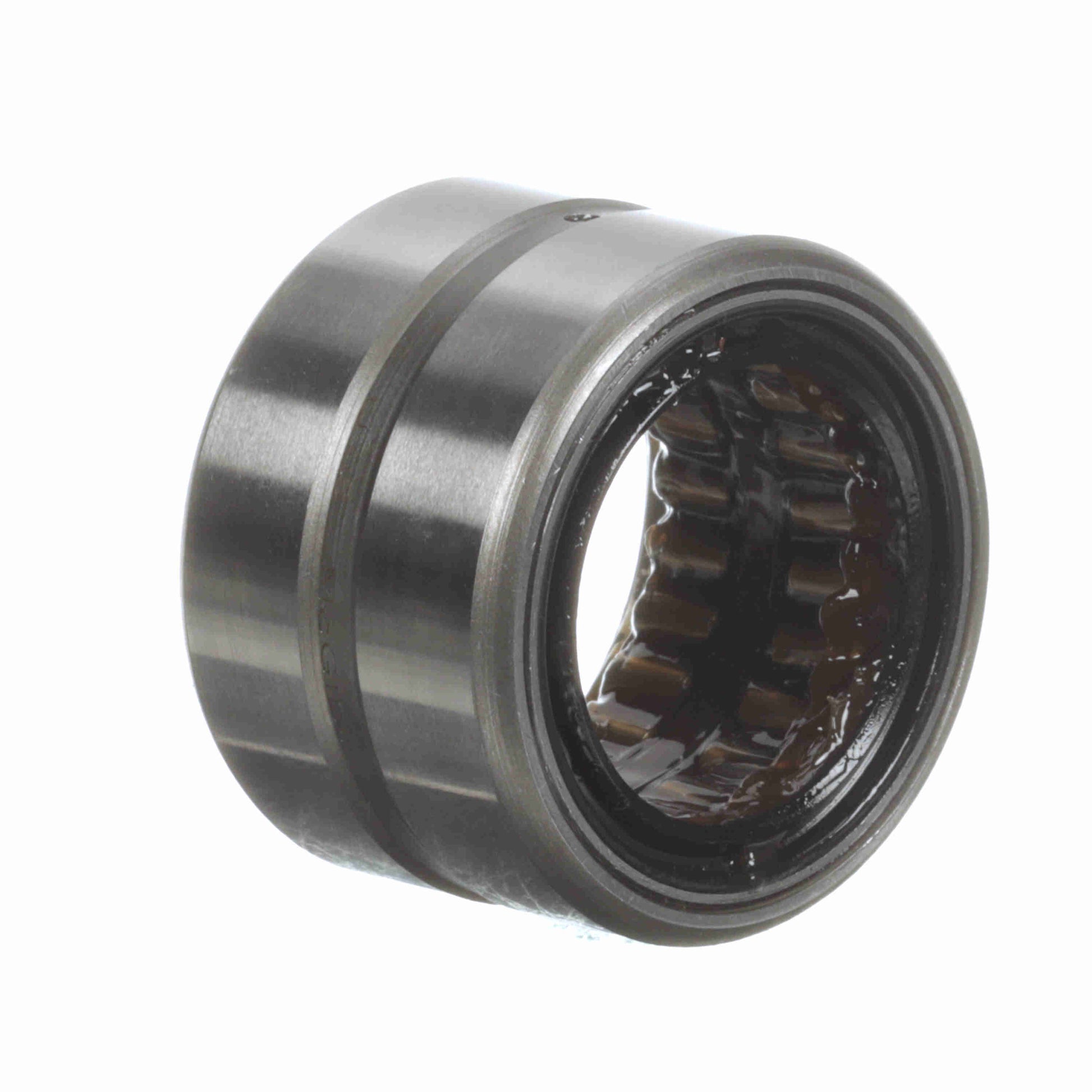

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 16 RS
General Specifications
| UPC: | 726166061623 | Weight: | 0.19 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Hole Diameter: | 0.079 |
| Outside Diameter - Inch: | 1.5 in | Housing & Shaft Fillet (in): | 0.04 in |
| Bore Size - Inch: | 1 in |
Technical Specifications
| Series: | Standard | Material: | 52100 Bearing Steel |
| Includes Inner Ring: | No | Cage Material: | No retainer |
| Rolling Element: | Needle Roller | Misalignment: | No |
| Number of Rows: | 1 | Radial Clearance: | Normal |
| Bore Type: | Straight | Seal Type: | Rubber Lip |
| Sealed: | Sealed - One Side | Full Complement/Caged: | Full Complement |
| Duplexing: | No | Speed (Max) Grease: | 3,800 |
| Static Load Rating (lb): | 9,600 lb | Dynamic Load Rating: | 4,350 |
| Platform: | Guiderol Bearing | Related Inner Ring: | MI 12 |
| Operating Temperature Range: | -20 to 250 °F | Lubrication Hole Type: | Lubrication Groove & Hole |
| Flanges: | No Flanges | Precision Rating: | RBEC-1 |
| Standard Met: | ABMA, ISO | Enclosure: | Sealed One Side |
| Separable: | Nonseparable | Component Type: | Outer race only |
| Retainer: | No |
