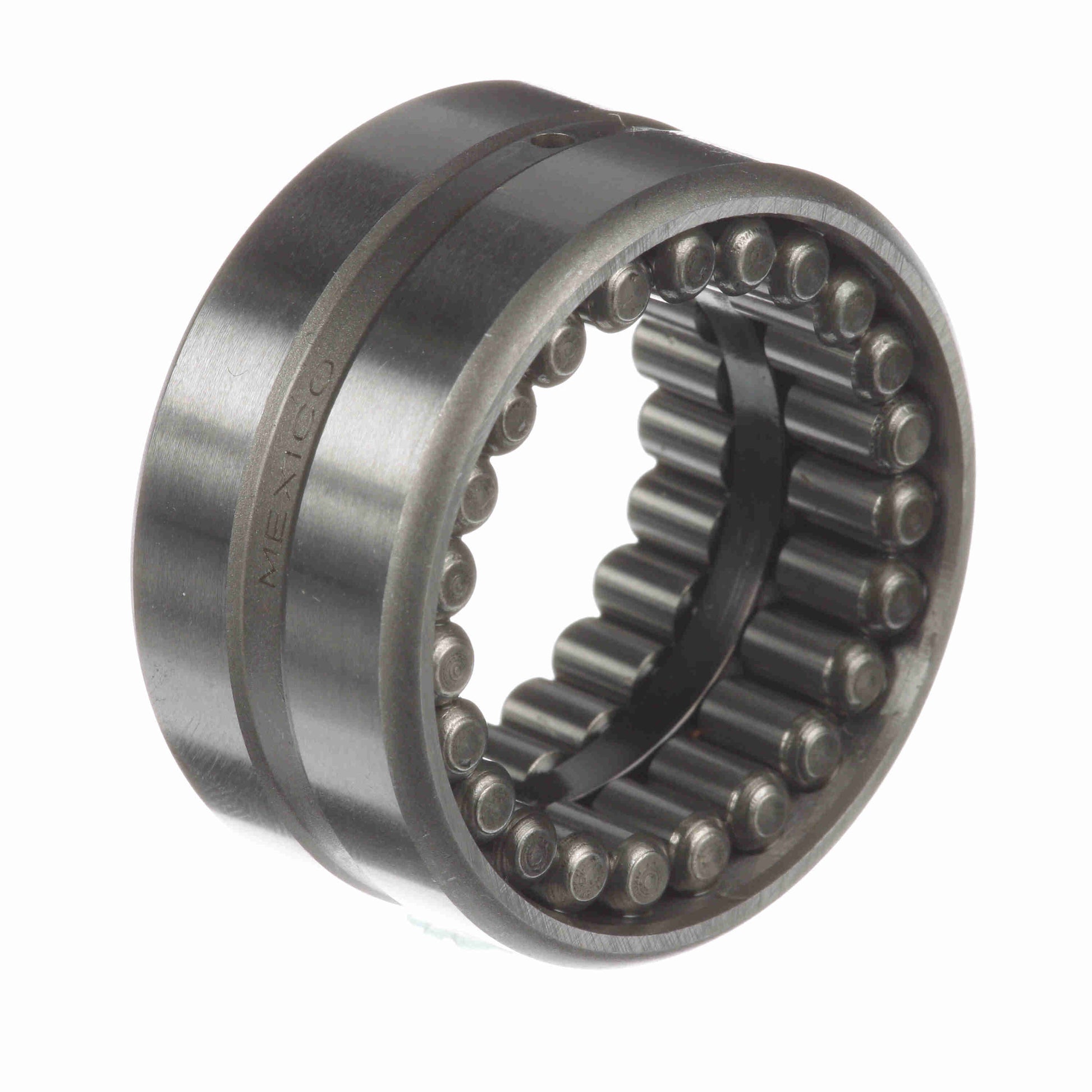

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - GR 16 N
General Specifications
| UPC: | 726166061654 | Weight: | 0.17 LB |
| Packaged Length: | 1.8 Inches | Packaged Width: | 1.7 Inches |
| Packaged Height: | 1.1 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 0.75 | Housing & Shaft Fillet (in): | 0.04 in |
| Hole Diameter: | 0.079 | Outside Diameter - Inch: | 1.5 in |
| Bore Size - Inch: | 1 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Includes Inner Ring: | No |
| Series: | Narrow | Cage Material: | No retainer |
| Radial Clearance: | Normal | Number of Rows: | 1 |
| Bore Type: | Straight | Rolling Element: | Needle Roller |
| Seal Type: | Unsealed | Misalignment: | No |
| Dynamic Load Rating: | 4,350 | Sealed: | None |
| Speed (Max) Grease: | 3,000 | Platform: | Guiderol Bearing |
| Static Load Rating (lb): | 9,600 lb | Speed (Max) Oil: | 6,000 |
| Duplexing: | No | Full Complement/Caged: | Full Complement |
| Operating Temperature Range: | -20 to 250 °F | Flanges: | No Flanges |
| Precision Rating: | RBEC-1 | Lubrication Hole Type: | Lubrication Groove & Hole |
| Standard Met: | ABMA, ISO | Related Inner Ring: | MI 12 N, MI 13 N |
| Component Type: | Outer race only | Enclosure: | Open |
| Separable: | Nonseparable | Retainer: | No |
