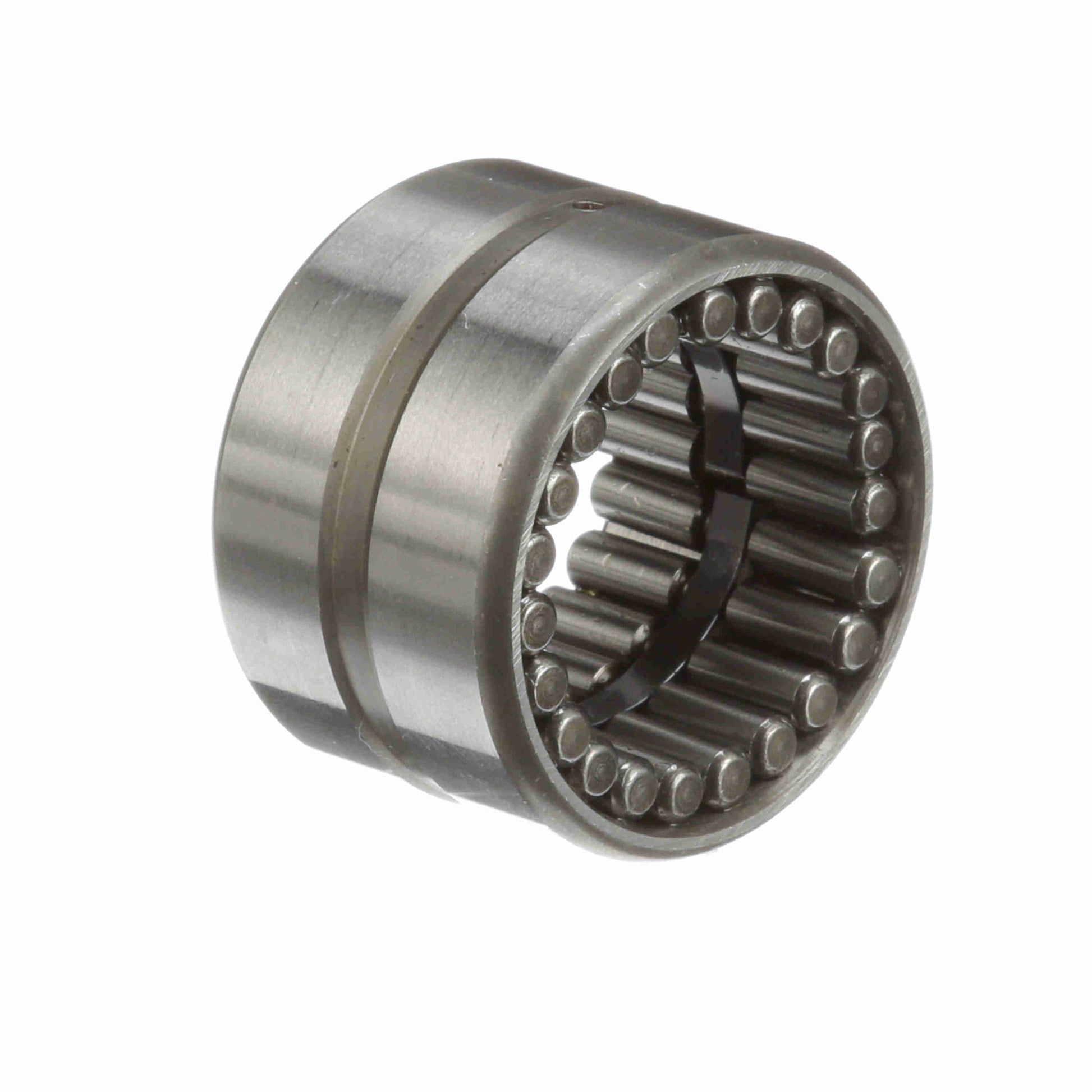

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - GR 16
General Specifications
| UPC: | 726166061562 | Weight: | 0.24 LB |
| Packaged Length: | 1.8 Inches | Packaged Width: | 1.3 Inches |
| Packaged Height: | 2.2 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Outside Diameter - Inch: | 1.5 in |
| Bore Size - Inch: | 1 in | Housing & Shaft Fillet (in): | 0.04 in |
| Hole Diameter: | 0.079 |
Technical Specifications
| Series: | Standard | Material: | 52100 Bearing Steel |
| Includes Inner Ring: | No | Cage Material: | No retainer |
| Bore Type: | Straight | Rolling Element: | Needle Roller |
| Misalignment: | No | Seal Type: | Unsealed |
| Radial Clearance: | Normal | Number of Rows: | 1 |
| Duplexing: | No | Static Load Rating (lb): | 14,500 lb |
| Platform: | Guiderol Bearing | Speed (Max) Oil: | 6,000 |
| Speed (Max) Grease: | 3,000 | Sealed: | None |
| Full Complement/Caged: | Full Complement | Dynamic Load Rating: | 6,050 |
| Related Inner Ring: | MI 13 | Precision Rating: | RBEC-1 |
| Lubrication Hole Type: | Lubrication groove and hole | Operating Temperature Range: | -20 to 250 °F |
| Flanges: | No flange | Separable: | Nonseparable |
| Enclosure: | Open | Component Type: | Outer race only |
| Retainer: | No |
