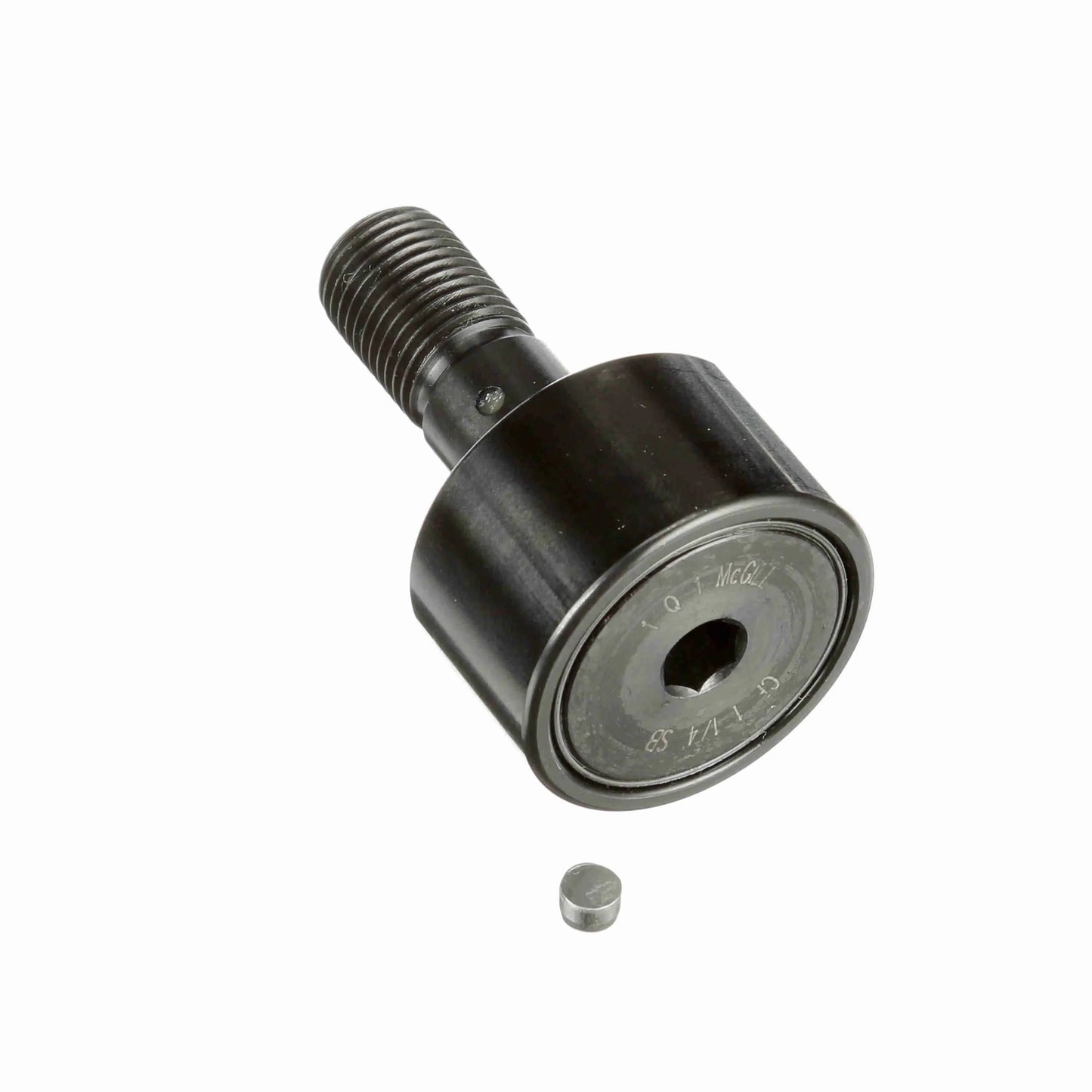

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Inch Cam Follower - Stud Mount Roller - Hex Hole - Sealed - CF 1 1/4 SB
General Specifications
| UPC: | 726166034399 | Weight: | 0.30 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Threads: | 1/2-20 | Oil Hole Diameter - Inch: | 0.094 |
| Roller Diameter - Inch: | 1.25 | Oil Hole Center - Inch: | 0.313 |
| Roller Width - Inch: | 0.75 | Hex Socket - Inch: | 0.25 |
| Lubrication Fitting Size - Metric: | 0.1875 | Minimum Thread Length: | 0.625 |
| Lubrication Fitting Size - Inch: | 0.1875 | Stud Length - Inch: | 1.25 |
| Stud Diameter - Inch: | 0.5 |
Technical Specifications
| Rolling Element: | Needle Roller - Full Complement | O.D. Configuration: | Cylindrical |
| Sealing: | Sealed | Dynamic Radial Rating: | 3,930 |
| Limiting Speed: | 3,100 | Hex/Slot: | Hex Hole |
| Adjustment: | None | Relubricatable: | Yes |
| Material: | Bearing Steel, Black Oxide Finish | Clamping Torque - in-lbf: | 350 |
| Tolerance Class: | P0 Equivalent | Platform: | CAMROL® |
| Roller Shape: | Cylindrical | Dynamic Load Rating - lb: | 3,930 |
| Static Load Rating: | 2,300 | Stud Type: | Standard Stud |
