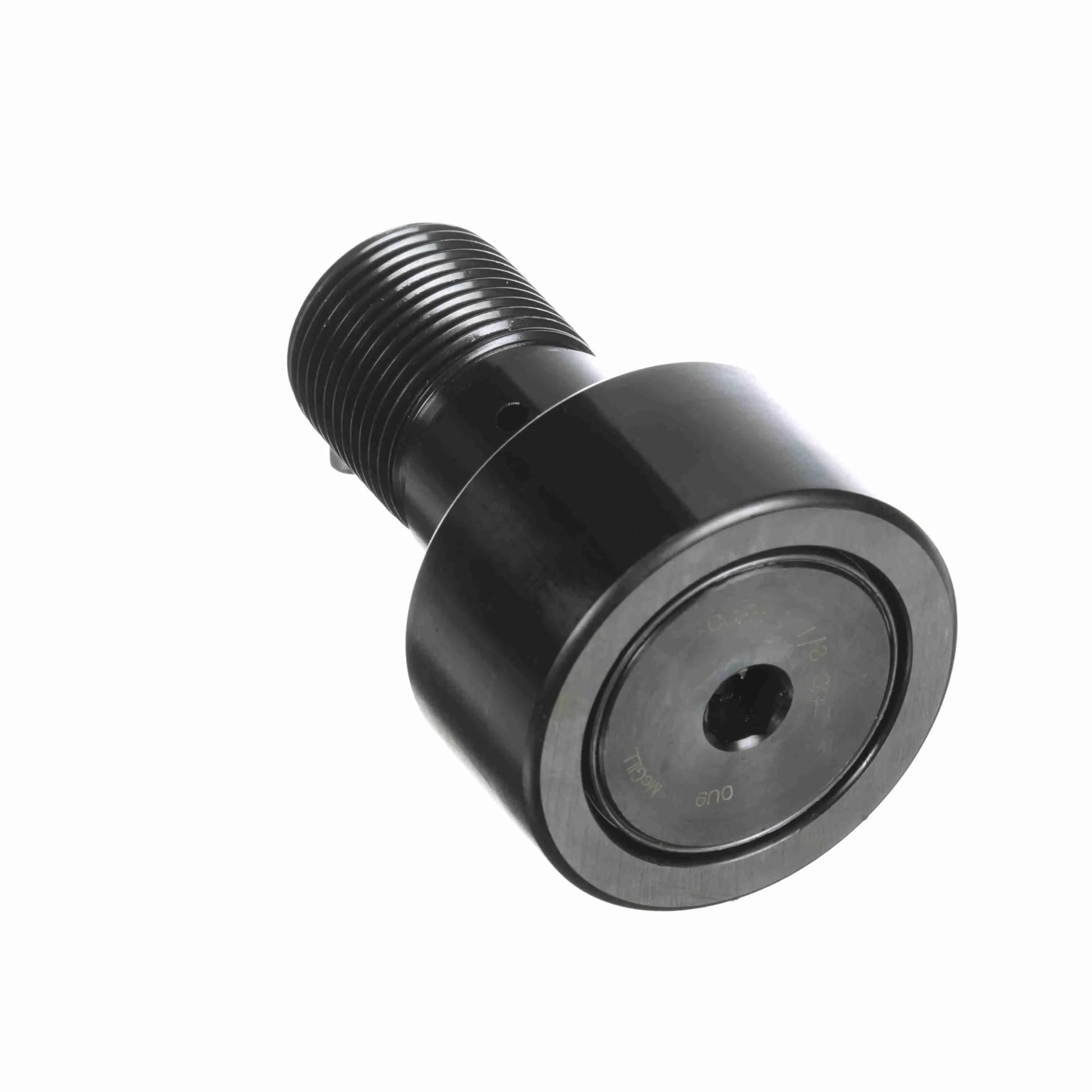

รายละเอียด ตลับลูกปืน McGill Heavy Stud CAMROL® Crowned Inch Cam Follower - Stud Mount Roller - Hex Hole - Sealed - CCFH 1 7/8 SB
General Specifications
| UPC: | 726166037123 | Weight: | 1.04 LB |
| Packaged Length: | 2 Inches | Packaged Width: | 2 Inches |
| Packaged Height: | 2.87 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Threads: | 1-14 | Lubrication Fitting Size - Inch: | 3/16 |
| Roller Diameter - Inch: | 1.875 | Stud Diameter - Inch: | 1 |
| Roller Width - Inch: | 1 | Lubrication Fitting Size - Metric: | 3/16 |
| Minimum Thread Length - Inch: | 0.875 | Stud Length - Inch: | 1.75 |
| Oil Hole Diameter - Inch: | 0.094 | Oil Hole Center - Inch: | 0.438 |
Technical Specifications
| Limiting Speed: | 2,000 | Rolling Element: | Needle Roller - Full Complement |
| Hex/Slot: | Hex Hole | Sealing: | Sealed |
| O.D. Configuration: | Crowned | Adjustment: | None |
| Relubricatable: | No | Material: | Bearing Steel, Black Oxide Finish |
| Static Load Rating: | 14,800 | Clamping Torque - in-lbf: | 2,250 |
| Platform: | CAMROL® | Stud Type: | Heavy Stud |
| Tolerance Class: | P0 Equivalent | Roller Shape: | Crowned |
| Dynamic Load Rating - lb: | 6,385 |
