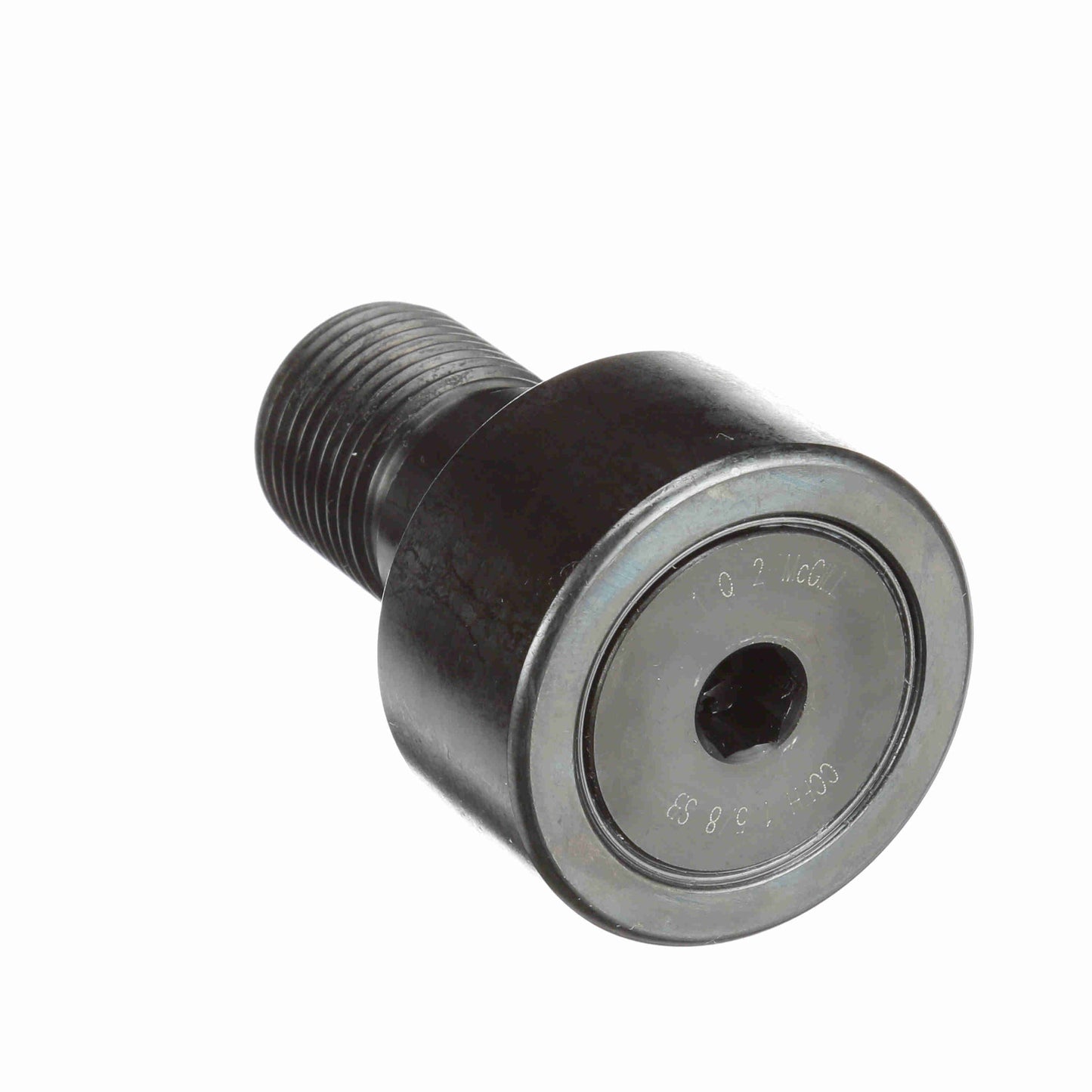

รายละเอียด ตลับลูกปืน McGill Heavy Stud CAMROL® Crowned Inch Cam Follower - Stud Mount Roller - Hex Hole - Sealed - CCFH 1 5/8 SB
General Specifications
| UPC: | 726166036331 | Weight: | 0.69 LB |
| Packaged Length: | 1.68 Inches | Packaged Width: | 1.68 Inches |
| Packaged Height: | 2.62 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Threads: | 7/8-14 | Oil Hole Center - Inch: | 0.375 |
| Stud Diameter - Inch: | 0.875 | Oil Hole Diameter - Inch: | 0.094 |
| Lubrication Fitting Size - Inch: | 3/16 | Minimum Thread Length - Inch: | 0.75 |
| Lubrication Fitting Size - Metric: | 3/16 | Stud Length - Inch: | 1.5 |
| Roller Diameter - Inch: | 1.625 | Roller Width - Inch: | 0.875 |
Technical Specifications
| Hex/Slot: | Hex Hole | Adjustment: | None |
| Rolling Element: | Needle Roller - Full Complement | Sealing: | Sealed |
| Limiting Speed: | 2,350 | O.D. Configuration: | Crowned |
| Relubricatable: | No | Material: | Bearing Steel, Black Oxide Finish |
| Clamping Torque - in-lbf: | 1,500 | Dynamic Load Rating - lb: | 4,840 |
| Stud Type: | Heavy Stud | Platform: | CAMROL® |
| Roller Shape: | Crowned | Static Load Rating: | 11,280 |
| Tolerance Class: | P0 Equivalent | Lubrication Hole Location: | Stud side |
