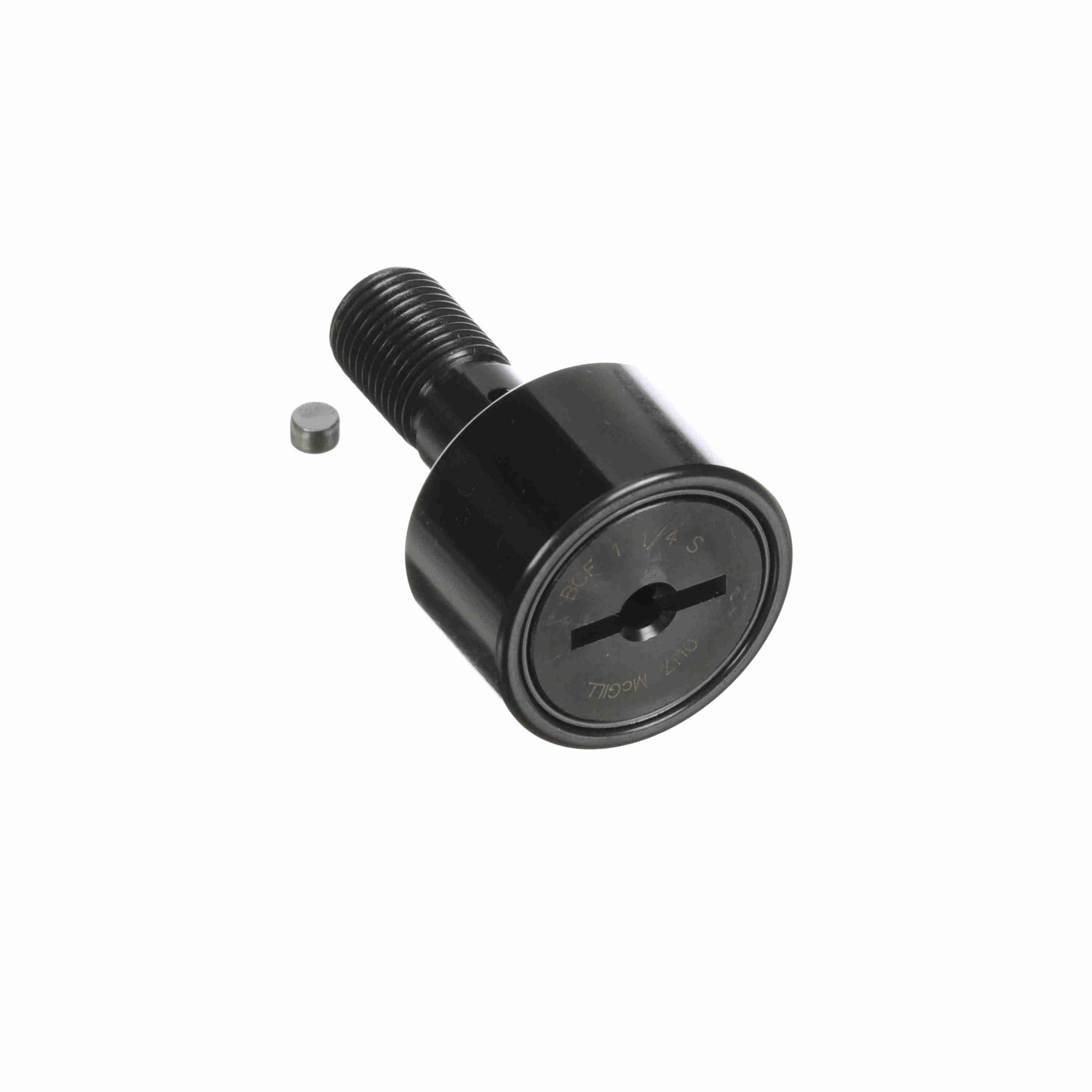

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Cam Follower - Stud Mount Roller - Screwdriver Slot - Sealed - BCF 1 1/4 S
General Specifications
| UPC: | 726166034856 | Weight: | 0.28 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.80.0080 |
| Country of Origin: | Mexico |
Dimensions
| Threads: | 1/2-20 | Roller Width - Inch: | 0.75 |
| Lubrication Fitting Size - Metric: | 0.1875 | Minimum Thread Length: | 0.625 |
| Oil Hole Diameter - Inch: | 0.094 | Lubrication Fitting Size - Inch: | 0.1875 |
| Stud Length - Inch: | 1.25 | Roller Diameter - Inch: | 1.25 |
| Stud Diameter - Inch: | 0.5 | Oil Hole Center - Inch: | 0.313 |
Technical Specifications
| Adjustment: | None | Rolling Element: | Selflube Bushing |
| O.D. Configuration: | Cylindrical | Sealing: | Sealed |
| Hex/Slot: | Screwdriver Slot | Relubricatable: | Yes |
| Material: | Bearing Steel, Black Oxide Finish | Clamping Torque - in-lbf: | 350 |
| Platform: | CAMROL® | Roller Shape: | Cylindrical |
| Stud Type: | Standard Stud | Tolerance Class: | P0 Equivalent |
