• ตลับลูกปืน FAG 30205-A
1 1

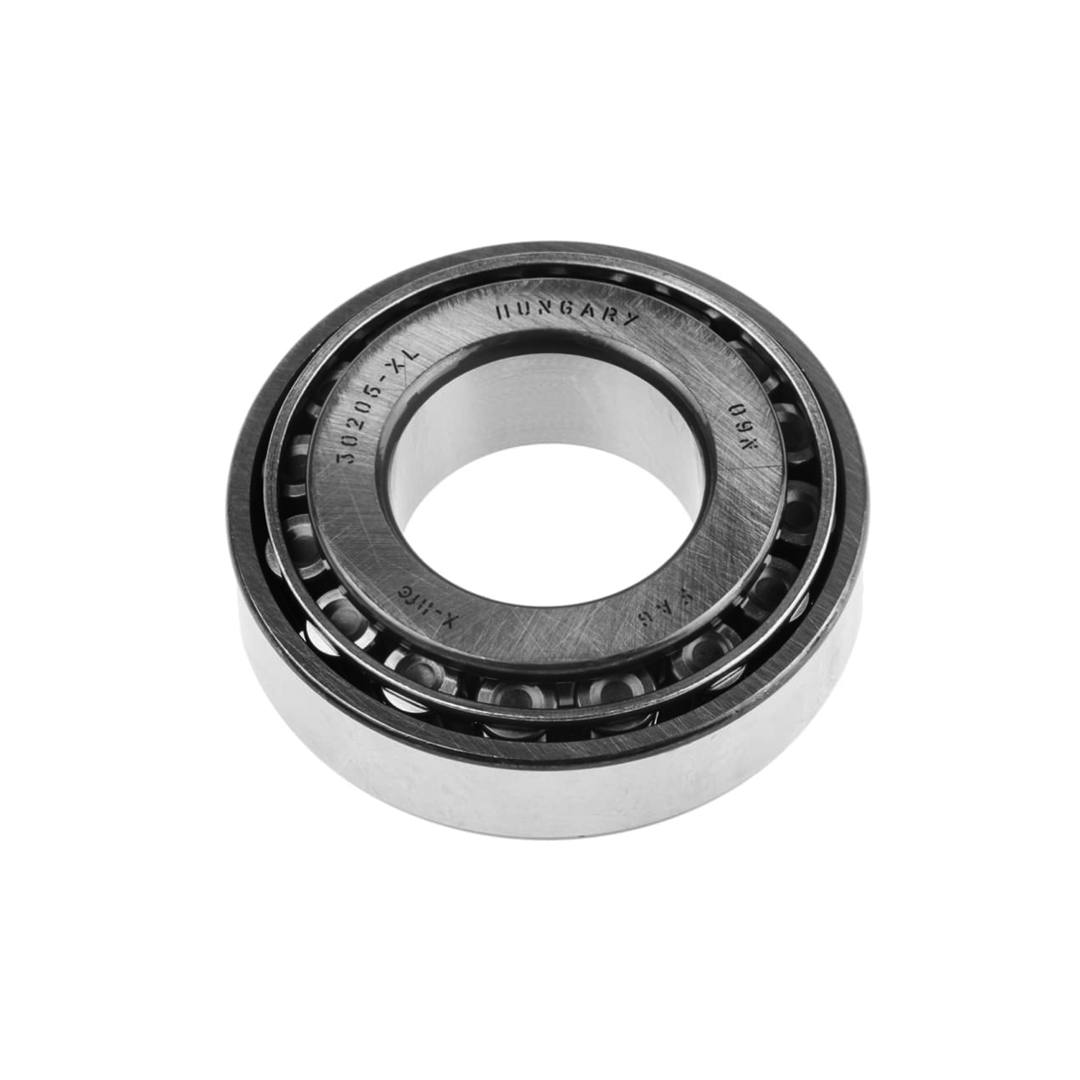

ตลับลูกปืน FAG 30205-A

ตลับลูกปืน FAG 30205-A

FAG

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
804.00 ฿
804.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด ตลับลูกปืน FAG 30205-A

Tapered Roller Bearings


FAG by Schaeffler tapered roller bearings feature a high radial and axial load carrying capacity and a large usable speed range. They are efficient at supporting forces and ensure a precise and rigid shaft guidance system due to the large effective distance between the bearings. They are adjustable, can be dismantled, and are therefore easy to fit.

Features and Benefits


• Increase in dynamic load ratings of up to 20%

• Lower operating costs

• Reduced maintenance due to improved lubrication

• Lower heat generation

• Less noise

• Operating temperature: -30 °C to +120 °C

Product Application Information


Tapered roller bearings can support axial loads from one direction and high radial loads. They are normally axially adjusted against another bearing fitted in a mirror image arrangement.

Suffixes


A - Modified internal construction

X - External dimensions matched to international standards


FAG

Specifications

คุณสมบัติ Value
Inside Diameter 25mm
Outside Diameter 52mm
Roller Bearing Type Taper
Race Width 16.25mm
Bore Type Parallel
Material Steel
Static Load Rating 48000N
Cage Material Steel
Number of Rows 1
Dynamic Load Rating 43500N
End Type Sealed
Reference Speed 7400rpm
Limiting Speed 12400rpm
Maximum Speed - Oil 14900rpm
Maximum Speed - Grease 11200rpm
Fatigue Limit Load 5500N
ดูรายละเอียดทั้งหมด
