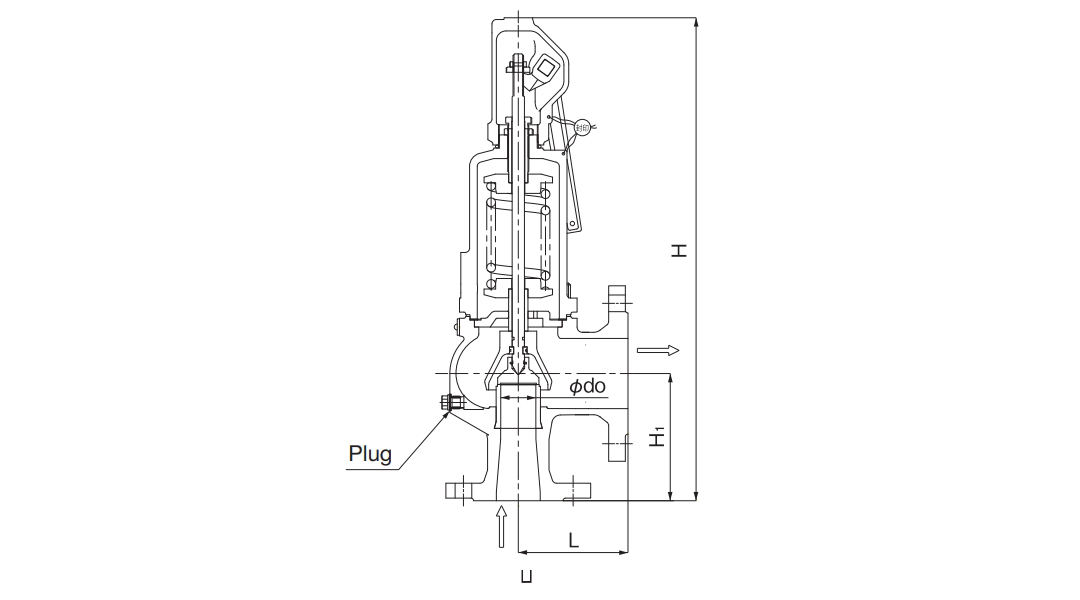

Dimensions
| Size | Dimension (mm) | Flow area (mm 2) | Weight(Kg.) | |||||
|---|---|---|---|---|---|---|---|---|
| d | L | H 1 | H L | H x | D | |||
| 15A | Rc 1/2 | 40 | 40 | 154 | 142 | 16 | 20.1 | 1.0 |
| 20A | Rc 3/4 | 45 | 50 | 173 | 161 | 21 | 34.6 | 1.5 |
| 25A | Rc 1 | 50 | 60 | 193 | 181 | 26 | 53.0 | 1.8 |
| 32A | Rc 1 1/4 | 60 | 70 | 232 | 219 | 33 | 85.5 | 3.1 |
| 40A | Rc 1 1/2 | 65 | 75 | 250 | 237 | 41 | 132.0 | 4.5 |
| 50A | Rc 2 | 80 | 85 | 284 | 271 | 51 | 204.2 | 6.2 |
